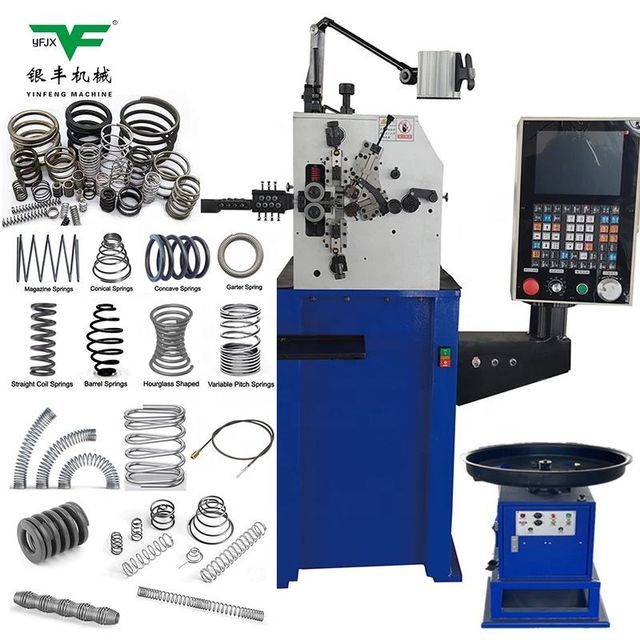

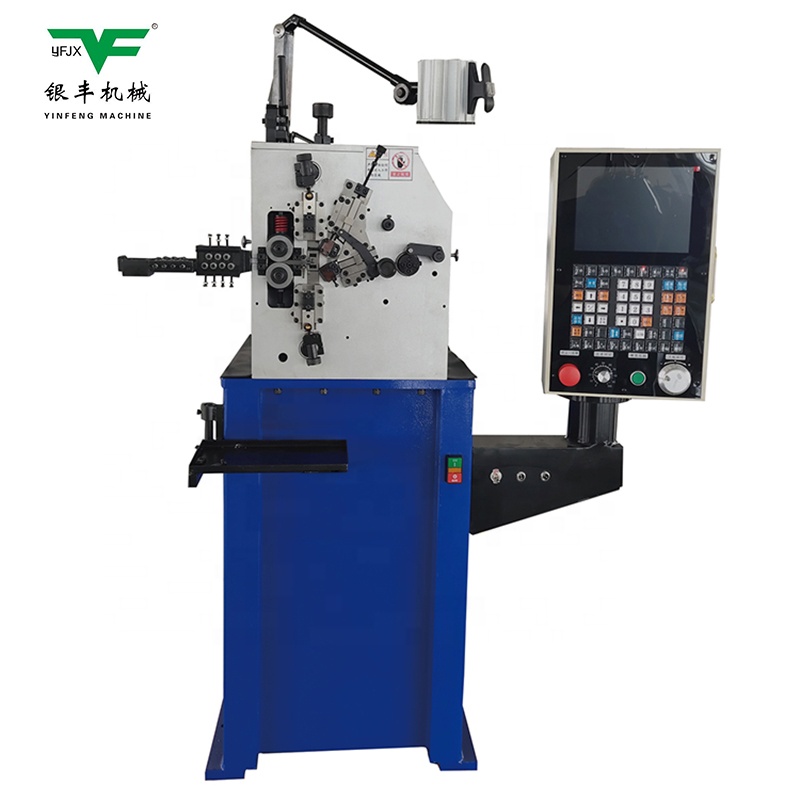

8508 Wire diameter 0.15- 0.8mm coil spring 2-axis machine, mini coil spring machine, small spring machine

Supplier: Zhejiang Yinfeng Automation Technology Co., Ltd.
Region: Lishui, China
Contact: Ms Grace Wong
Price: $999.00 /set
Min. Order: 1 set

Click here to contact

Product details

Main selling points:	automatic	Warranty:	1 year
Cam servo motor:	0.4KW	Wire feeding command value:	±0.01-±9999.99
brand:	Yinfeng	Place of origin:	Zhejiang, China
Cutter servo motor (2:	0.4KW	speed:	Maximum 560 pieces/minute
Video outbound inspection:	if	Health status:	new
Core components:	engine	Supply capacity:	300 sets per month
Mechanical test report:	if	Wire feeding servo motor:	0.75kW
Weight (kg):	400	Applicable industries:	manufacturing plant
port:	Ningbo	Type of machine:	screw machine
payment terms:	Letter of credit, wire transfer	Cam command value:	± 0.1° - ± 359.9°
Cutter servo motor (1):	0.4KW	Core component warranty:	1 year
Coil diameter:	Diameter 0.15-0.8mm	Package preview:
Packaging details:	wooden box	Maximum outer diameter of coil spring:	Maximum 20mm
Showroom location:	not any	Marketing type:	normal product
Pitch axis servo power:	0.4KW

Product Description

Product advantages 1

Can produce multi-axis CNC spring compressors (wire diameter 0.15-12.0mm). This machine has the characteristics of a traditional mechanical spring compressor. Equipped with modern computer-controlled servo system, it is fast and precise.

Product advantage 2

The position of each axis, wire feeding information, production speed, and production quantity are all displayed on the screen. The program information is easy to set and change on the keyboard. The pitch adjustment is convenient and flexible. The outer diameter axis is independent, and the outer diameter size can be easily set and adjusted through the program. The compression spring machine can produce compression springs of any shape without adjusting the mechanical parts. It completely avoids the trouble of replacing cam plates and is easy to adjust.

Product advantage 2

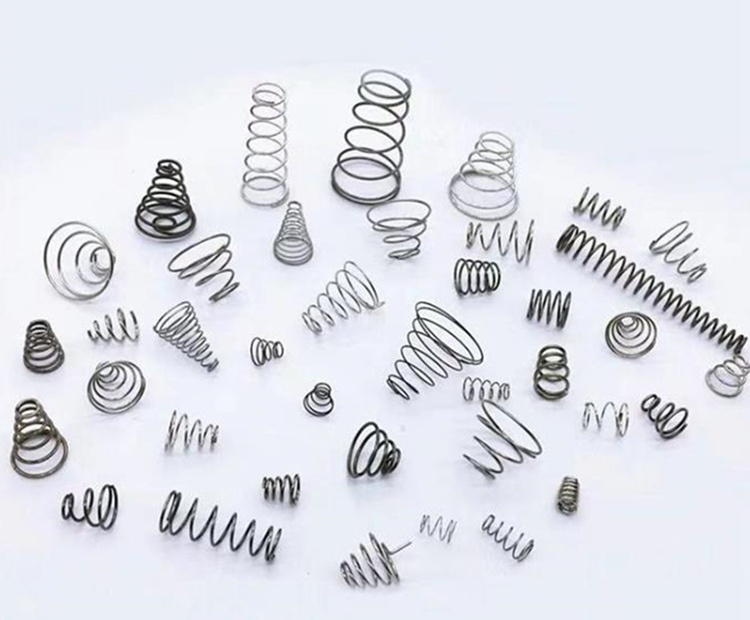

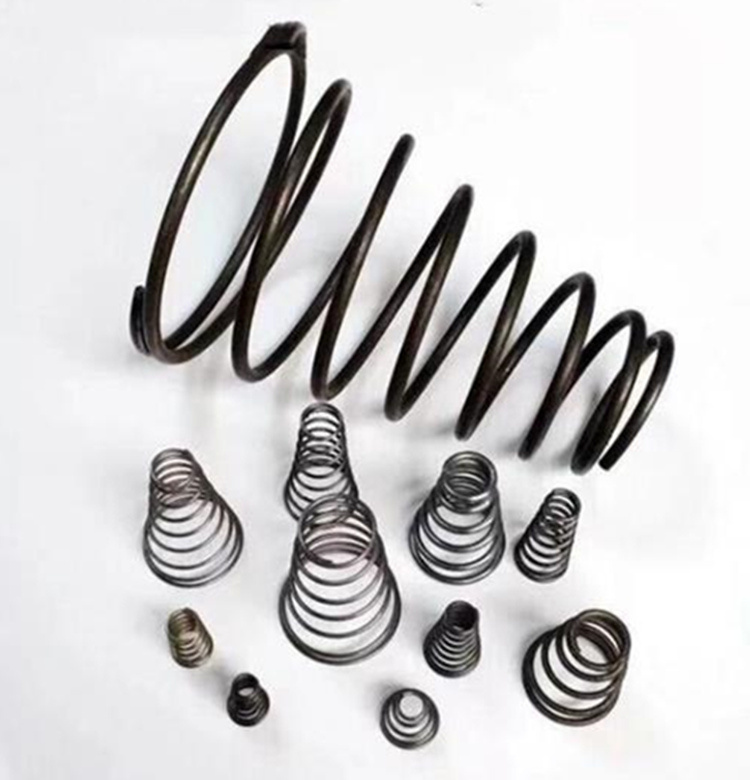

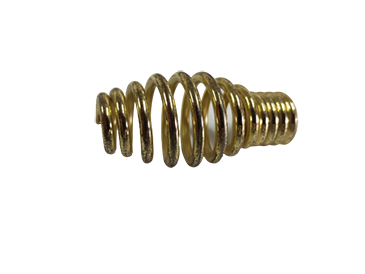

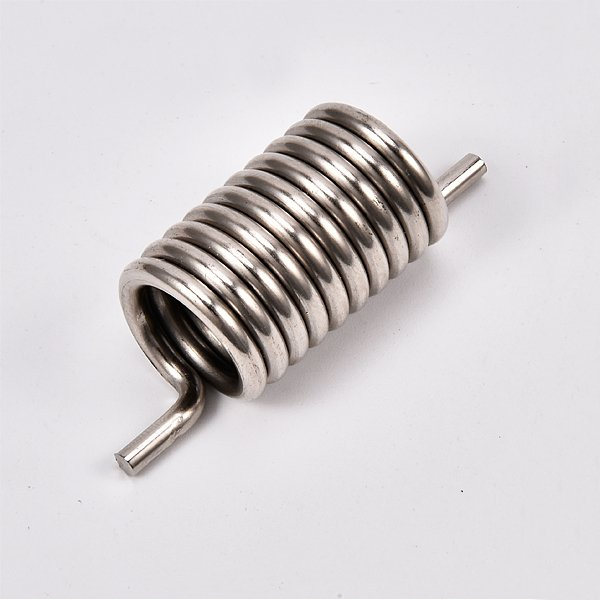

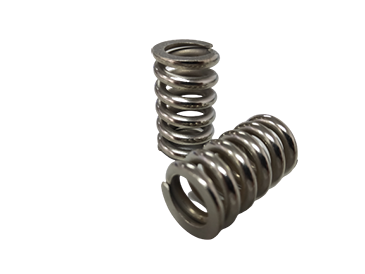

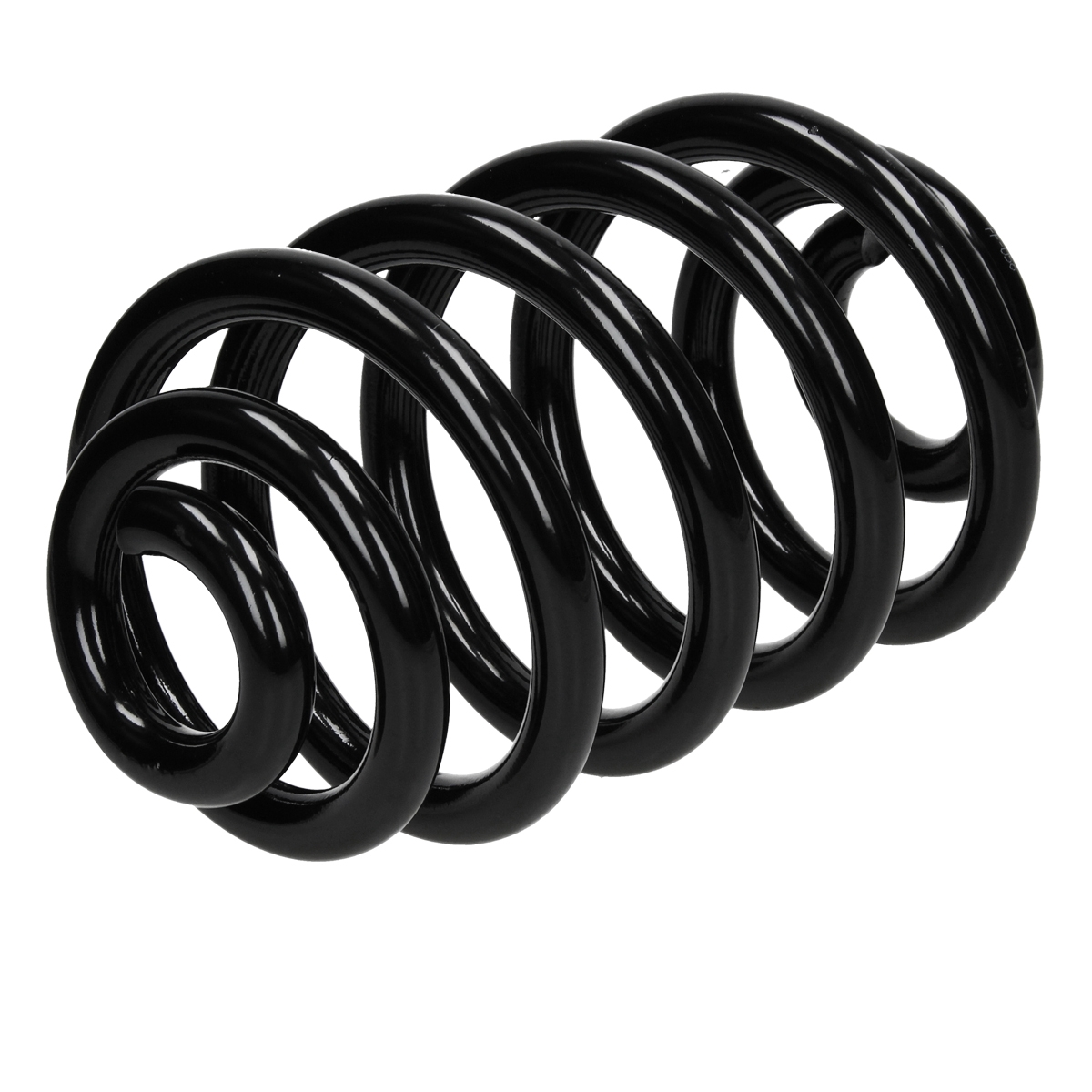

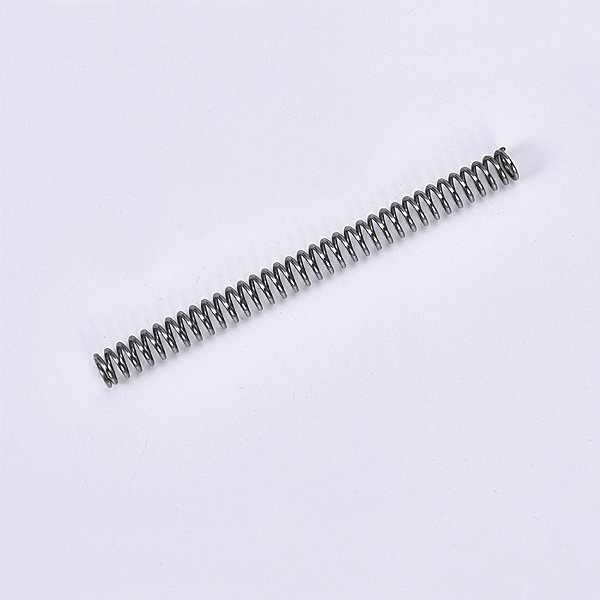

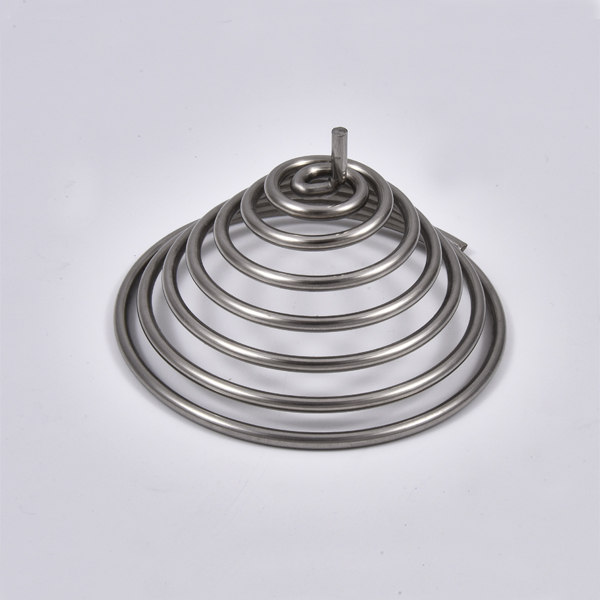

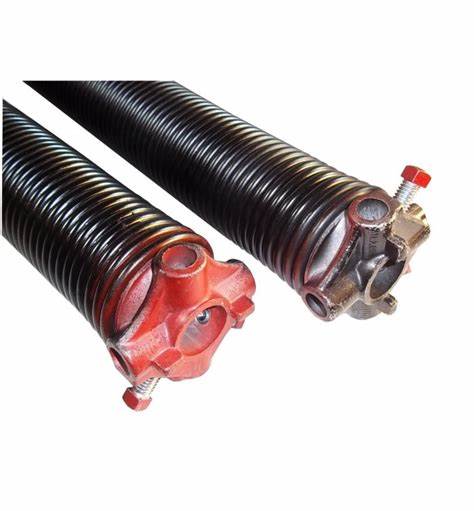

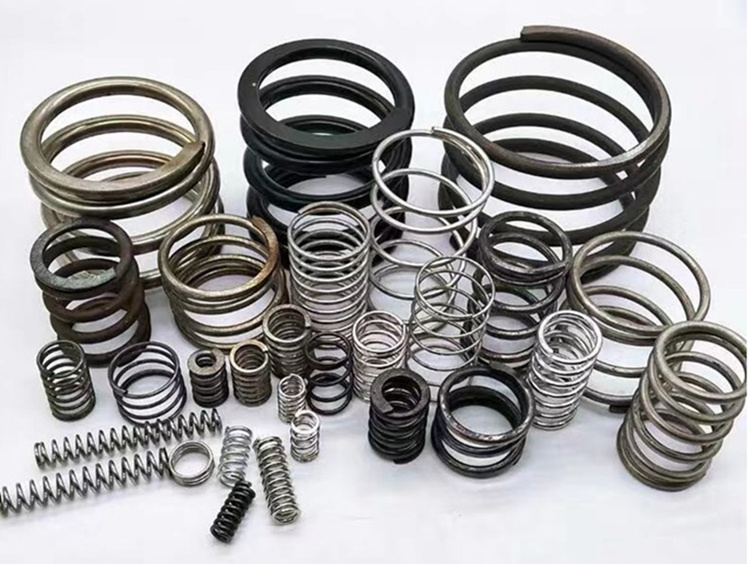

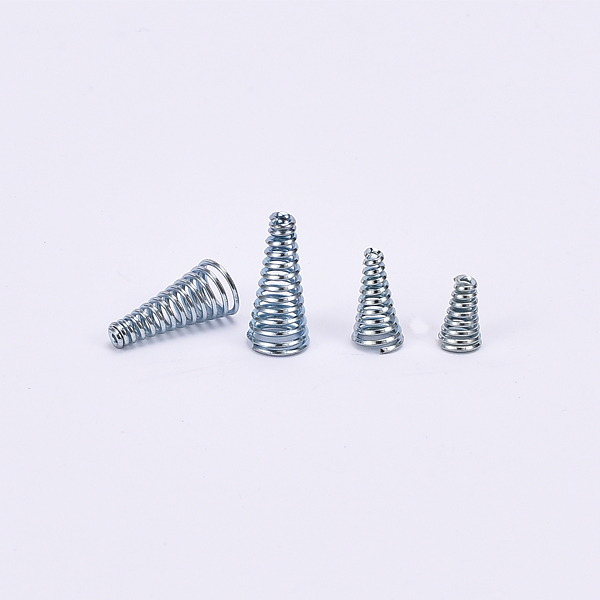

The system is equipped with a computer that can store hundreds of work programs. Suitable for various compression springs, oil seal springs, pagoda springs, wave springs, spring springs and various special-shaped springs, complex and difficult springs, etc.

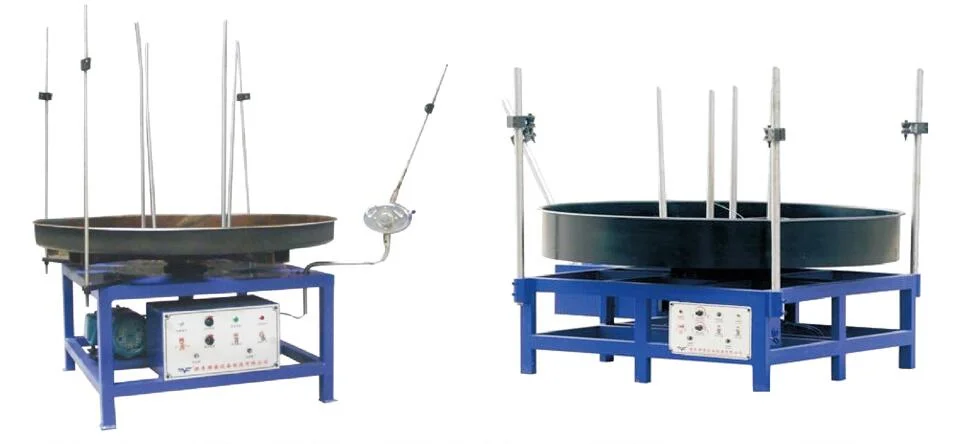

Automatic feeding rack

_{1. Features: timing, disconnection, (lack of material), abnormal stop (deviation), automatic alarm to stop operation, induction
2. Control safety control has high compatibility and can be used for parallel or series electric production machinery, and can be used independently or
3. Synchronous feeding. Automatic feeding rackYF-150 -350-500-1000 (load capacity between 150-1000Kg)}

Our Yinfeng machines can make any type of spring, and we can customize it with extra features as per your requirements.

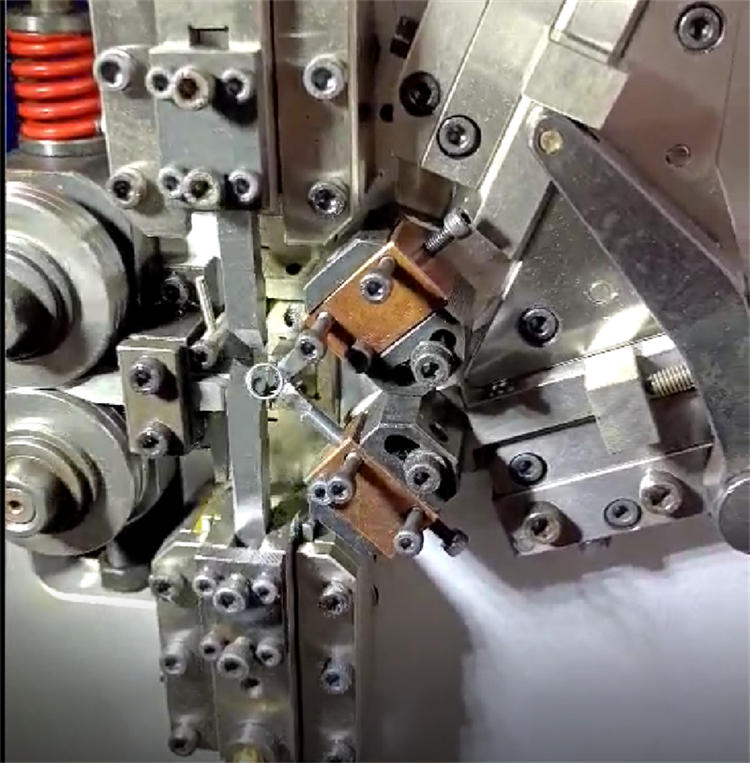

Manufacturing product videos

Product parameters

Model	CNC-8508
Coil wire diameter	Φ0.15-Φ0.8mm
Maximum outer diameter of coil spring	Maximum Φ20mm
speed	Max 560 pieces/min Max 560 pieces/min
Wire feed command value	±0.01-±9999.99
Cam command value	±0.1°-±359.9°
Cutter servo motor(1)	0.4KW
Cutter servo motor(2)	0.4KW
Pitch axis servo power supply	0.4KW
Wire feed servo motor	0.75kW
Cam servo motor	0.4KW
power supply	220V±10%V50HZ
size	1050X950X1600mm
weight	400kg

Price list can be sent upon request, please contact us: Ms Grace Email: yinfengspring@163.com Mobile/Whatsapp: +8618520279887
