corrugated hose/tube/pipe production line making machine

1. Mechanical Hose Making Machine

The machine can be used for different applications as follows:

A: Annular metal hose making machine with mould

B: helical metal hose making machine with mould

C: tube welding machine for the size up to DN50 without hose forming machine

The machine can be used for gas hose, water hose, solar hose, heat exchanger and fire fighting/sprinkler hose manufacturing.

Size range: DN8 up to DN40

Wall thickness: 0.18-0.3mm

Production speed:2.5~3.5m/min

Strip thickness: 0.18-0.3mm

Material: sus304, 321 and 316L


No.SizeTube OD
Wall thickness
Hose ID
Hose OD
Width of the strip
1DN 810.30.18811.32.731.8
2DN 12150.1812.316.33.246.6
3DN 16200.
4DN 2023.50.2520254.573.0
5DN 25300.32531.54.593.3
6DN 3239.50.333414.5123.2


Gas hose producing line as following


 1. Mechanical Hose Making Machine


2. PVC Coating Line


I. Extruder Type-SJ 65/25

1) Hard Teeth Surface, type 173 Gearbox

2) 18.5KW Inverter, 4 grade Motor with Chinese famous brand Chint contactor

3) The screw & barrel are 38CrMoAl, Nitriding treatment, depth: 0.2-0.4MM, compression ratio:3.2, Length : diameter:25:1 with water coo

ling system;

4) Thermal heating & electrical: the whole machine apply Chint DC contactor. Intelligent temperature controller, AL heating: 6 zones, 4pcs

with two sections of moulds

5) Size range: DN8-32mm



3.Testing Bench

The machine is widely used for following hose testing:

water hose, gas hose, solar hose and fire fighting hose hydraulic leakage testing

Size range:DN8-32mm


Max. length of the hose: up to 2000mm

No. of hoses testing at the same time: 4-8pcs

Testing medium: water



4.Vertical Fitting Welding Machine

Size range: DN8-32

Welding type: TIG welding

Welding position: circumferential seam welding

Compact structure

Torch Automatic rotating



5. Horizontal Fitting Welding Machine

Size range: DN8-32

Welding type: TIG welding

Compact structure

Part Automatic rotating



6. Hose Compressing Machine

To get more flexible hose, the metal hose will be compressed on this month, the pitch distance will be closed which make hoses more flexible.

Application: vacuum hose/bellow, high flexible bellows

Size range: HJ-BA100 DN25-100mm

HJ-BA200 DN100-200mm

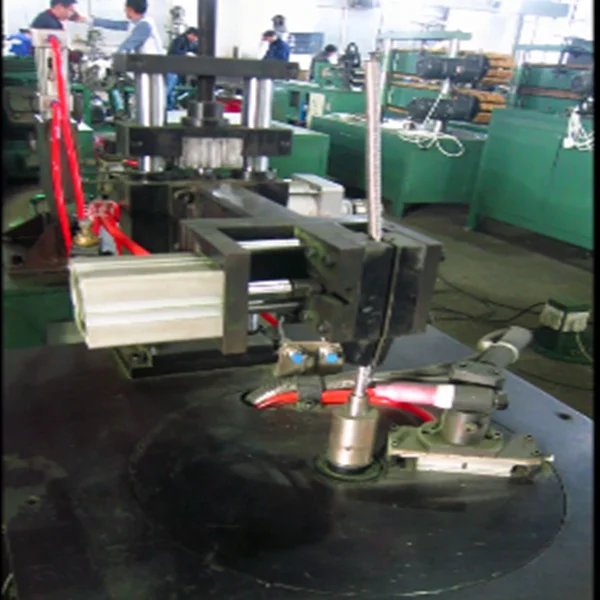

Different parts of mechanical gas hose making machine

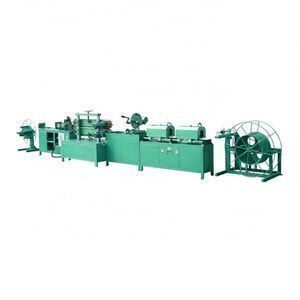

The whole machine line includes decoiler/winder, Panasonic welding machine, cutter, haul off unit, shaping unit, corrugating forming heads, take up.



Haul off unit /caterpillar




Shaping unit




Corrugated forming heads





Take up





Product/gas,water hose showing





Q: Why choose us for metal hose forming machine?

A: We are most professional manufacturer of hose making machine with more than 25 years of experience

Q: What size can you make?

A: All the sizes from DN8 up to DN400 can be made on different machines

Q: How many different types of machine can you make?

A: Hydraulic metal hose forming machine

  a:DN16-65mm   b:DN25-DN100mm   c:DN32-150mm  d:DN50-300mm  e:DN80-400mm

B: Mechanical hose making machine


C:PU/ Elastomer Metal Hose Making Machine

 a:DN12-100   b: DN50-150   c:DN12-65

Q:Can the hose forming machine be used for bellow making?

Yes, all above hose forming machine can be used for bellow making as well


We need to know following information to quote you correct machineries:

1.Size range you want to make

2.The application of the hose you need, for instance, natural gas hose, water hose, air conditional hose, etc..

3.Wall thickness
