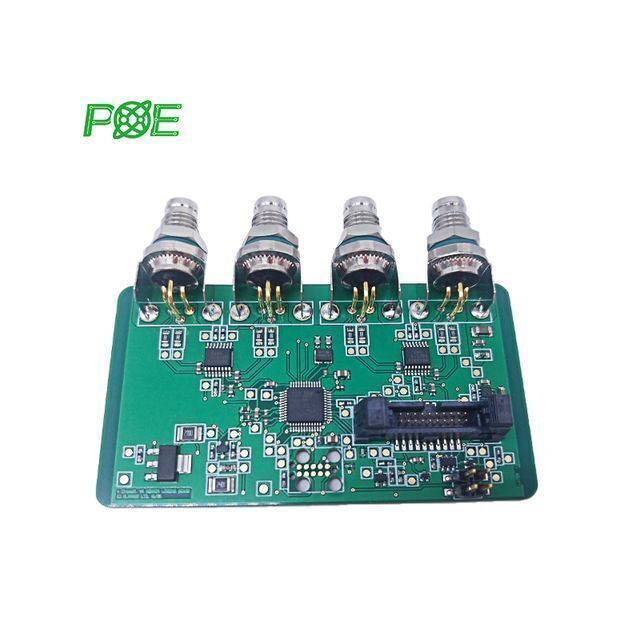

FR4 94v0 PCB PCBA fast delivery PCB manufacturer in China

Product details
Component max height:25mm;Max PCB size:510x460mm;
Copper Thickness:0.5-6OZ;Application:Electronics Device;
Min. Hole Size:0.15MM;Brand Name:POE-PCBA;
Base Material:FR4, CEM1, CEM3;Package Preview:;
Min lead pitch:0.3mm;Model Number:POE-PCBA0069;
Min. Line Width:3.5/4MIL;Min. Line Spacing:4MIL;
Selling Units:Single item;Packaging Detail:Vacuum package for bare PCB and ESD package for PCBA Printed Circuit Board Factory FPC Board PCBA Companies PCBA Assembly;
Service:One-step Service;Place of Origin:china;
Single gross weight:2.0 KG;Min BGA ball pitch:0.4mm;
Board Thickness:1.6MM;Single package size:15X9X10 cm;
Testing Service:100%;Layer:1-24layers;
Component size:0201-150mm;Solder mask color:Blue.green.red.black.white.etc;
Surface Finishing:ENIG+OSP, HASL LEAD FREE;
Sales team The professional sales team will provide you with good pre-sale and post-sale services. Quick reply and extremely skiiled to meet your any requirements.
Exhibition
we join in numerous trade shows over the world each for lead generation and brand management purposes.
One-stop EMS Contract Manufacturer
More than 20 years of experience in various fields of electronics sourcing, prototyping & manufacturing.
Item(pcb)
Capability (pcb)
Base Material
FR-4 / High TG FR-4 / Halogen Free material/Rogers/Arlon/Taconic/Teflon
Layers
1-22
copper thickness
1-6OZ
Finished board thickness
0.2-7.0mm
Min hole size
Mechanical hole: 0.15mm
Laser hole: 0.1mm
Controlled Impedance
+/-5%
Surface treatment
HASL, HASL lead free, Immersion Gold, Immersion Tin, Immersion Silver, Hard gold, Flash gold, OSP…
solder mask
green/blue/black/white/red/pink/orange/yellow
Plugging vias capability
0.2-0.8mm
Outline profile
Rout/ V-cut/ Bridge/ Stamp hole
Lead Time
Layer
Quick Turn/Usual Time
Mass production
2 layers
24hours/ 4-5days
8-10days
4 layers
24hours/ 4-5days
10-12days
6 layers
72hours/ 7-8days
12-14days
8 layers
72hours/ 8-10days
16-18days
10 layers
96hours/ 12-14days
18-20days
......
......
......
Delivery Time
Standard time
urgent order
prototype <20pcs
2 days
8 hours
Small volume 20-100pcs
6 days
24  hours
Medium volume 100-1000pcs
10 days
3 days
Mass production >1000pcs
Depends on the components
Depends on the components
POE is an OEM manufacturer that focus on PCB &PCBA manufacturing over 24 years. We have the capability to manufacture PCB ranging from basic single sided boards up to 40 layers, and provide one stop turnkey services, including PCB manufacture, PCB assembly, components source, function testing services and housing so on. We established in 1996 and always provide high quality, technically advanced products within the customer’s timescales so that we can provide the best electronic services for you. This commitment, combined with the wealth of experience and expertise we have built up over the years, means we can offer a total solution to our customers PCB requirements.
How to recognize Electroless Plating Copper (PTH) and Conductive Adhesive?
Conductive Adhesive also called black hole, it can be found on the NPTH hole wall. The color of panel plating copper is the fiber substrate itself, and the Conductive Adhesive has a
black glue attached to the hole wall.

Comparison of microscope slices of connection points between Panel Plating and Conductive Adhesive Holes on
multilayer PCB.
FAQ
Q1. What is needed for quotation?
PCB: Quantity, Gerber file and Technic requirements(material, surface finish treatment, copper thickness, board thickness,...)

Q2. What file formats do you accept for production?
Gerber file:CAM350 RS274X
PCB file: Protel 99SE, P-CAD 2001 PCB
BOM: Excel(PDF, WORD, TXT)

Q3. Are my files safe?
Your files are held in complete safety and security. We protect the intellectual property for our customers are never shared with any third parties.

Q4. MOQ?
There is no MOQ in POE. We are able to handle small as well as large volume production with flexibility.

Q5. Shipping cost?
The shipping cost is determined by the destination, weight, packing size of the goods. Please let us know if you need us to quote you the freight.

VIEW MORE
