OEM fpc High Flex PCB Electronic Card PCB Circuit Board One Stop Service Flex PCB Manufacturer

Supplier: Shenzhen POE Precision Technology Co., Ltd.
Region: Guangdong, China
Contact: Ms Vicky Liang
Price: $3.00 / 1 - 99 pieces
$1.90 / 100 - 999 pieces
$1.20 / 1000 - 9999 pieces
$0.50 / >=10000 pieces
Min. Order: 1 piece

Click here to contact

Product details

Package preview:		brand:	not any
Supply capacity:	50000 pieces per week	supply type:	manufacturer
document:	Gerber files and BOM	Surface treatment:	HASL / OSP / ENIG / Immersion Silver/Tin/Nickel
layer:	1-8 layers (soft board)	minute. Line spacing:	0.04MM
payment terms:	L/C, Western Union, D/P, D/A, T/T, MoneyGram, PayPal	Packaging Details:	PCB PCBA Service PCB FR4 Circuit Board 94v0 PCBA Supplier Inner Packing: Anti-static Bag; Vacuum Packing Outer Packing: Foam and Carton
port:	Shenzhen/Hong Kong	Origin:	gua
minute. Hole size:	0.1MM	Copper thickness:	1 oz/1/2 oz/1/3 oz
Plate thickness:	0.065-0.4MM	MOQ:	1
PCB and PCBA Sample Availability:	Bill of Materials	Rib material type:	PI / FR4 / PET / steel sheet
minute. line width:	0.04MM	Certificate:	RoHS/ISO9001/TS16949/ISO14001/ISO13485
Substrate:	polyimide/polyester	Board size:	Elective
Test service:	100% AOI testing	type:	soft board
model:	PCB-9001	Product Category:	Wearable product FPC
color:	Yellow Green Black Transparent Blue Gold White

Product Description

Related Products

Specification

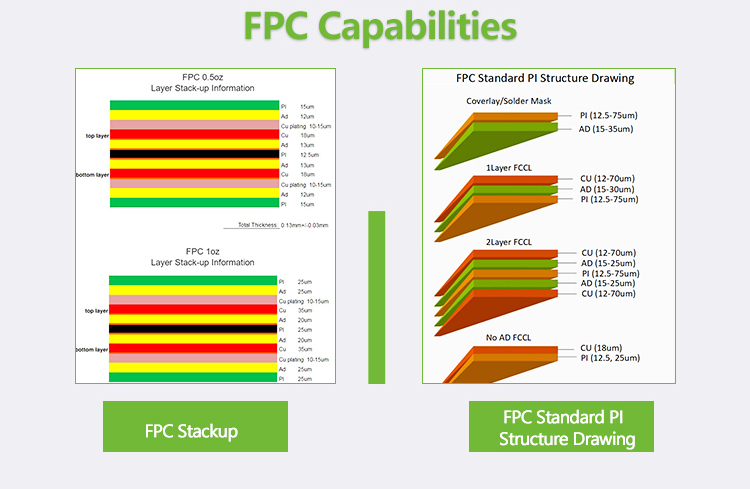

Flexible Printed Circuit Board Capabilities
layers	1-8 floors
Maximum panel size	1-6 floors: 500mm600mm Above 6 floors: 2501500mm
Material	PI, PET, PEN, etc.
Soft board thickness	0.065mm-0.4mm
Base Copper Thickness	9 microns, 12 microns, 18 microns, 35 microns, 70 microns
Minimum Track Width/Space	0.075mm/0.075mm
minimum aperture	0.075mm (laser drilling)
Solder Mask/Overlay Color	yellow, black, white
silk screen color	white, black
surface treatment	Immersion Gold, Immersion Tin, Immersion Silver, OSP
Peel strength	1.2kg f/cm
Maximum drill	6.5 mm
Smallest drill	0.15 mm
electrical test	Flying probe, electronic test, AOI

Application of flexible circuit board

Flex PCB manufacturing is increasingly favored where reliability and adaptability are important. Not surprisingly, they have a wide range of applications in various industries such as: Medical Devices, Communications Consumer Electronics, Aerospace, Wearables, Automotive, IoT, LED Lighting, etc.
