Manufacturer specializing in the production of single and double FPC multi-layer circuit boards Products from Jiangsu Liankang Info Co., Ltd.

Product Details

Board size:	9.6*50MM	layer:	1-6 floors
thing:	Multilayer flexible printed circuit board	product name:	Flexible printed circuit board
Packaging details:	Vacuum packaging/blister/blister/cartoon	Material:	PI/PET/PEM/FR-4
Express:	DHL FEDEX UPS TNT etc.	Place of origin:	Jiangsu, China
Copper thickness:	1/3 oz	Supply capacity:	10,000 square meters per month
Plate thickness:	0.15MM	Summary introduction:	laser cutting
payment terms:	L/C, Western Union, D/P, D/A, T/T, MoneyGram	type:	Flat flexible FPC cable, FPC
minute. Hole size:	0.15MM	Certificate:	RoHS/ISO9001-2008/ISO14001-004
application:	car	minute. Line spacing:	0.1MM
model:	061702	Base material:	PI
Minimum order quantity:	1	brand:	Likang
minute. Line width:	0.1MM	Surface treatment:	Chemical nickel gold

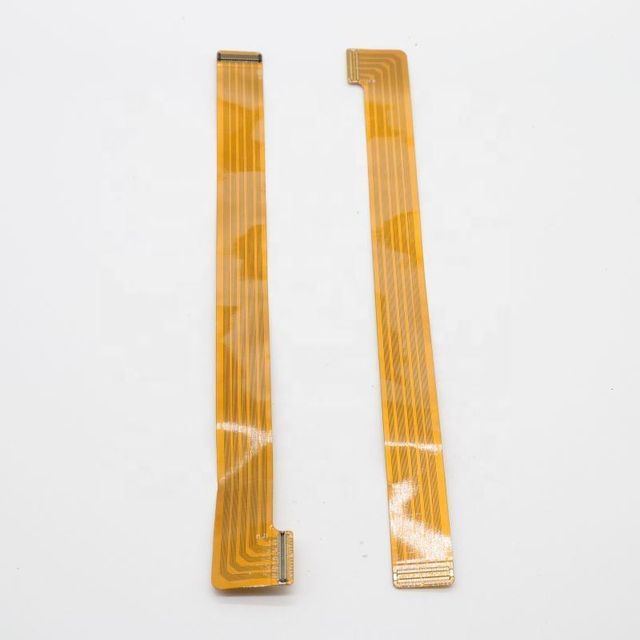

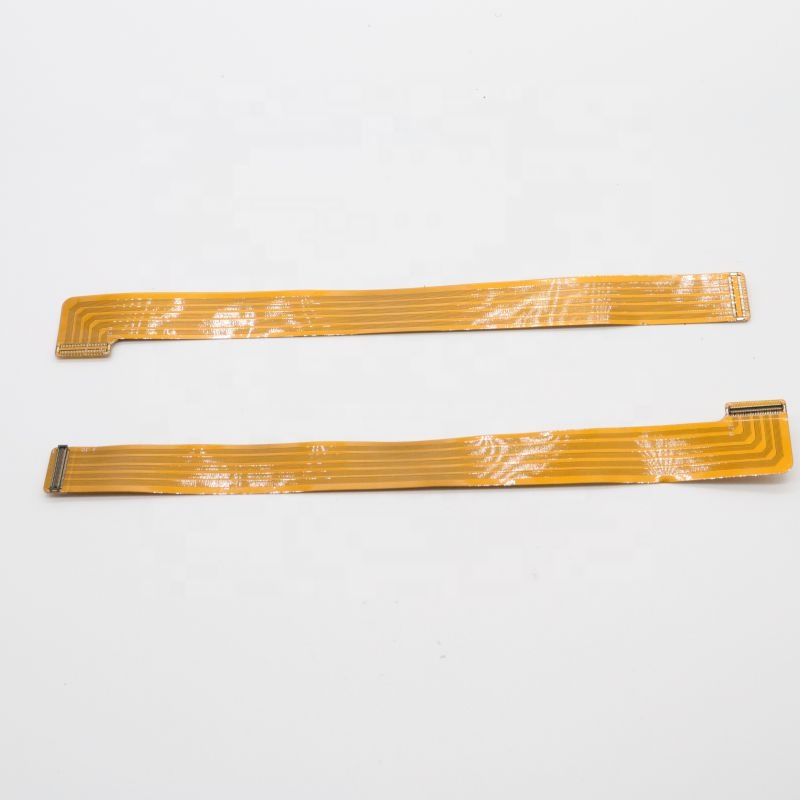

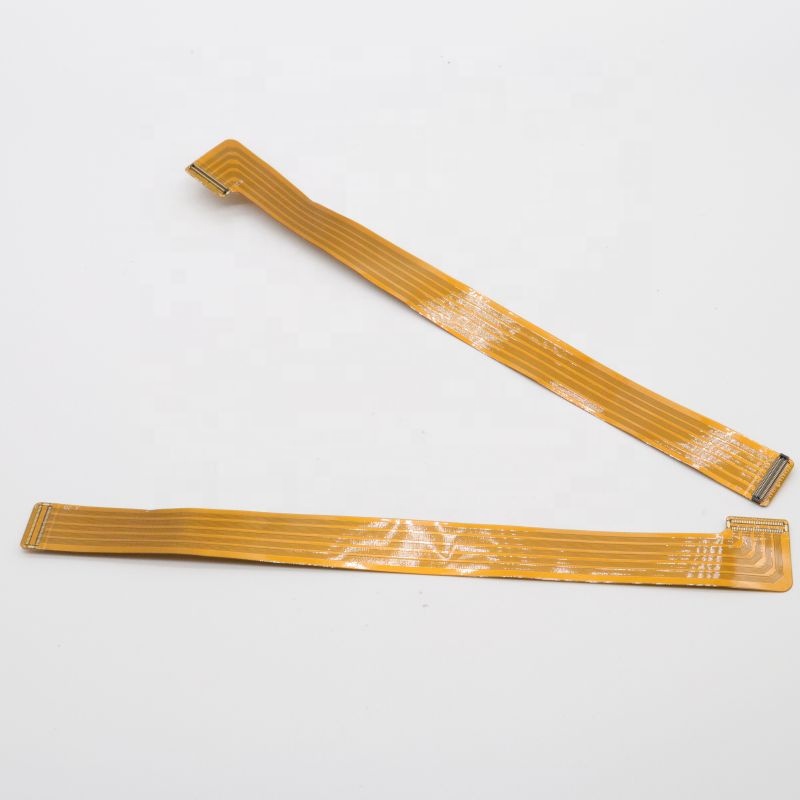

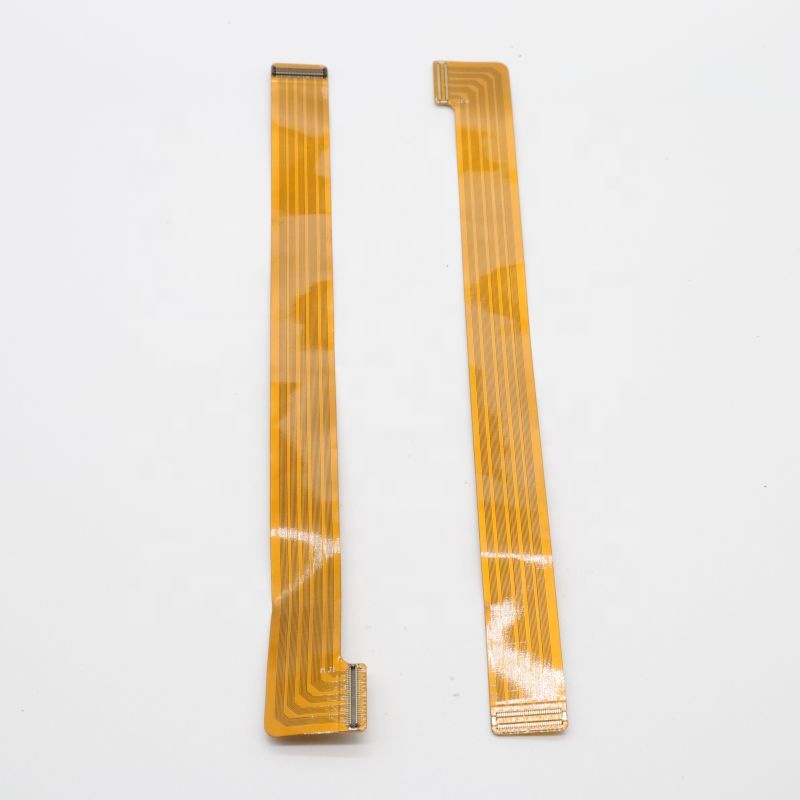

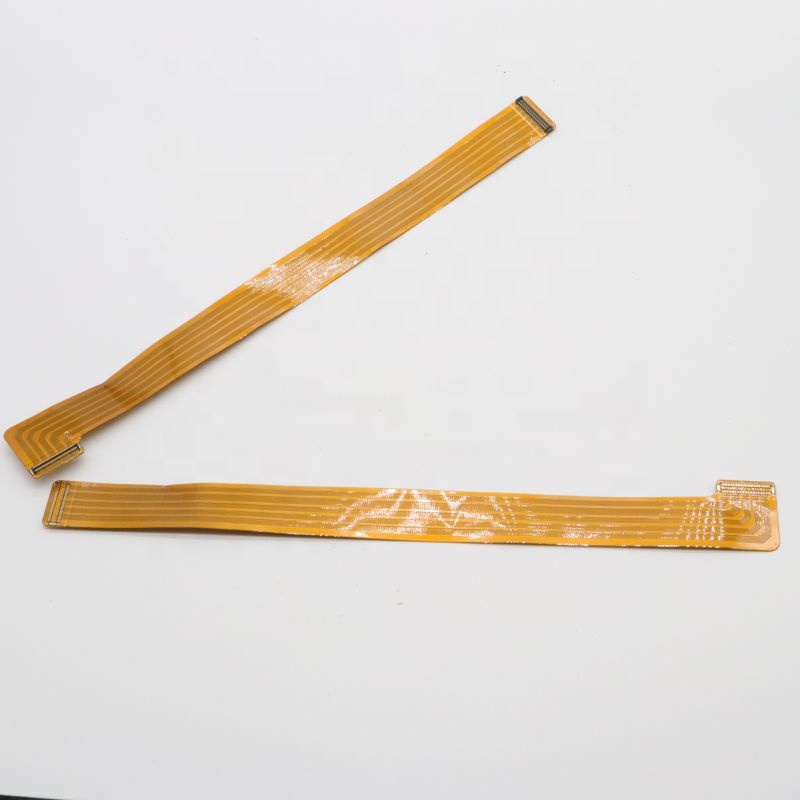

Product display

Manufacturing Technology

Material	FR4, polyimide/polyester
count	Elasticity: 1~8L; combination of rigidity and softness: 2~8L
Plate thickness	Minimum 0.05mm; maximum. 0.3 mm
Copper thickness	1/3 oz --- 2 oz
CNC drill bit size (maximum)	6.5 mm
CNC drill bit size (minimum)	Curvature: 0.15mm
Hole position tolerance	±0.05 mm
Cover drill hole size (minimum)	0.6 mm
Hole to cover opening window (minimum)	0.15 mm
Minimum line width/space	0.1/0.1mm
Hole wall copper thickness	Flexibility: 12-22μm
Minimum pad size	φ0.2mm
Etch resistance	Finished product line width tolerance ±20%
Pattern Registration Tolerance	*±0.1mm (working panel size: 250300mm)**
Overlay registration tolerance	±0.15 mm
Solder Mask Alignment Tolerance	±0.2mm
pad to pad	Non-photosensitive: 0.2mm
pad to pad		Sensitivity: 0.1mm
minute. solder resist dam	0.1mm
Registration error tolerance	±0.30mm
Used for reinforcing agents, adhesives and tapes	±0.30mm
surface treatment	Nickel/gold plating; electroless nickel/gold; open source software
