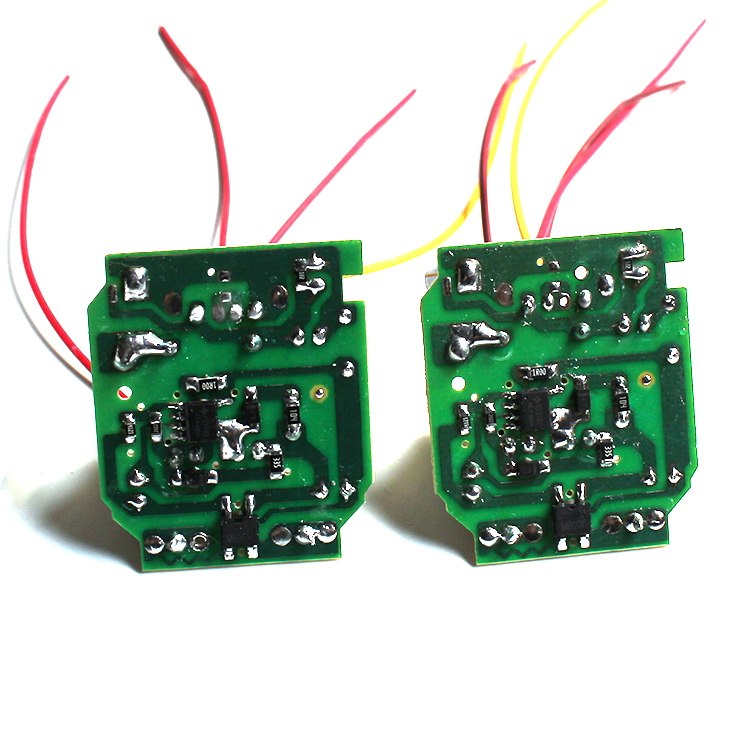

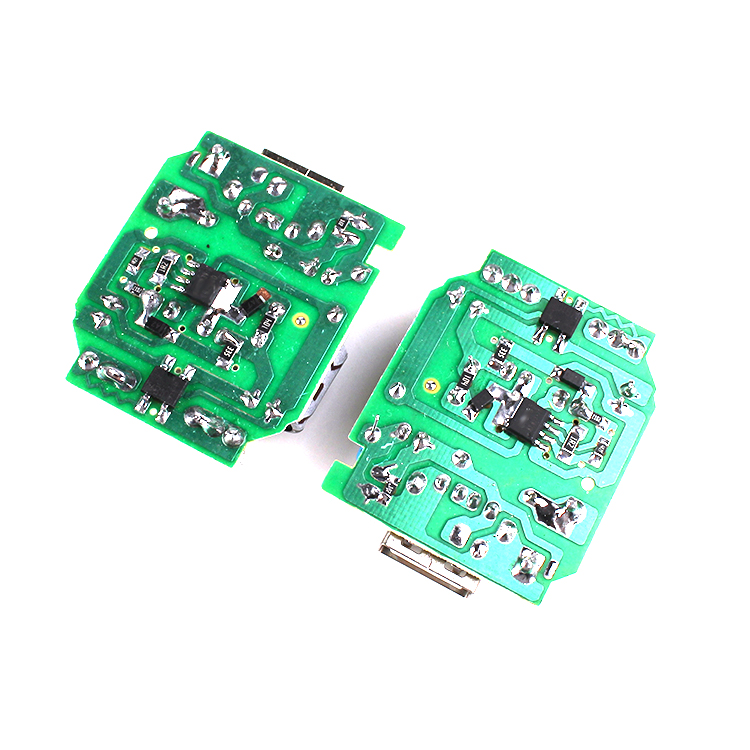

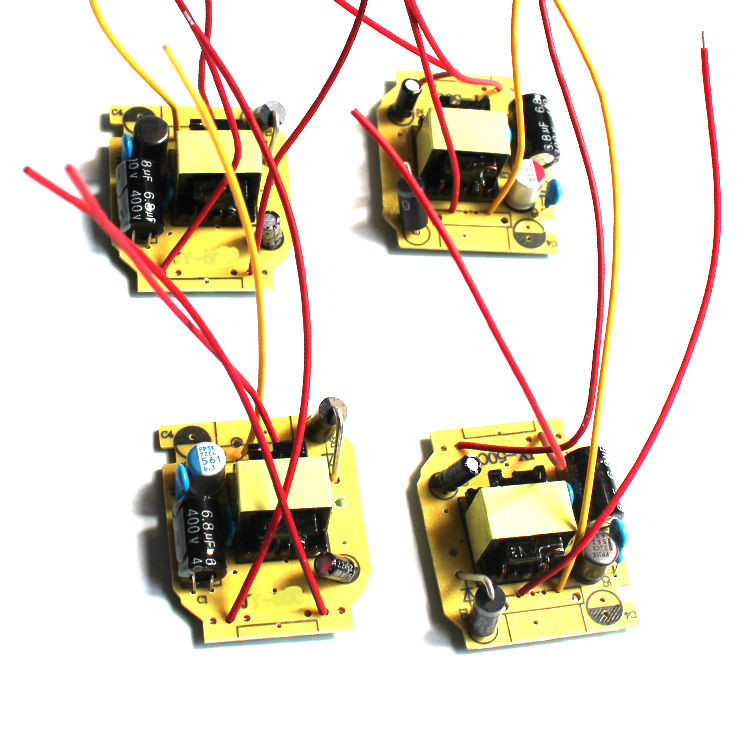

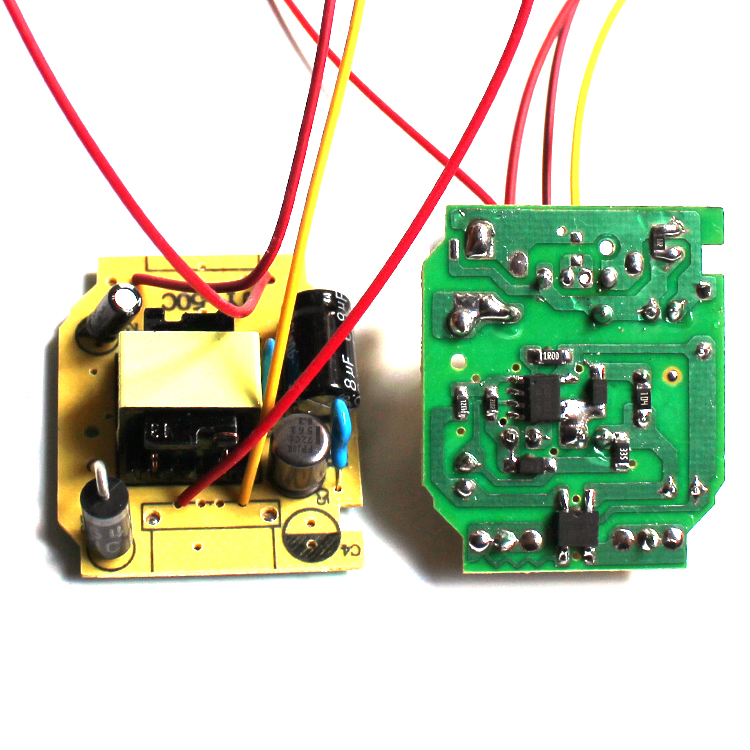

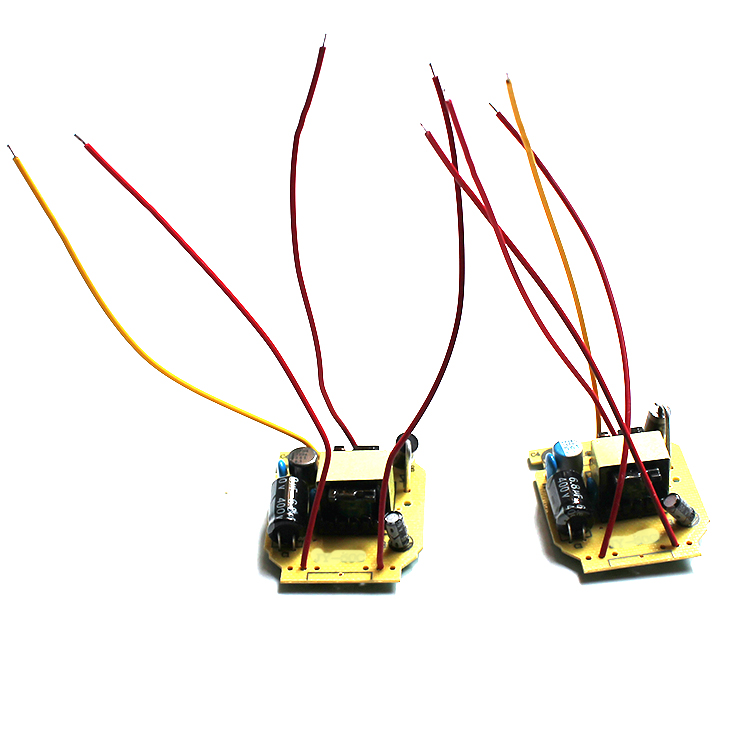

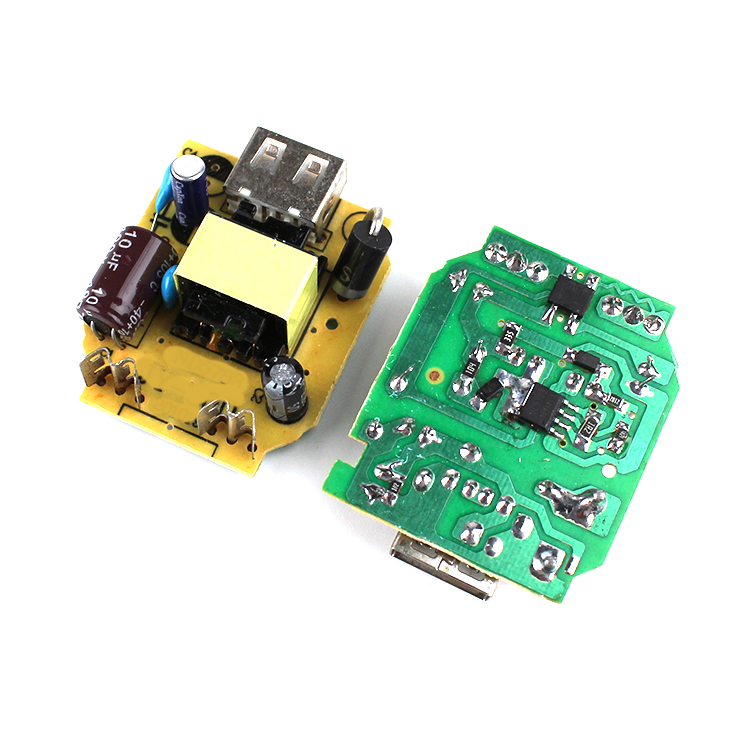

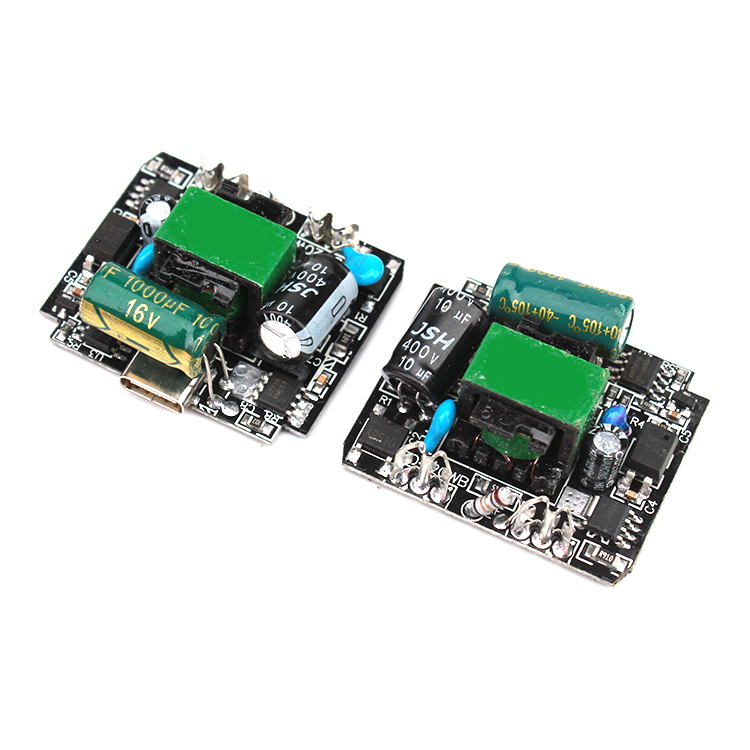

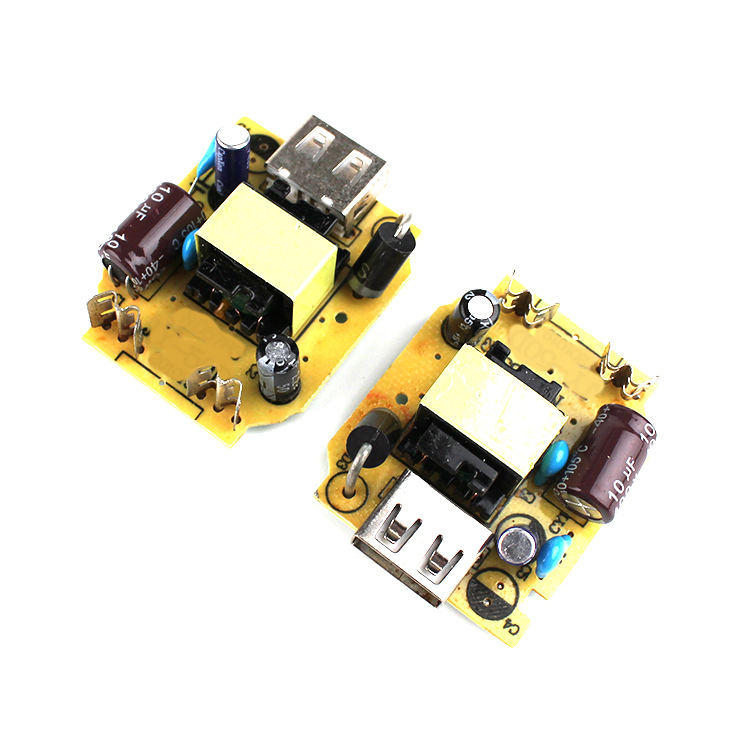

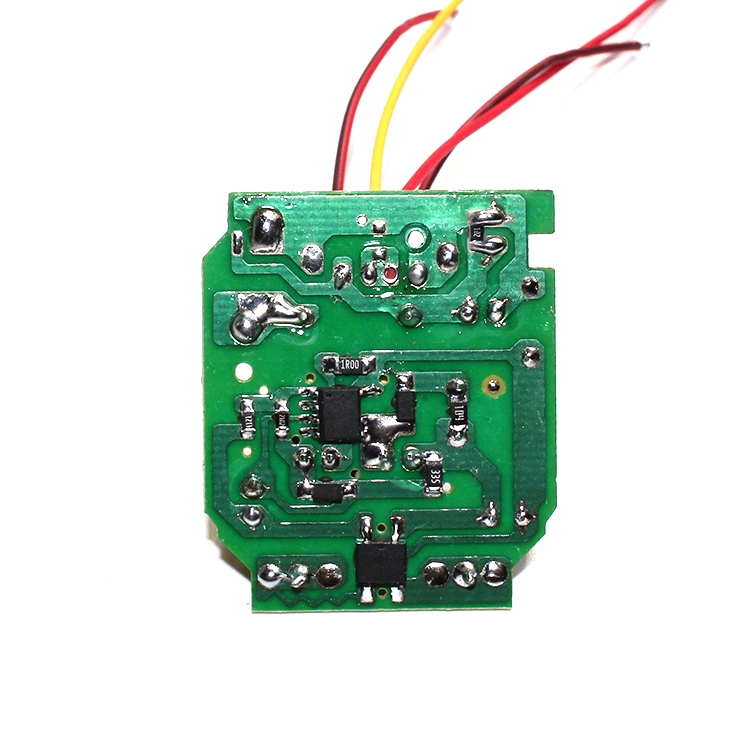

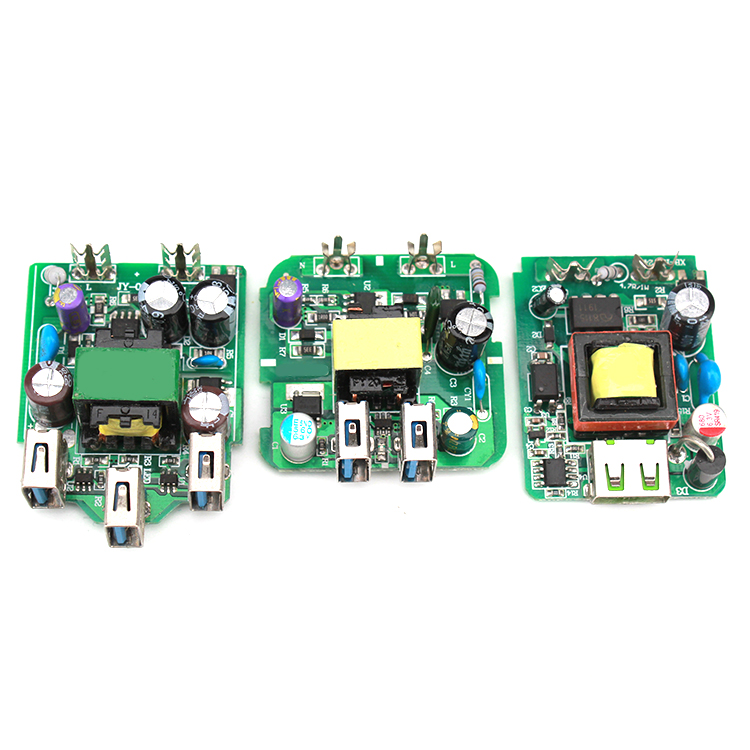

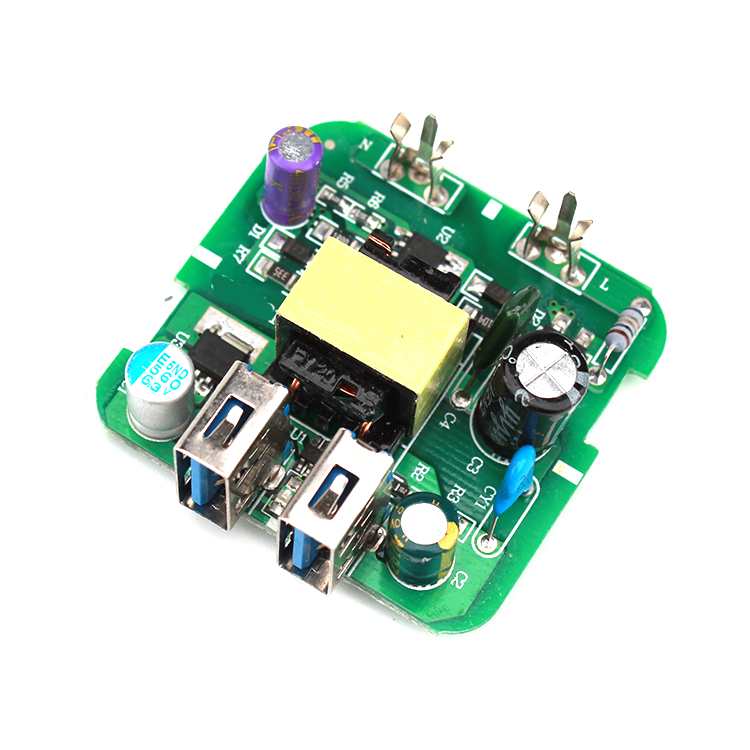

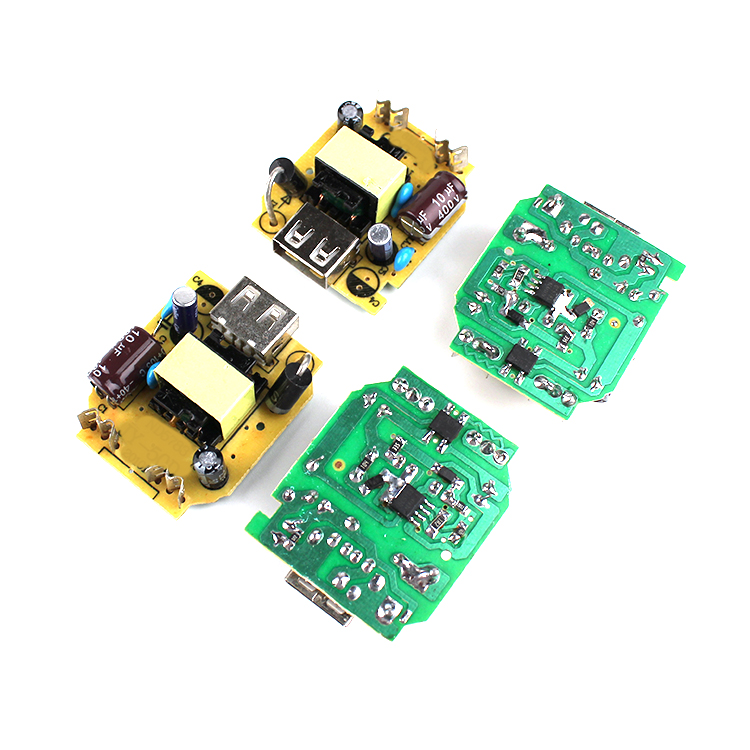

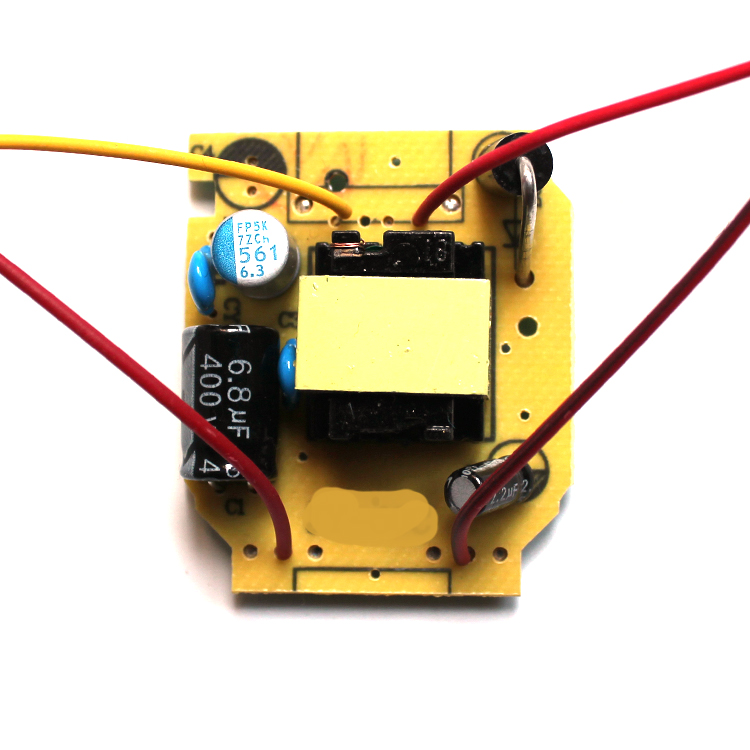

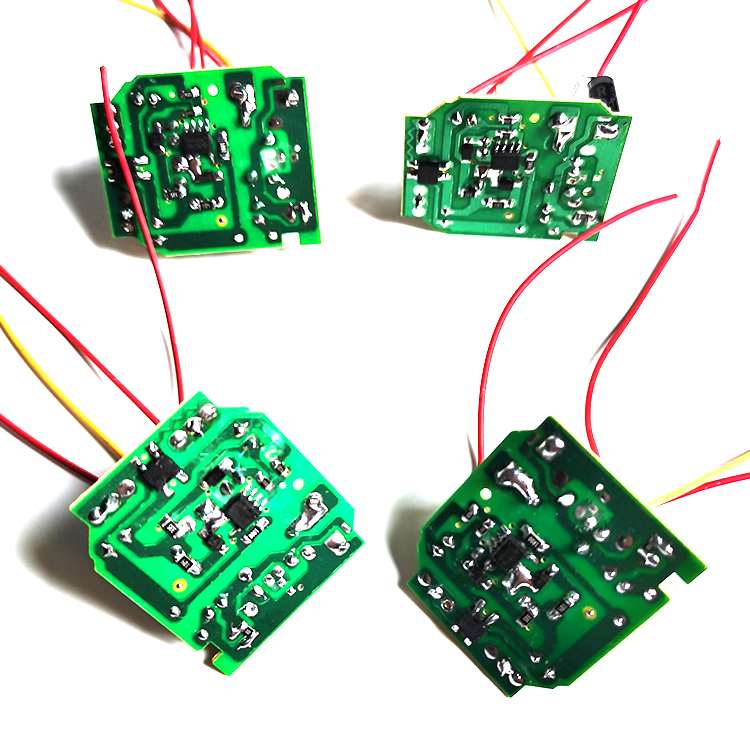

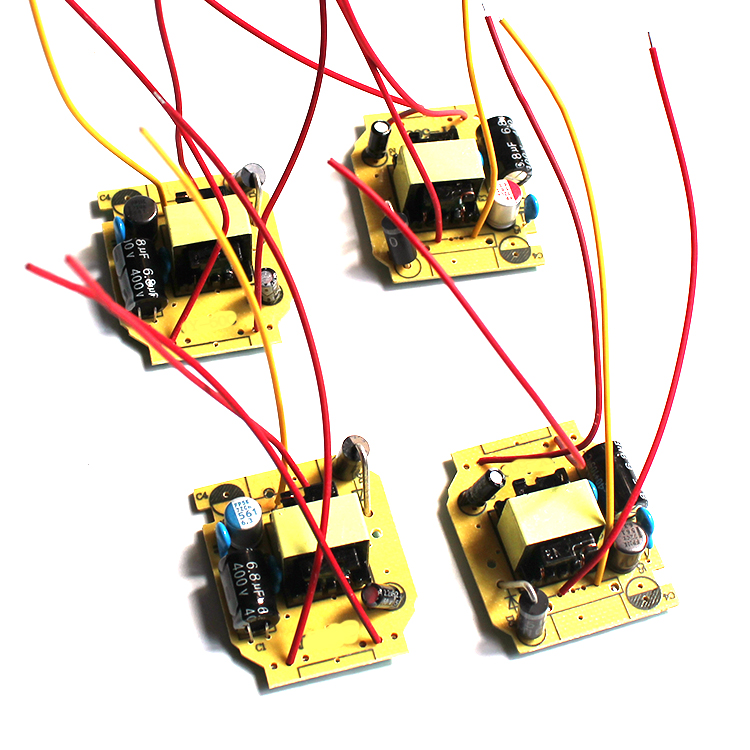

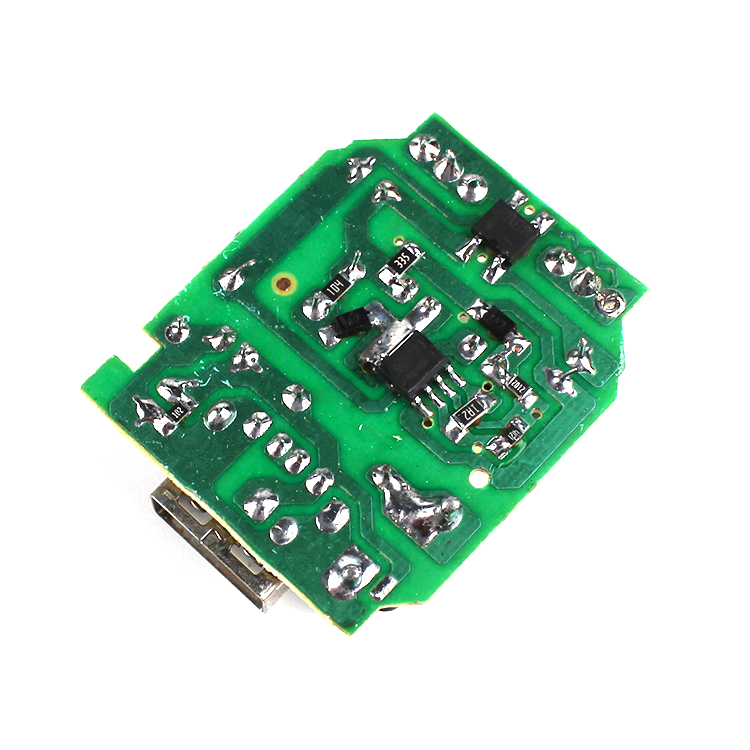

R&D USB Charger PCBA Power Adapter PCB Assembly Smartphone Accessories Electronics Manufacturer
- 0.50 1 - 999 pieces
- 0.40 1000 - 99999 pieces
- 0.13 >=100000 pieces
| Minute line spacing: | 0.003" | Substrate: | FR-4 |
| Board Dimensions: | custom made | model: | PCBA-NDM2A |
| Name: | Custom PCB and PCBA OEM PCB Assembly | Minute line width: | 3 meters |
| Packaging Details: | carton | Surface treatment: | HASL |
| Origin: | Guangdong, China | brand: | OEM/Design and Manufacturing |
| Supply capacity: | 1,500,000 pieces per month | payment terms: | L/C, Western Union, T/T |
| port: | Shantou/Shenzhen | Copper thickness: | 1 oz |
| Minute Hole Size: | 0.20mm | Solder Mask: | custom made |
| Plate thickness: | 1.6 mm |
R&D USB Charger PCBA Power Adapter PCB Assembly Smartphone Accessories Electronics Manufacturer
PCB capability (can customize the whole line)
|
layers |
1-18 floors |
|
Material |
fr4, Tg=135, 150, 170, 180, 210, cem-3, cem-1, al base, rogers, nelco |
|
copper thickness |
1/2oz, 1oz, 2oz, 3oz, 4oz, 5oz |
|
plate thickness |
8-236mil (0.2-6.0mm) |
|
Minimum Line Width/Space |
3/3 million (75/75um) |
|
Drilling size in minutes |
8 million (0.2mm) |
|
HDI laser drill size in minutes |
3 million (0.067mm) |
|
Aperture Tolerance |
2 million (0.05mm) |
|
PTH copper thickness |
1 million (25 microns) |
|
Solder mask color |
custom made |
|
Strippable solder mask |
Yes |
|
surface treatment |
HASL(ROHS), ENING, OSP, immersion silver, immersion tin, flash gold |
|
gold thickness |
2-30u" (0.05-0.76um) |
|
Blind/Buried vias |
Yes |
|
V-cut |
Yes |
PCBA capability
|
technology |
surface mount, four-way |
|
SMT capability |
4,000,000 points per day |
|
DIP capability |
600,000 points per day |
|
experience |
QFP, BGA, μBGA, CBGA |
|
process |
lead-free |
|
programming |
Yes |
|
Conformal Coating |
Yes |
