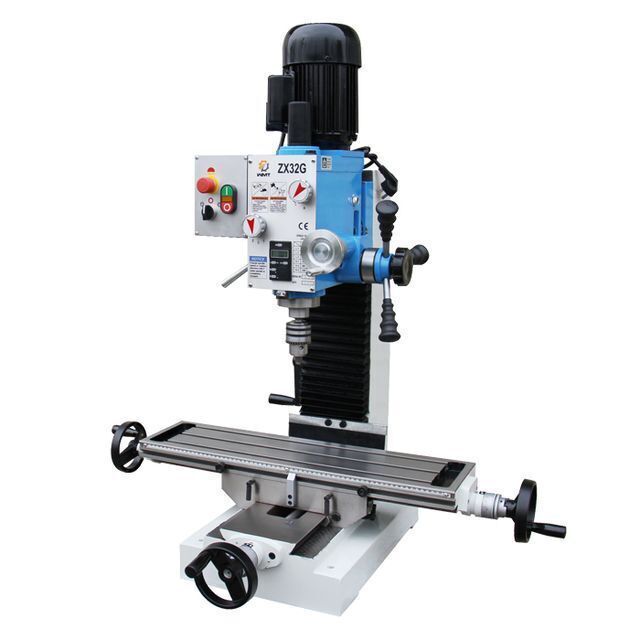

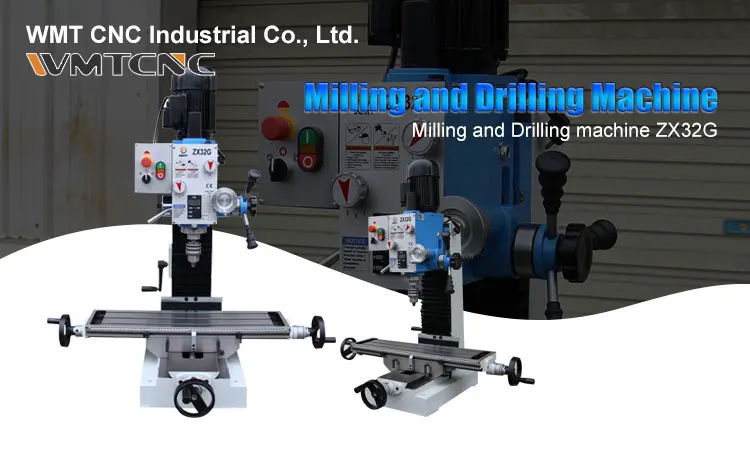

ZX32G Vertical dilling and milling machine for Metal Working

Supplier: WMT CNC Industrial Co., Ltd.
Region: Anhui, China
Contact: Ms Sunny Huang
Price: $900.00 /set
Min. Order: 1 set

Click here to contact

Product details

Table Travel (mm):	410X205X310MM;	Power (kW):	0.75;
Supply Ability:	50 Set/Sets per Month;	Warranty:	13 months;
Machining Capacity:	Medium Duty;	Video outgoing-inspection:	Provided;
Warranty of core components:	1 Year;	Package Preview:	;
Applicable Industries:	Building Material Shops,Machinery Repair Shops,Manufacturing Plant,Construction works ;	Model Number:	ZX32G;
Brand Name:	WMT;	Local Service Location:	Japan,Malaysia,Australia,Argentina,South Korea,Chile,Colombia,Romania,South Africa,Egypt,Canada,United Kingdom,United States,Italy,France,Germany,Brazil,Peru,Mexico,Russia,Spain,Thailand;
Type:	VERTICAL;	Core Components:	Bearing,PLC,Gearbox;
Certification:	CE Certificate;	Condition:	New;
Dimension(LWH):	770X880X1160mm;	Column size:	150130690mm;
After-sales Service Provided:	Engineers available to service machinery overseas;	Voltage:	220V/240V/380V;
Range of Spindle Speed(r.p.m):	95 - 1420 r.p.m;	Payment Terms:	L/C,Western Union,D/P,D/A,T/T;
Packaging Detail:	Drilling and milling machine ZX32G with Standard plywood package.;	Spindle Taper:	MT3 or R8;
Key Selling Points:	Competitive Price;	Year:	brand new;
Table Travel (X) (mm):	290 mm;	Showroom Location:	Argentina,South Korea,Chile,Colombia,South Africa,Japan,Malaysia,Australia,Egypt,Canada,Turkey,United Kingdom,United States,Italy,France,Germany,Brazil,Peru,Indonesia,Mexico,Spain,Thailand;
Table Travel (Y) (mm):	180 mm;	Precision:	High Precision;
Spindle Motor Power(kW):	0.75;	Weight (KG):	205;
Number of Axes:	3;	Machinery Test Report:	Provided;
Port:	Normally,Shanghai port;	Table size:	700*180mm;
Marketing Type:	New Product 2020;	Place of Origin:	Anhui China;
After Warranty Service:	Video technical support,Online support,Spare parts,Field maintenance and repair service;	CNC or Not:	Normal;
Spindle taper:	MT3 or R8;	Machine Type:	Vertical Drilling Milling;
Name:	Mini Drilling Milling Machine;	Table Travel (Z) (mm):	380 mm;
Spindle Speed:	95-1420rpm;

Product Description

Drilling and Milling ZX32G Features:

1. High precision grinding all steel spindle;

2. High strength with square column;

3. Good strength gear grinding, low nosie;

4.Headstock tilts left and right;

5. Wide electrical box, easy operation;

6. High precision manual feeder;

7. Depth ruler, easy operation and read.

Specification	ZX32G	ZX32GV
Max drilling capacity	32mm	32mm
Max tapping capacity	16mm	16mm
Max face milling capacity	63mm	63mm
Table size	700*180mm	700*180mm
Spindle taper	MT3/R8	MT3/R8
X-axis travel	410mm	350mm
Y-axis travel	205mm	230mm
Z-axis travel	310mm	380mm
Spindle travel	85mm	75mm
T-slot size	12mm	12mm
Spindle speed range	95-1420rpm	92-1420rpm
Headstock tilt left and right	90 degree	90 degree
Column size	150×130×690mm	150×130×690mm
Base size	550×340mm	550×340mm
Max. distance from spindle center to column	203mm	214mm
Max. distance from spindle center to table	336mm	400mm
Motor power	750w	750w
N.W/G.W	170/200kgs	185/215kgs
