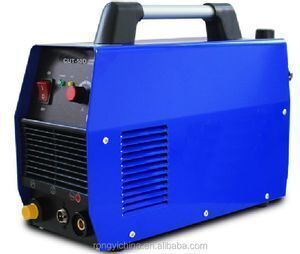

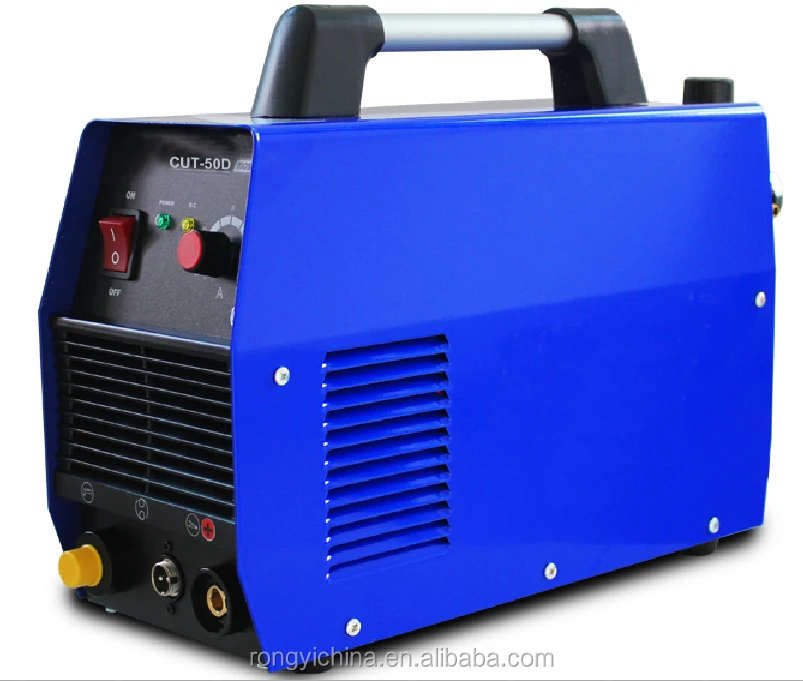

Shanghai Rongyi Brand New Design Mosfet Inverter Dual Voltage 110V&220V DC Air Plasma Cutter 50A CUT50D
- 137.90 piece
| Function: | CUT; | Payment Terms: | L/C,T/T,Western Union,Paypal; |
| Place of Origin: | Shanghai China; | Marketing Type: | New Product 2020; |
| Input Voltage: | 1-ph AC 110v or 220v±10% V; | Packaging Detail: | Plastic film and Expand Aple Polyephylene foam inside, and Corrugated paper carton and Plastic stretch wrap outside.; |
| Weight: | 10.5KG; | Usage: | CUT; |
| Video outgoing-inspection: | Provided; | Port: | Shanghai; |
| Showroom Location: | None; | CUT50D: | CUT50D; |
| Dimensions: | 385*155*295; | Warranty of core components: | Not Available; |
| Machinery Test Report: | Provided; | Brand Name: | ROGYI; |
| Key Selling Points: | Multifunctional; | Power (kW): | 6.3; |
| Warranty: | Unavailable; | Certification: | CE, CCC, ISO9001; |
| Local Service Location: | None; | After Warranty Service: | Online support; |
| Rated Current: | 10-50 A; | Condition: | New; |
| Weight (KG): | 9.2 KG; | Supply Ability: | 8000 Piece/Pieces per Month CUT50D; |
| Core Components: | other; | Applicable Industries: | Hotels,Building Material Shops,Manufacturing Plant,Retail,Construction works ; |
1,Mosfet inverter and precision constant current feedback. control techonlogy, soft switch.100kHz of cutting frequency
2. Wide working voltage range,strong adaptability to electricity power grid, high ability of interference resistance,automatic voltage compensation, stable cutting current and steady arc.
3.Compact structure,portable ,energy saving easy for maintenance.
4,For'D" series with 11/220 duel voltage input, air cool,automatic input voltage shift,secondary boost for arc stricking
|
Model Specification |
CUT 50D |
|
|
Power supply voltage |
1-ph AC 110v or 220v±10% V |
|
|
Power frequency |
50~60 Hz |
|
|
Power supply capacity |
6.0 kVA |
|
|
Rated input current |
25 A |
|
|
No-load voltage |
230 V |
|
|
Output current range |
10-50 A |
|
|
Output voltage |
102 V |
|
|
Duty cycle |
60% |
|
|
Efficiency |
85% |
|
|
Tip hole diameter |
1.0 mm |
|
|
Arc striking model |
Touch |
|
|
Cosφ (η) |
0.93 |
|
|
Air pressure |
0.4 MPa |
|
|
Cutting thickness |
Steel |
1-12 mm |
|
Aluminum |
1-8 mm |
|
|
Copper |
1-6 mm |
|
|
Air flow |
110 L/min |
|
|
Insulation grade |
B |
|
|
Protection grade |
IP 21 S |
|
|
Net Weight |
9.4 kg |
|
|
Dimensions (mm) |
385*155*295 |
|
* BUY WITH CONFIDENCE.
* QUALITY MACHINES MANUFACTURED BY RONGYI.
* FULL SERVICE AND PARTS BACK UP.
* 12 MONTHS WARRANTY.
The data in the above table is only for reference. Please subject to the nameplate on the device.
