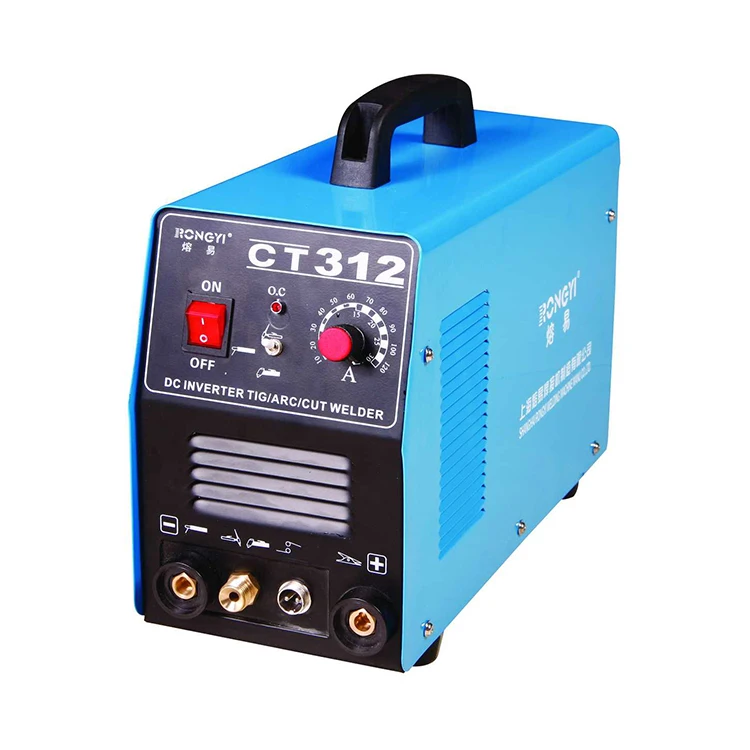

CT312 Inverter DC TIG/MMA/CUT 3-in-1 WELDER

Supplier: Shanghai Rongyi Welding Corporation
Region: Shanghai, China
Contact: Ms Felicia Ye
Price: $156.80 /set
Min. Order: 1 set

Click here to contact

Product details

Origin:	Made in China;	CERTIFICATE:	CE,CCC;
Supply Ability:	8000 Set/Sets per Month;	Port:	Shanghai;
Packaging Detail:	EPE (Expand Aple Polyephylene) and corrugated paper carton.;	Brand Name:	RONGYI;
Place of Origin:	Shanghai China;	Model Number:	CT312;
Payment Terms:	T/T,Western Union,Paypal;

Parameter of 3-in-1 WELDER/CUTTER (CT312)

Model Spec.	CT312
Power supply voltage	AC 220±10% V / 50~60Hz
Power supply capacity	2.2 kVA
Rated input current (TIG)	10 A
Rated input current (MMA)	15 A
Rated input current (CUT)	17 A
Output current range (TIG)	10 - 120 A
Output current range (MMA)	10 - 120 A
Output current range (CUT)	15 - 30 A
No-load voltage (TIG)	56 V
No-load voltage (MMA)	56 V
No-load voltage (CUT)	220 V
Operating voltage (TIG)	14.8 V
Operating voltage (MMA)	24.8 V
Operating voltage (CUT)	128 V
Dia. of welding rodΦ(MMA)	2.5 mm
Arc initiation way (TIG)	HF
Arc initiation way (MMA)	Touch
Arc initiation way (CUT)	HF
Protection grade provided by enclosure	IP 21
No-load loss	35 W
Cosφ (η)	0.85
Insulation grade	F
Duty cycle	60%
Efficiency	85%
Air pressure (CUT)	0.4 MPa
Gas flow (TIG)	2-5 L/min
Gas flow (CUT)	80 L/min
Cutting thickness (CUT)	1-6 mm
Weight	9.6 kg
Dimension (mm)	385155295

FEATURES of 3-in-1 WELDER/CUTTER (CT-312) :

1. Advanced inverter technology, reduced size and weight, easy to carry.
2. Novel and effecitive, and low cost;
3. Three functions in one machine, tig welding, mma welding and air plasma cutting
4. Compact and easy for operation.
5. 'D' Series are for 110/220 duel voltage input, automatic input voltage changing
6. Complete accessories: Welding torch, welding cable(3 m), earth clamp, welding holder, cutting torch, carton box

7. 220V Single phase, portable, Fan-cooled, Thermostatic protection, suitable for DIY and family use.
