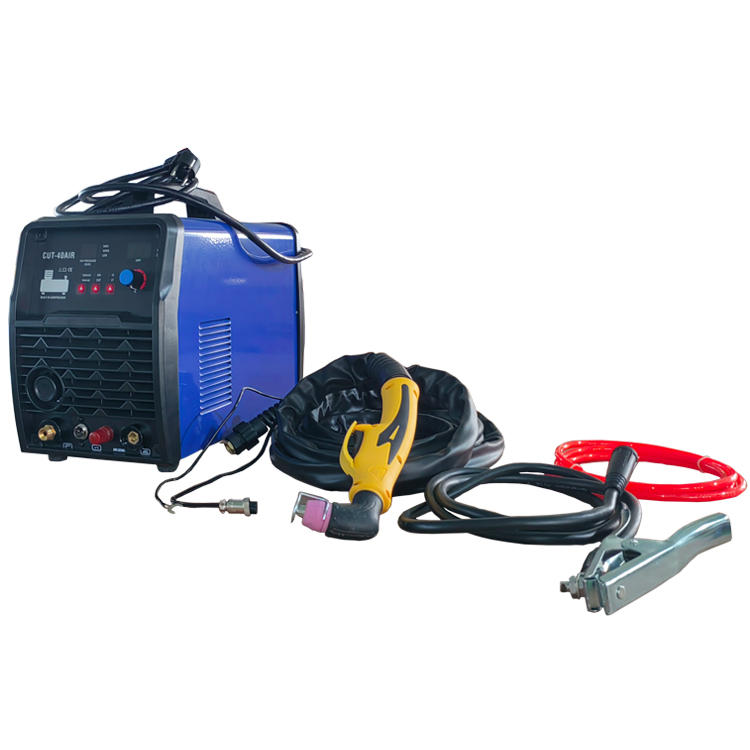

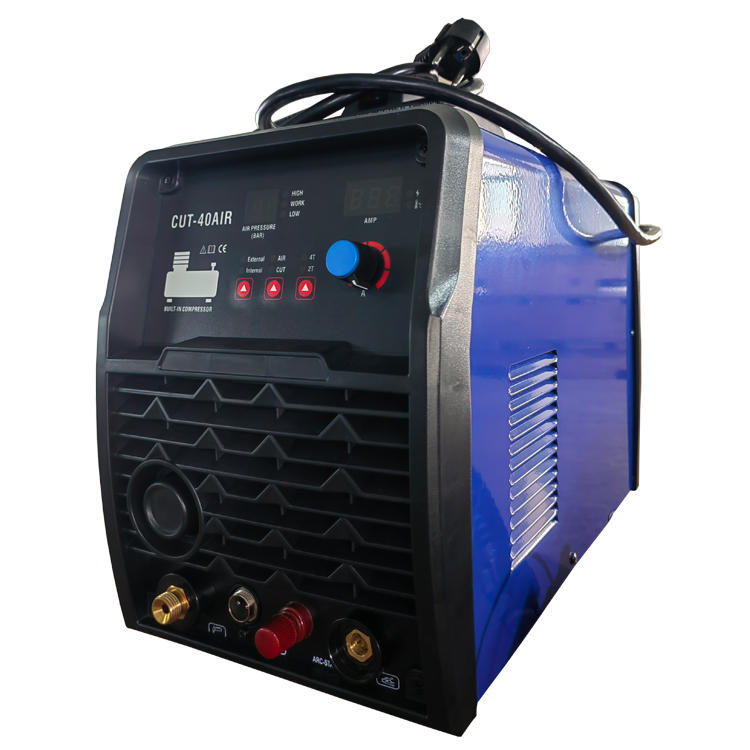

High Quality Integrated Air Compressed Plasma Steel Sheet Cutting 40 Plasma Cutting Machine Inverter Air Plasma Cutting Machine
-
Supplier: Foshan Hanzu Technologies Co., Ltd. -
Region: Guangdong, China -
Contact: Ms Bertha Zeng -
Price: $199.00 / >=2 pieces -
Min. Order: 2 pieces
Product details
| Air requirements: | 0.5Mpa | model: | CUT-40AIR |
| Packaging Details: | Standard export carton with foam plastic | Maximum input power: | 8.6kVA |
| payment terms: | Western Union, T/T | Power factor: | 0.93 |
| Origin: | Guangdong, China | port: | Shenzhen/Guangzhou |
| Input voltage (V): | AC220V±15% | weight: | 8 |
| Dimensions (LxWxH): | 445*235*315mm | Warranty: | 12 months |
| Frequency (Hz): | 50/60 | stage: | Simplex |
| Rated output current: | 70A | Cutting current: | 10-40A |
| brand: | Hanzo | Customization support: | OEM production |
| Frequency conversion technology: | IGBT inverter | Mass Thickness: | 10-12mm |
| Cutting method: | plasma cutting | Maximum input current: | 37.6A |
| Supply capacity: | 5000 sets per month |
Product parameters
Model: | CUT-40AIR | ||||||
Input voltage: | 230V | ||||||
technology: | IGBT inverter | ||||||
frequency: | 50/60 | ||||||
Power factor: | 0.93 | ||||||
Maximum input power: | 8.6kVA | ||||||
Maximum input current: | 37.6A | ||||||
Cutting current: | 10-40A | ||||||
No-load voltage: | 267V | ||||||
Output voltage (under load): | 88-100V | ||||||
Air requirements: | 0.5Mpa | ||||||
Post flow regulation: | 1.7-9s | ||||||
Insulation class: | f | ||||||
Protection class: | IP21 | ||||||
Maximum cutting thickness: | 20mm | ||||||
Mass Thickness: | 10-12mm | ||||||
Working valve pressure: | 0.-1 MPa | ||||||
ignition: | non-touch/touch | ||||||
Features
Touch Start System - Smooth arc start with high frequency control.
Rapid Arc Restrike - High quality narrow cut with excellent travel speed.
The cutting current is continuously adjusted.
Competitive cutting thickness (carbon steel) - recommended thickness: 10mm (outside gas).
Automatic post-flow stop for fast restart.
Cool operation, long consumable life – cutting accessories with competitive price and performance.
Compatible with engine drive - wide input voltage range, select the appropriate engine drive in remote areas.
compact size.
Over-voltage, over-current and over-heat automatic protection.
Energy saving - higher efficiency compared with traditional cutting machines.
Touch Start System - Smooth arc start with high frequency control.
Rapid Arc Restrike - High quality narrow cut with excellent travel speed.
The cutting current is continuously adjusted.
Competitive cutting thickness (carbon steel) - recommended thickness: 10mm (outside gas).
Automatic post-flow stop for fast restart.
Cool operation, long consumable life – cutting accessories with competitive price and performance.
Compatible with engine drive - wide input voltage range, select the appropriate engine drive in remote areas.
compact size.
Over-voltage, over-current and over-heat automatic protection.
Energy saving - higher efficiency compared with traditional cutting machines.
detailed drawing
