Product Details
| weight: | 5.1 kg | Dimensions (LxWxH): | 375*150*310 |
| payment terms: | L/C, Western Union, D/P, D/A, T/T, MoneyGram | model: | 0LGK40010208 |
| Packaging Details: | Carton Small Cutting Machine Plasma Cutting Machine Cut 40 | Warranty: | 1 year |
| Rated output current: | 40A | Customization support: | OEM production |
| stage: | single | port: | Chinese port |
| Package preview: | Origin: | Zhejiang, China | |
| brand: | Tracy | Supply capacity: | 300000 pieces per year small cutting machine plasma cutting machine cutting 40 in stock |
Product Description

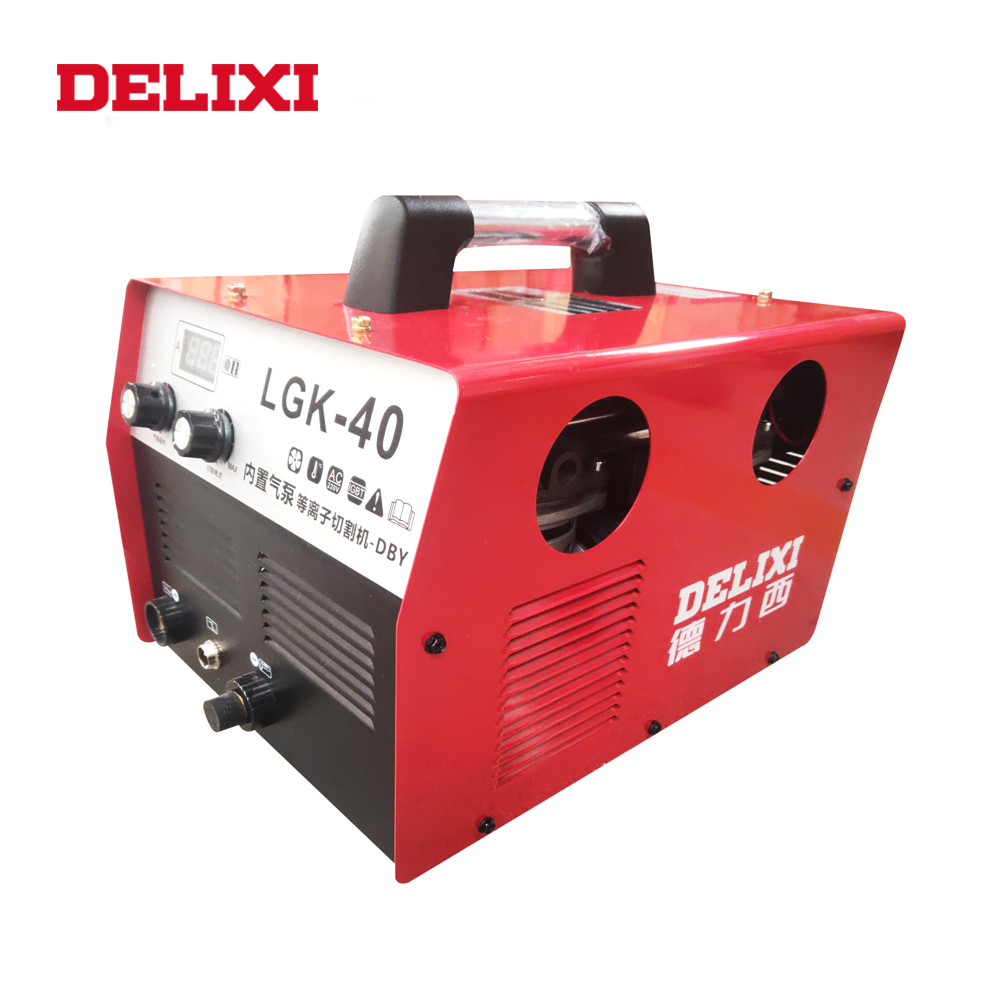

1. Picture

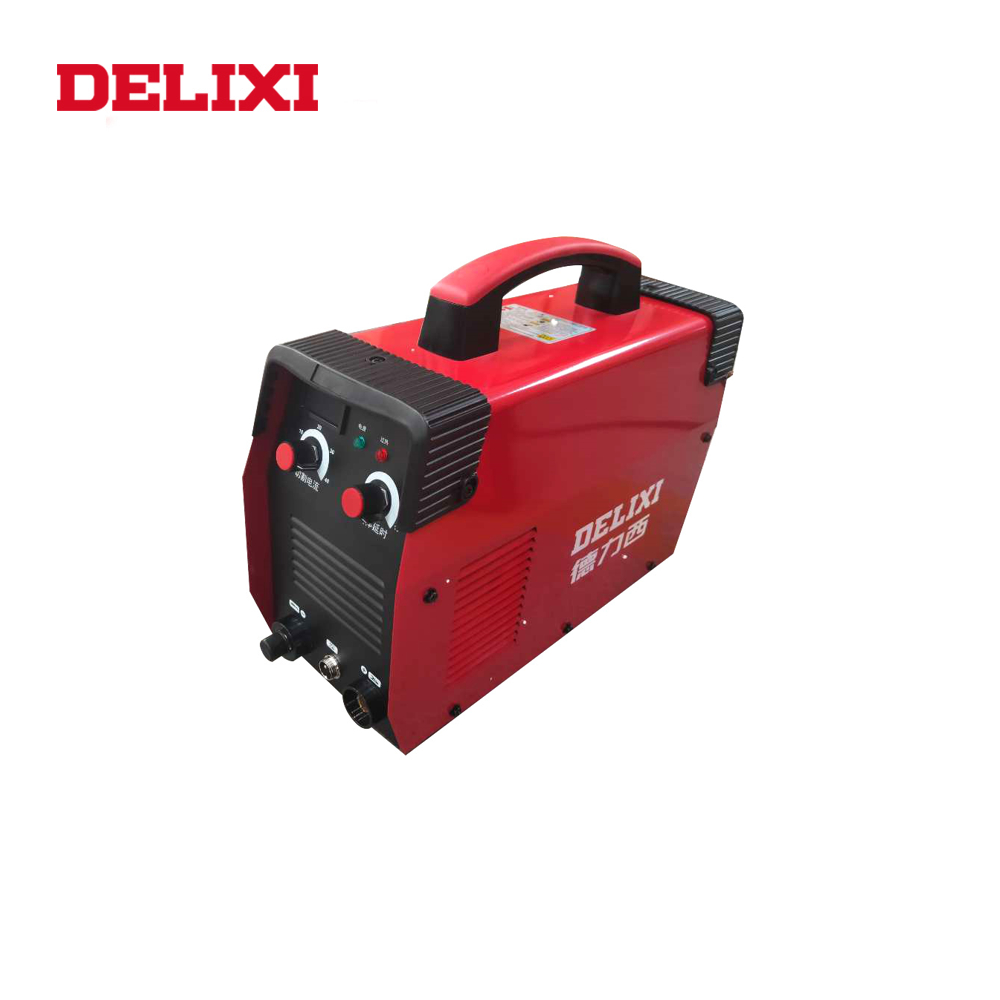

LGK-40 small cutting machine plasma cutting machine 40 knives

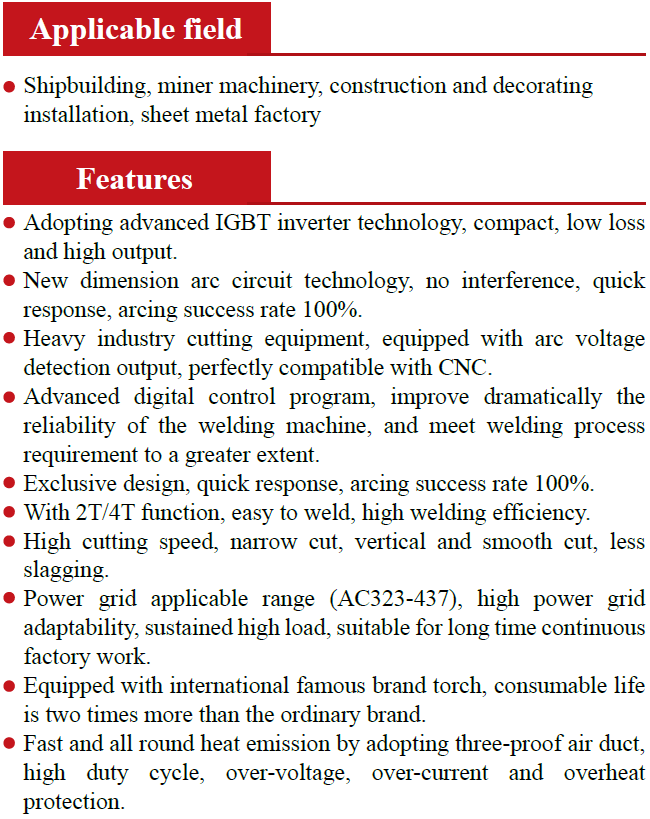

2.features
LGK-40 small cutting machine plasma cutting machine 40 knives
1. Advanced IGBT inverter technology, low power consumption and high output
2. Digital control program improves reliability
3. Fast cutting speed, narrow cutting surface, vertical and smooth cutting surface
4. Overcurrent, overvoltage, overheating protection

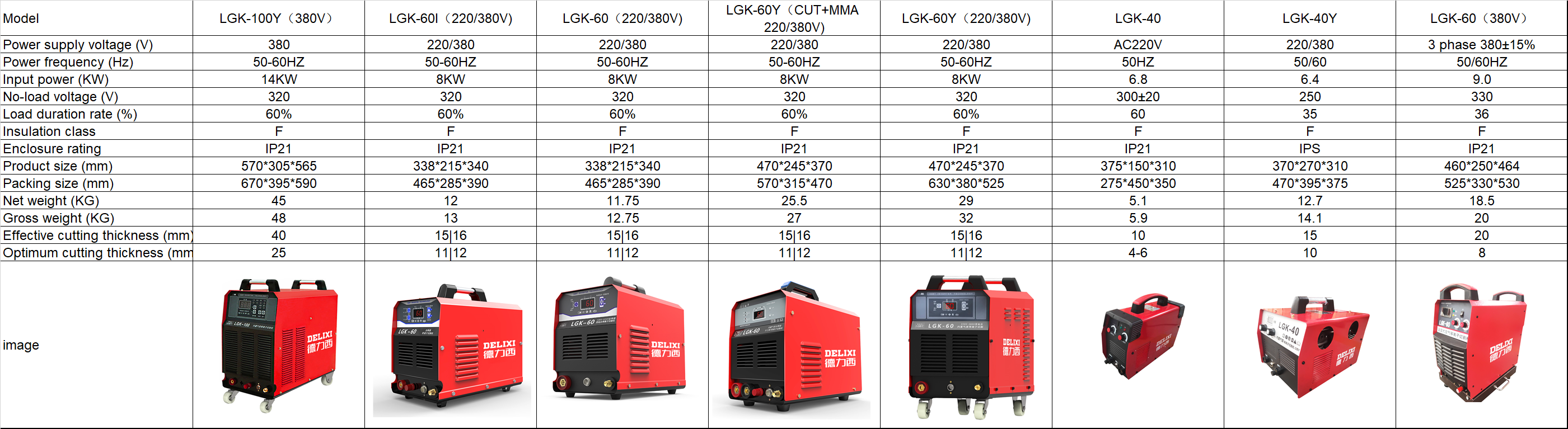

3. Specifications
LGK-40 small cutting machine plasma cutting machine 40 knives
| Model | LGK-40 | LGK-40Y |
| Power supply voltage (V) | AC220V | 220/380 |
| Power frequency (Hz) | 50 Hz | 50/60 |
| Input power(KW) | 6.8 | 6.4 |
| No-load voltage (V) | 300±20 | 250 |
| Load duration (%) | 60 | 35 |
| insulation level | f | f |
| degree of protection | IP21 | IPS |
| Product size (mm) | 375*150*310 | 370*270*310 |
| Package size (mm) | 275*450*350 | 470*395*375 |
| net weight/kg) | 5.1 | 12.7 |
| Gross weight (KG) | 5.9 | 14.1 |
| Effective cutting thickness (mm) | 10 | 15 |
| Best Cutting Thickness(mm) | 4-6 | 10 |
4. Related projects
LGK-40 small cutting machine plasma cutting machine 40 knives
