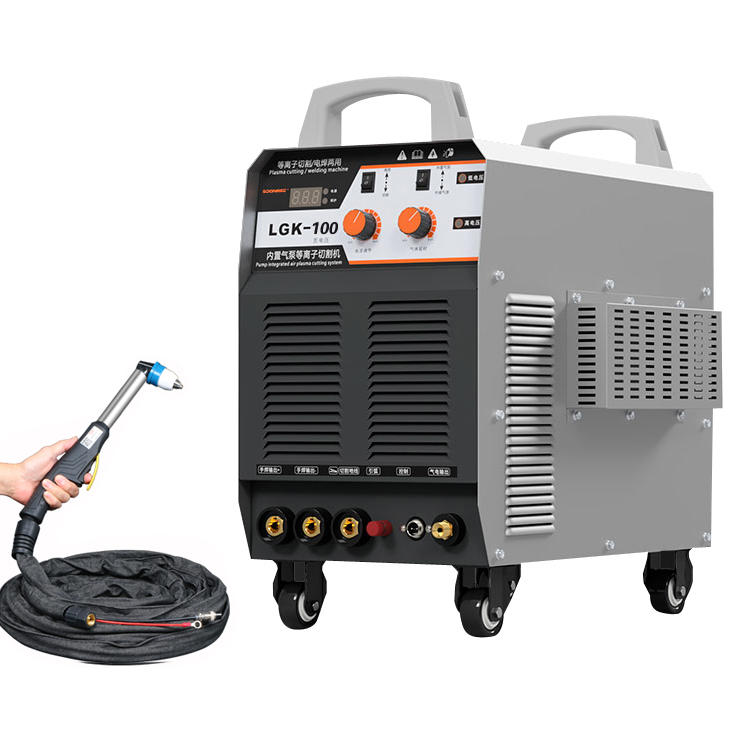

LGK-100 high-quality plasma pneumatic cutting machine perfectly cuts 1-40mm thickness materials.

Click here to contact
Product details
Origin:ChinaRated power (kW):9.6 kW
DimensionsMM:55x35x55 cmEffective cutting thickness MM:1-40MM
Package preview:model:LGK-80
payment terms:L/C, Western Union, D/P, D/A, T/T, MoneyGramFrequency Hertz:50/60
Cutting method:plasma cuttingCurrent adjustment range A:20-100
weight:35 kgRated input voltage V:380V+-15%
product name:LGK-100
Product Description
Product number
LGK-40
LGK-50
LGK-60
LGK-80
LGK-100
Rated power (kW)
~7.5 kW
~8.5 kW
~9.6 kW
～12.5 kW
～12.5 kW
power cord (A)
2x4 square meters
2x4 square meters
2x4 square meters
2x6 square meters
2x6 square meters
Current range (A)
20-40A
20-50
20-60
20-80
20-100
Input voltage (V)
220 V 50/60 Hz
220 V 50/60 Hz
220V/380V
220V/380V
380 volts
weight kg
20 kg
22 kg
23 kg
33 kg
37 kg
Applicable material
Stainless steel, carbon steel, alloy copper, copper, titanium
Stainless steel, carbon steel, alloy copper, copper, titanium
Arc mode
touch
touch
touch
contact/non-contact
contact/non-contact
Dimensions (mm)
440x270x380 mm
440x270x380 mm
440x270x380 mm
550x300x550 mm
550x300x550 mm
Cutting limit (MM)
14mm
16mm
18mm
35 mm
40 mm
Built-in cutting (MM)
1-10mm
1-12mm
1-14mm
1-30mm
1-40mm
External cutting
1-30mm
1-35mm
notes
Product data and tests may vary and are for reference only. Due to different batches, product data, appearance, packaging, color, etc. will have update differences. All products are subject to the actual product. We reserve the right to update. No further notice will be given.
