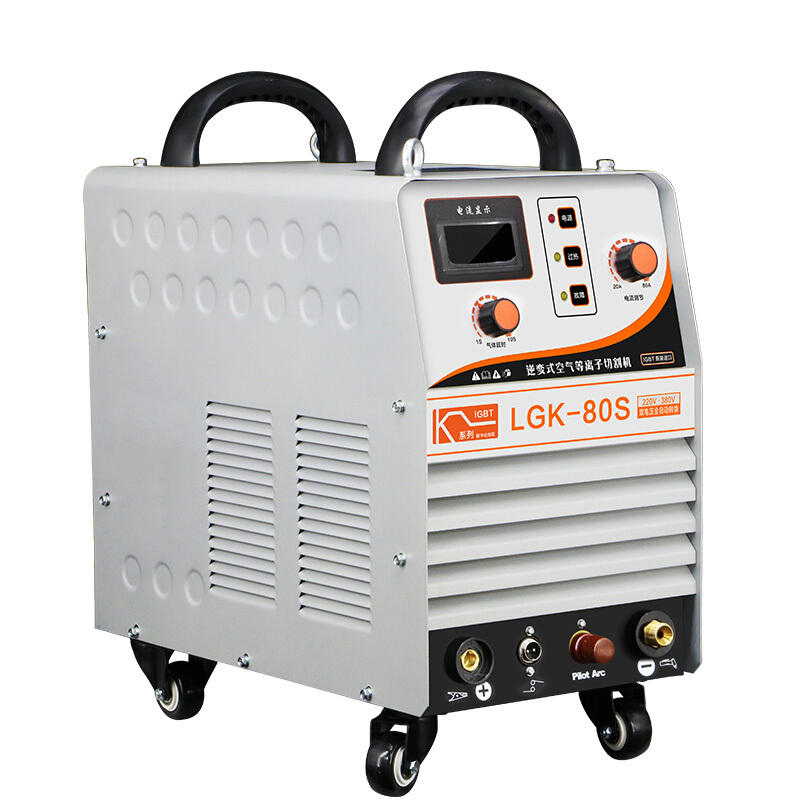

LGK-80 Industrial Grade 220V/380V Dual Purpose Welding and Cutting Plasma Cutting Machine
- 420.00 piece
Registered Supplier
Direct Contact
Inquiry via Message
Product Details
| Rated power (KW): | 9.6kW | weight: | 27kg |
| Effective cutting thickness MM: | 1-30MM | Dimensions MM: | 55x35x55cm |
| place of origin; place of origin: | China | Cutting method: | Plasma cutting + MMA |
| Rated input voltage V: | 220V 380V +-15% | Frequency Hertz: | 50/60 |
| Packaging Preview: | Current adjustment range A: | 20-80 | |
| product name: | LGK-80 | model: | LGK-80 |
| payment terms: | L/C,Western Union,D/P,D/A,T/T,MoneyGram |
Product Description
Product number | LGK-40 | LGK-50 | LGK-60 | LGK-70 | LGK-80 | ||||
Rated power (KW) | ~7.5 kW | ~8.5 kW | ~9.6 kW | ~11.5KW | ~12.5 kW | ||||
Power cord (A) | 2x4 sqm | 2x4 sqm | 2x4 sqm | 2x6 sqm | 2x6 sqm | ||||
Current range (A) | 20-40A | 20-50 | 20-60 | 20-70 | 20-80 | ||||
Input voltage (V) | 220v 50/60hz | 220v 50/60hz | 220v / 380v | 220v / 380v | 220v / 380v | ||||
Weight kg | 20kg | 22 kg | 23kg | 35 kg | 37 kg | ||||
Applicable materials | Stainless steel, carbon steel, alloy copper, copper, titanium | Stainless steel, carbon steel, alloy copper, copper, titanium | |||||||
arc mode | touch | touch | touch | contact/non-contact | contact/non-contact | ||||
Dimensions (mm) | 440x270x380mm | 440x270x380mm | 440x270x380mm | 550x300x550mm | 550x300x550mm | ||||
Cutting limit (MM) | 14mm | 16mm | 18mm | 30 mm | 35mm | ||||
Built-in cutting (MM) | 1-10mm | 1-12mm | 1-14mm | 1-20mm | 1-30mm | ||||
exocut | 1-25mm | 1-30mm | |||||||
Due to different batches, the appearance, packaging and data of the product are subject to the actual product.
