Plasma cutting machine with built-in air pump 380V 220V 60A 80A 100A 120A

Supplier: Shanghai Sanyu Industry Co., Ltd.
Region: Shanghai, China
Contact: Mr Alan Ji
Price: $225.00 /unit
Min. Order: 1 unit

Click here to contact

Product details

Packaging Details:	Export standard carton or plywood box	place of origin; place of origin:	China
color:	red or white	No-load voltage (V):	250~310V
model:	cut	application:	Mild steel, stainless steel, copper
Cutting thickness:	1~40mm	Customization support:	OEM production
weight:	20~100KG	brand:	Sanyu
stage:	3 phase or 1 phase	Rated output current:	20~120A
Package preview:		payment terms:	L/C, Western Union, T/T, MoneyGram, PayPal
Warranty:	12 months	Supply capacity:	30000 sets per month
Dimensions (LxWxH):	585315650	Cutting method:	plasma cutting
port:	Shanghai port

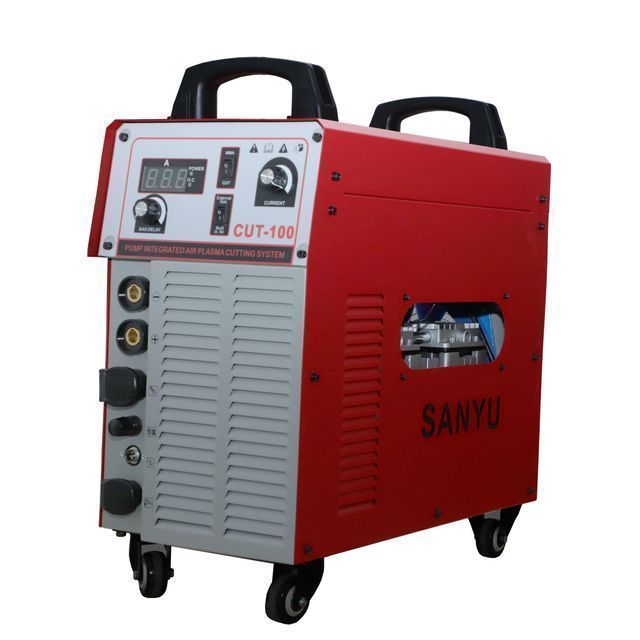

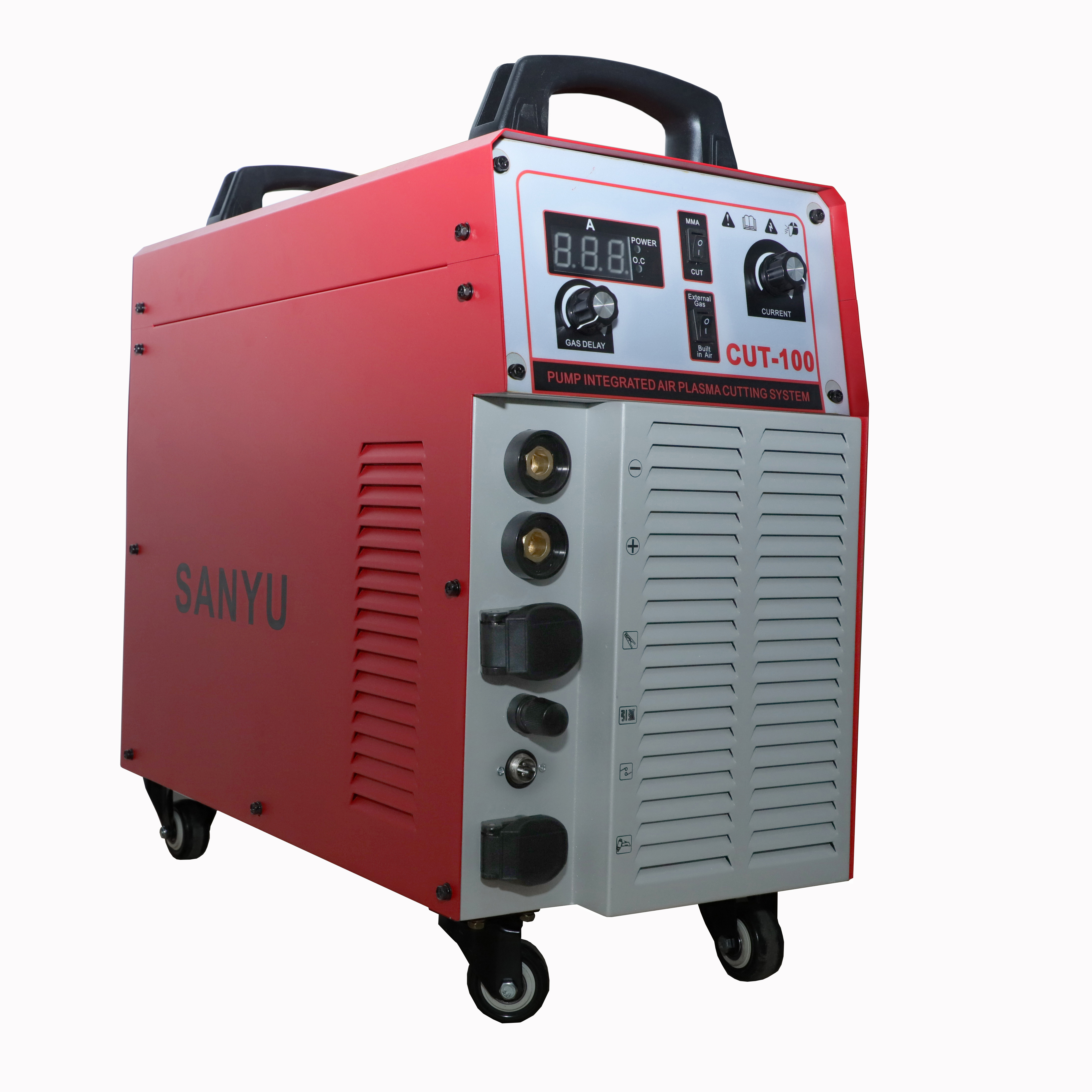

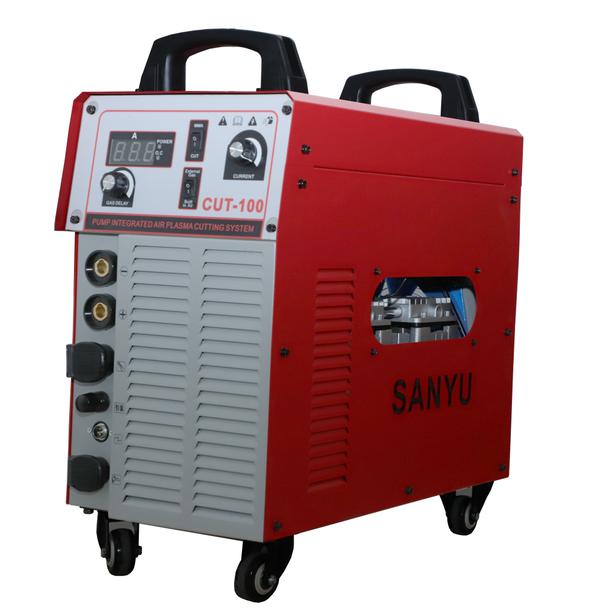

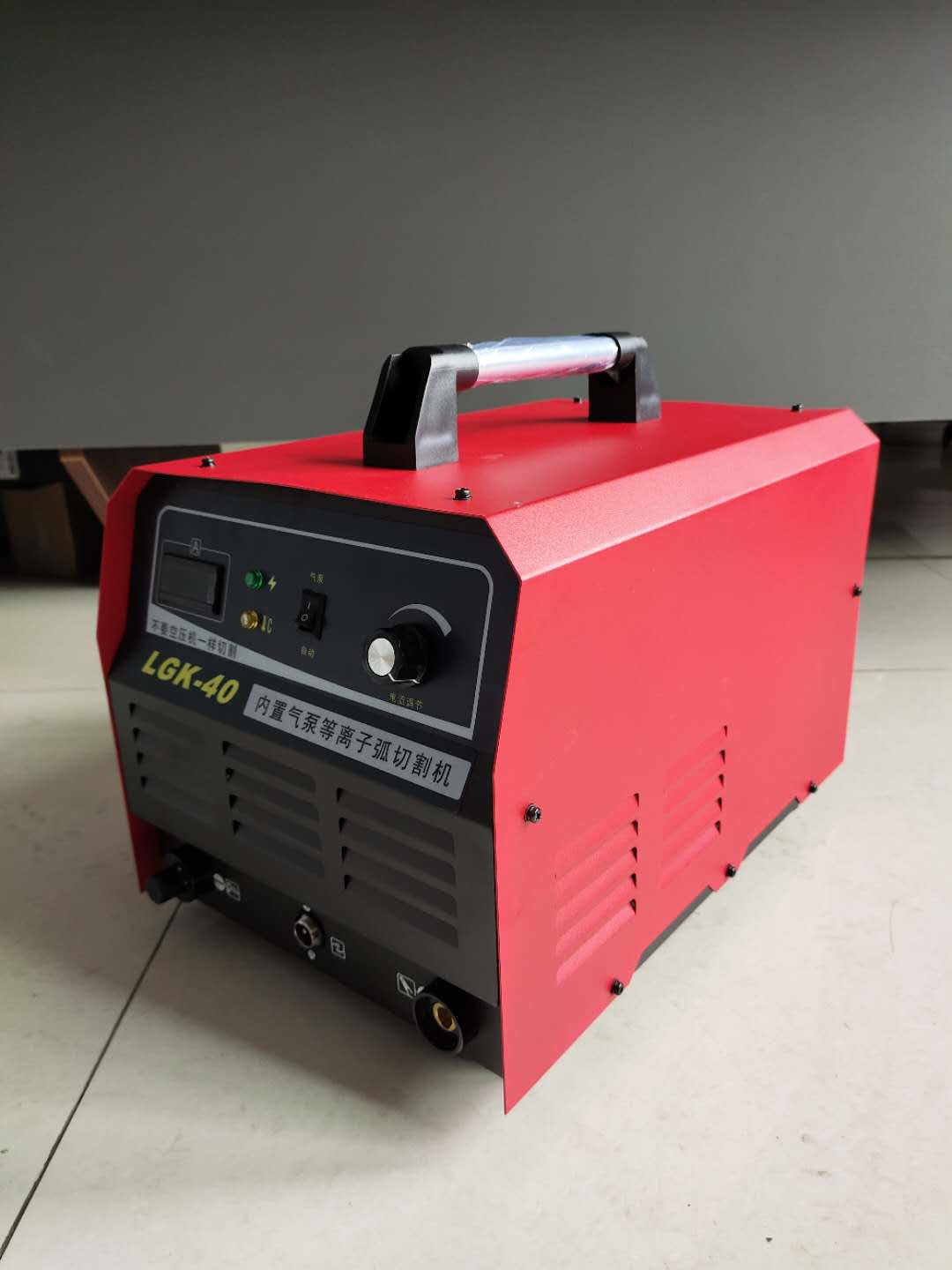

380V 220V Built-in Air Pump Plasma Cutter Cutting Machine

40A 60A 80A 100A 120A

1. Features:

1. High-frequency arcing, high arcing success rate;

2. The cutting speed is fast, the cutting gap is narrow and clean, and there is no grid.

3. It has the function of arc ignition, which can cut the plate into various shapes;

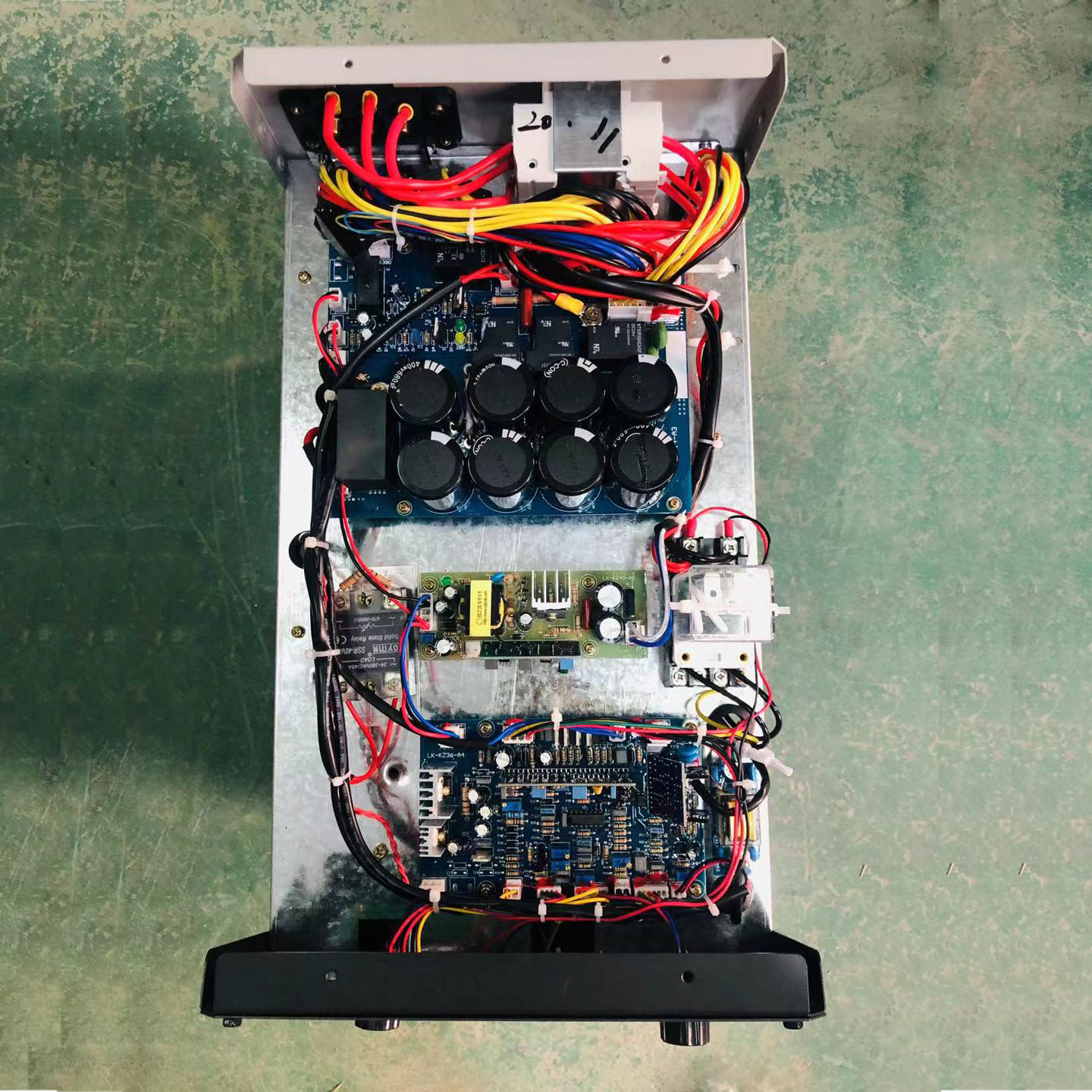

4. International brand mosfet and rectifier;

5. High duty cycle, energy saving, high reliability;

6. Suitable for different kinds of metals, such as carbon steel, stainless steel, copper, aluminum, etc.

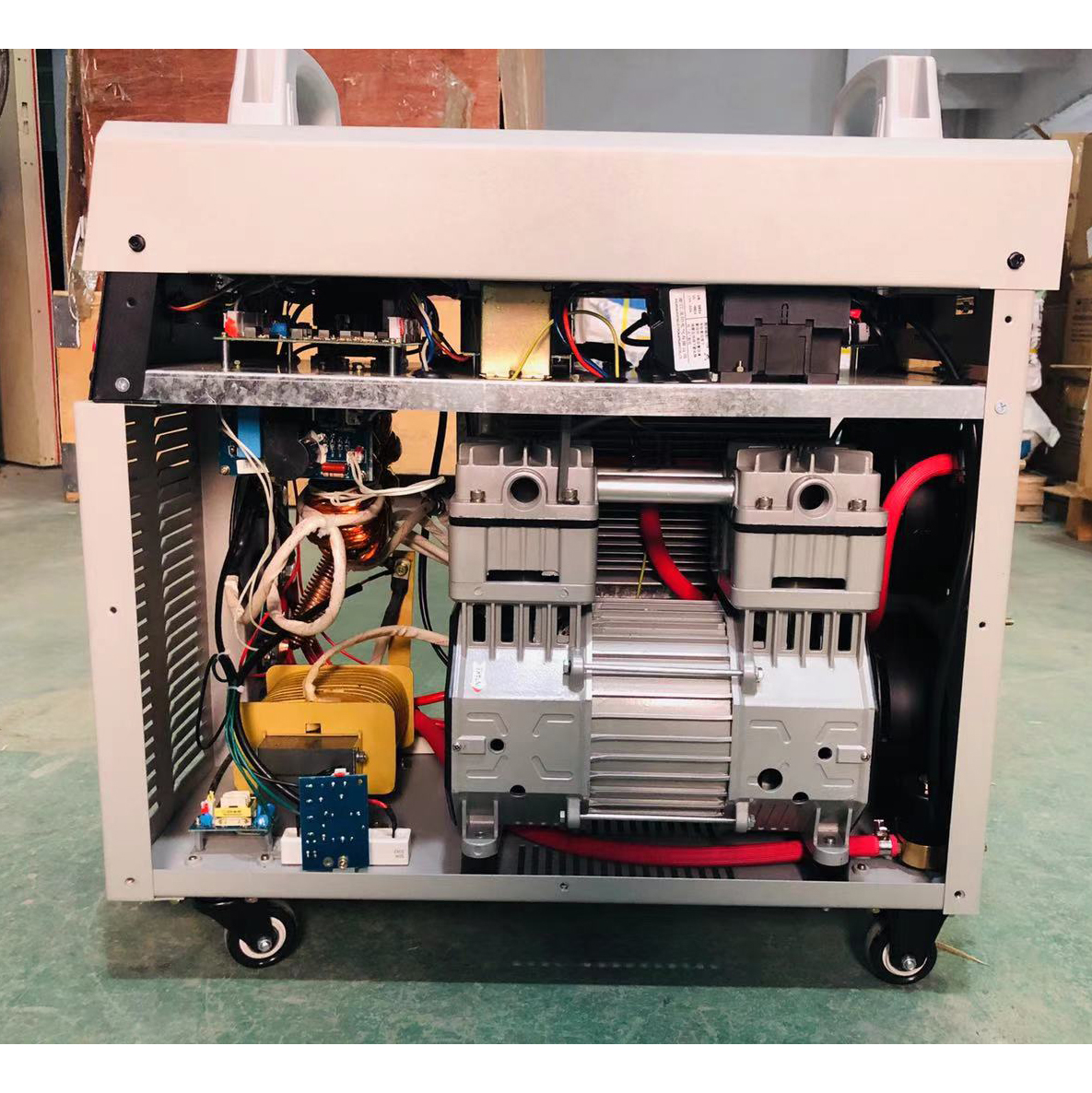

7. Built-in air pump, more convenient to use.

2. Specifications:

Model	CUT-40	CUT-60	CUT-80	CUT-100	CUT-120
voltage	230±10%	380±10%	380±10%	380±10%	380±10%
Rated input capacity	6	7.8	11	15	19
frequency	50	50	50	50	50
Rated input current (CUT)	20	11	16	21.3	27.3
Rated input current (MMA)	0	10	11	13.3	15.5
efficiency	85%	85%	85%	85%	85%
Cutting current range (CUT)	20-40	20-60	20-80	20-100	20-120
Welding current range (MMA)	\	30-200	30-220	30-250	30-280
Duty cycle (40ºC 10min)	40%	40%	40%	60%	60%
no-load voltage	250	280	280	310	310
cutting thickness	10mm	18mm	25mm	30mm	40mm
intellectual property	IP21S	IP21S	IP21S	IP21S	IP21S
insulation level	Second	Second	Second	Second	Second
Cooling method	Fan & Air	Fan & Air	Fan & Air	Fan & Air	Fan & Air
size	440280290	465280510	540280580	585315650	585315650
net weight	20	35	49	62	62

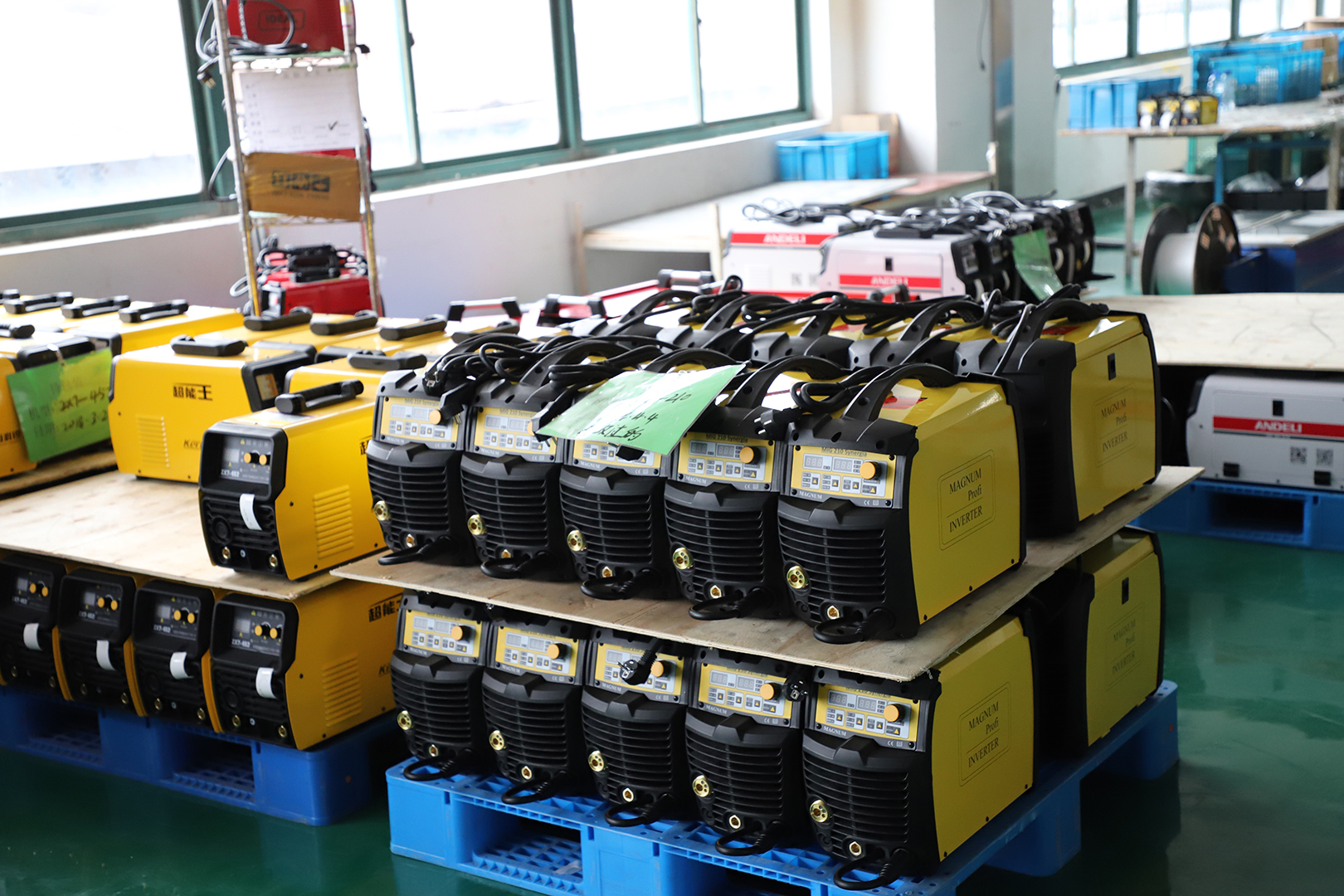

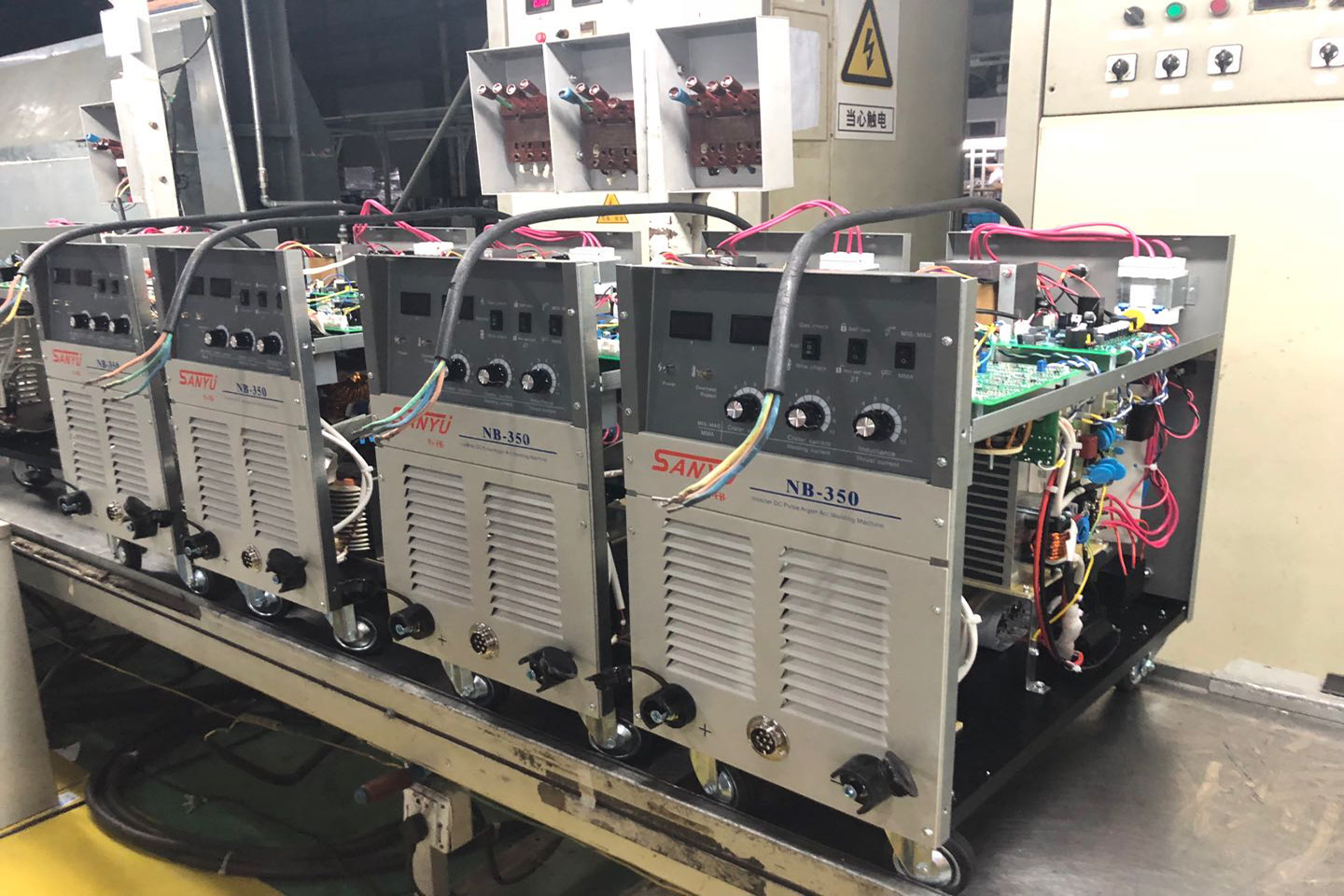

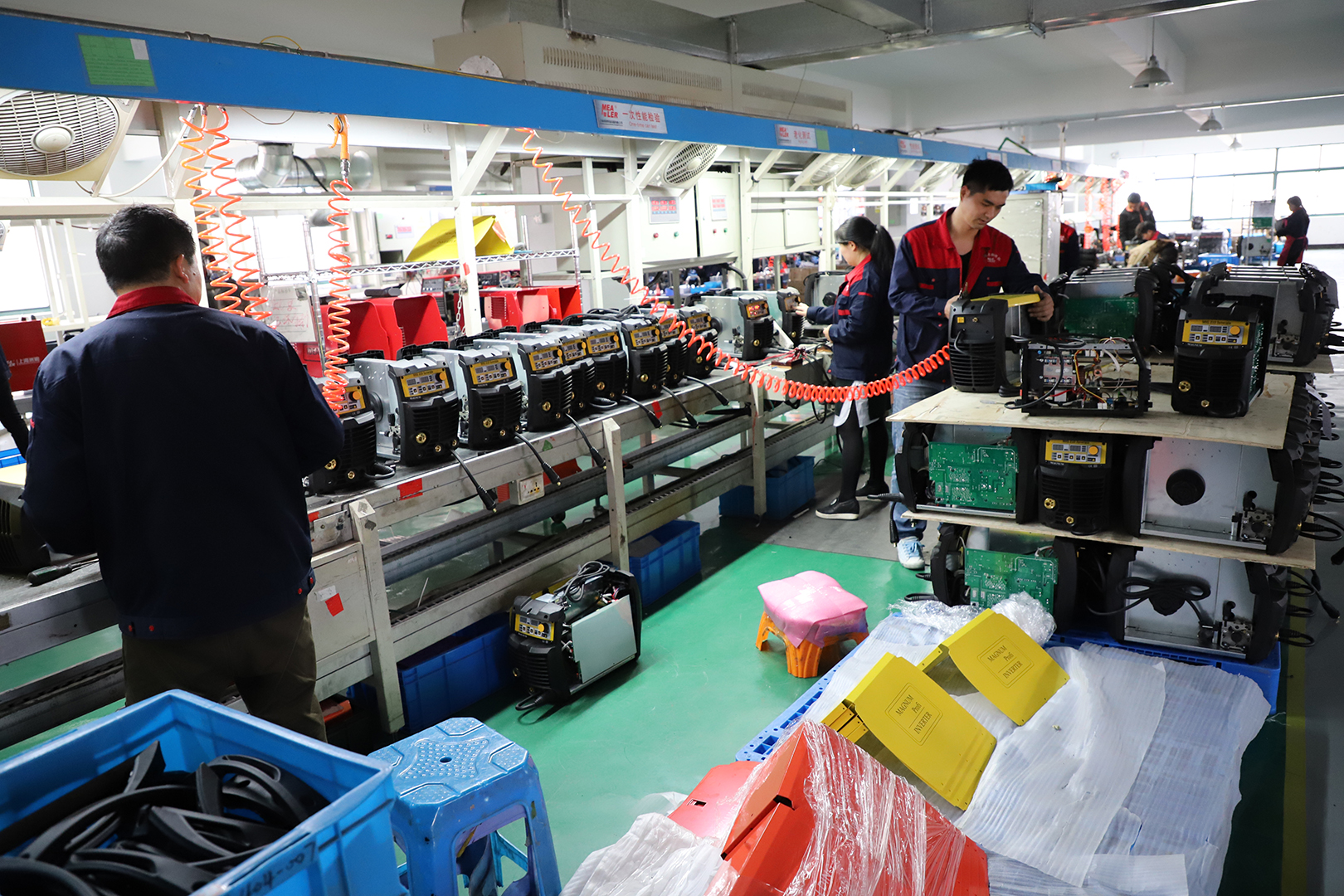

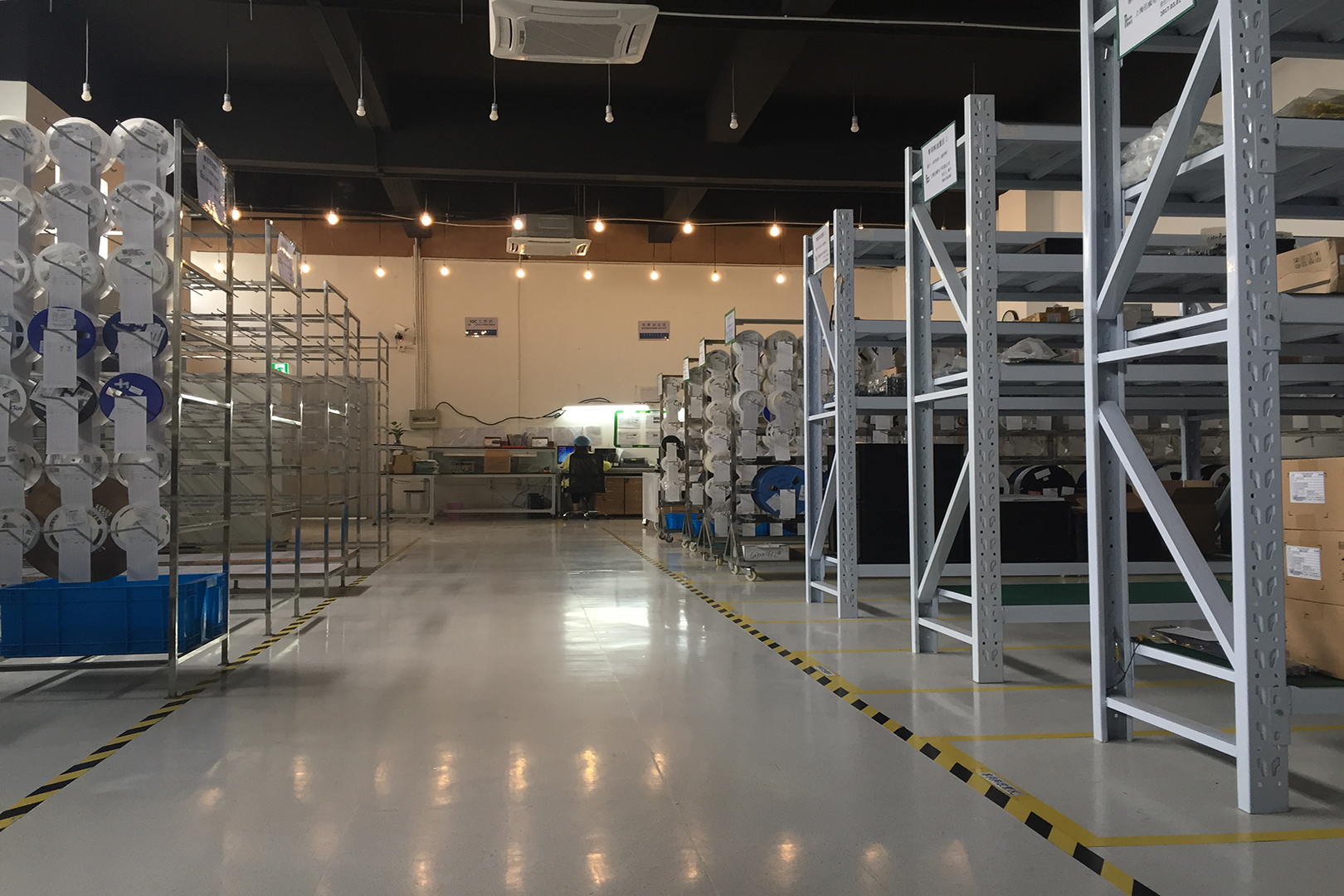

2. Company presentation:

3. Service:

1. Various contact methods.
2. Professional suggestions and solutions, full technical support.
3. Visit our factory

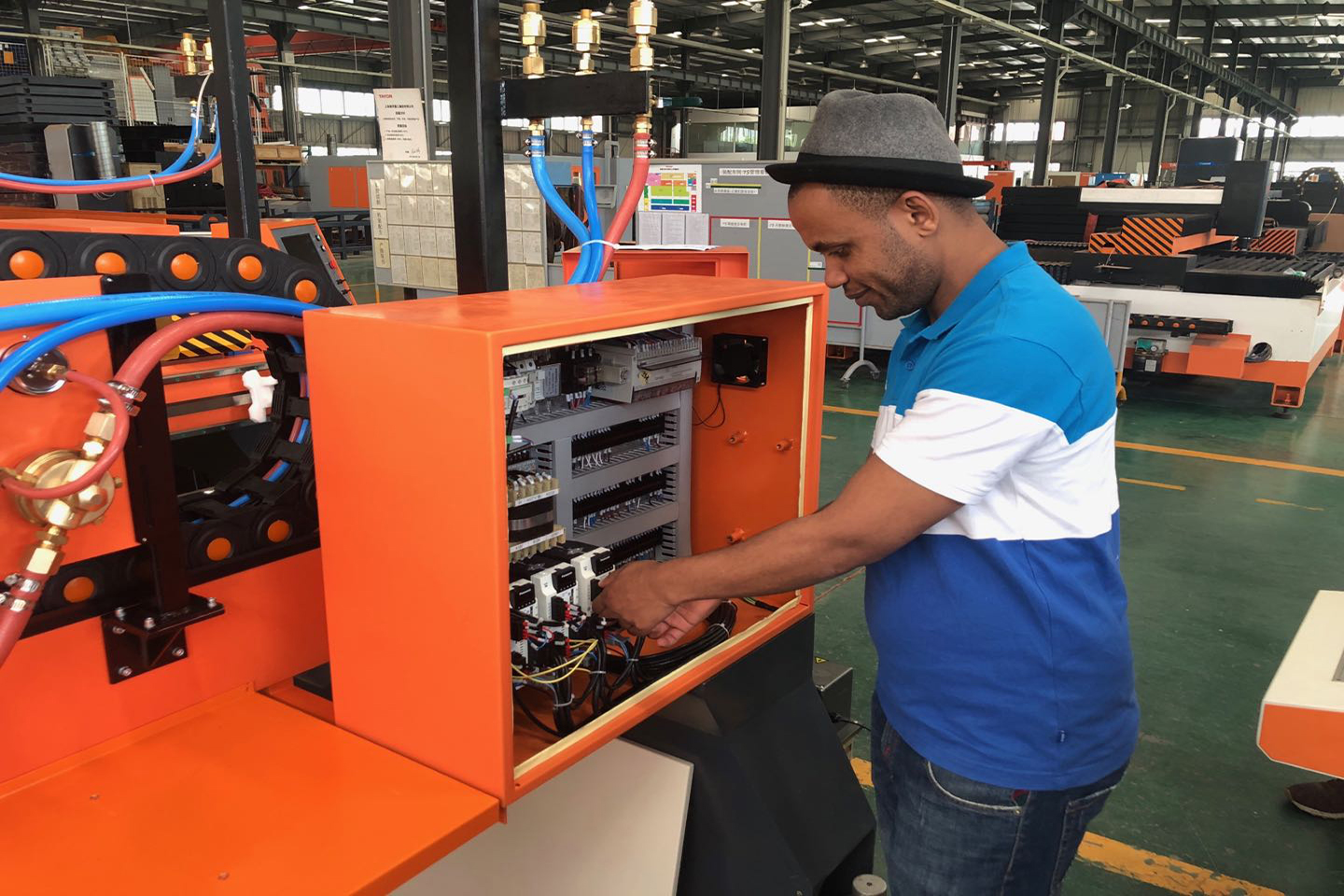

4. Training how to install and use the machine.
5. Respond to customer requests in a timely manner within 24 hours.

4. Frequently Asked Questions

Q1. Factory or trading company? What certifications do you have?
A: We are definitely a factory. We have CE, ISO9001, SGS, CCC.

Q2. Can I be your sales agent in our market?
A: Why not, welcome. If you are interested, please email me now.

Q3. What is your MOQ?
A: The MOQ is 1 set.

Q4. What will your company do for warranty?
A: All goods are 100% quality tested before shipment. We will provide 12 or 18 months warranty. During the warranty period, if the goods have any quality problems not caused by human factors, we will send parts for you to repair and replace.

Q5. Can you accept OEM order?
A: Yes, OEM/ODM orders are very welcome.

Q6. What is the payment terms?
A: We accept T/T, L/C, Western Union, cash, etc.
Usually, T/T 30% deposit and 70% balance before shipment or against the copy of B/L. 100% L/C at sight.

Q7. What packing standard?
A: For small capacity, we pack in cartons, but for large capacity, we
Pallets can be made or strong wooden boxes can be used to differentiate and protect the goods.

Q8. Why choose us?
A: 1. Chinese famous brand more than 10 years----Sanyu
2. Simple operating system ---- simple and effective software, just a touch to achieve
3. Stable performance - famous brand products always guarantee quality
4. High-quality after-sales service----24*7 online service, never leave.
5. Fast delivery----cheap and safe delivery, we have been paying attention

Q9. What is your production capacity?
A: 3000 sets per month, customized packaging is available upon request.
