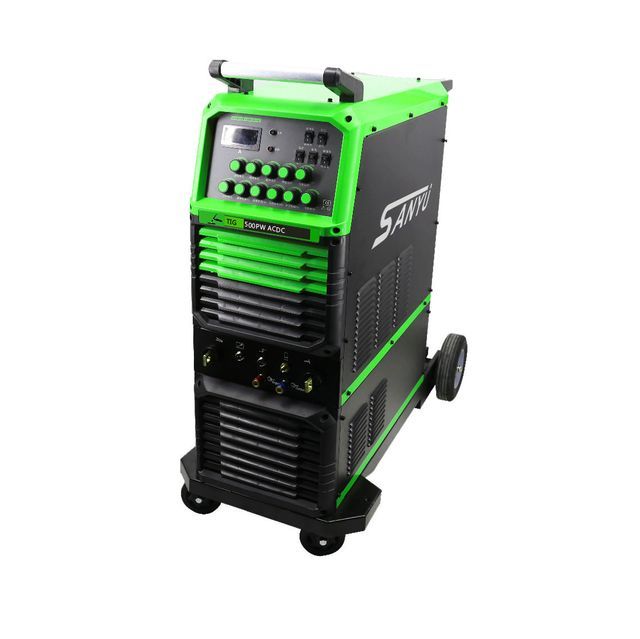

SANYU TIG-315P TIG-315PW AC/DC argon arc welding machine aluminum argon arc welding machine

Supplier: Shanghai Sanyu Industry Co., Ltd.
Region: Shanghai, China
Contact: Mr Alan Ji
Price: $600.00 / 1 - 9 sets
$570.00 / 10 - 99 sets
$540.00 / >=100 sets
Min. Order: 1 set

Click here to contact

Product details

usage:	TIG AC/DC Pulse	Health status:	new
Origin:	China Shanghai	Rated output voltage (TIG):	60V
Output polarity:	AC/DC TIG welding	Local service locations:	Indonesia
Motor type:	IGBT	Applicable industries:	Building materials store, machinery repair shop, retail
remote control:	Yes	Packaging Details:	carton
Supply capacity:	1000 sets per month	Welding current/voltage range:	5-315A
payment terms:	L/C, Western Union, D/P, D/A, T/T	Main selling points:	long lasting
Weight (kg):	35 kg	After Warranty Service:	Video technical support
efficiency:	85	Rated duty cycle (TIG) at 40°C:	60%
Warranty:	12 months	feature:	Comprehensive display
Rated output current (TIG):	315A	Rated input voltage:	380 volts
Marketing Type:	normal product	Video outbound inspection:	if
port:	Shanghai	Pulse frequency:	therefore
Material/Metal Processing:	Carbon steel, stainless steel, aluminum alloy	Mechanical test report:	not available
maximum. Load power capacity:	9.2KVA	brand:	Sanyu
aspect:	570mm364mm302mm

SANYU TIG-315P AC/DC argon arc welding machine aluminum argon arc welding machine

company information

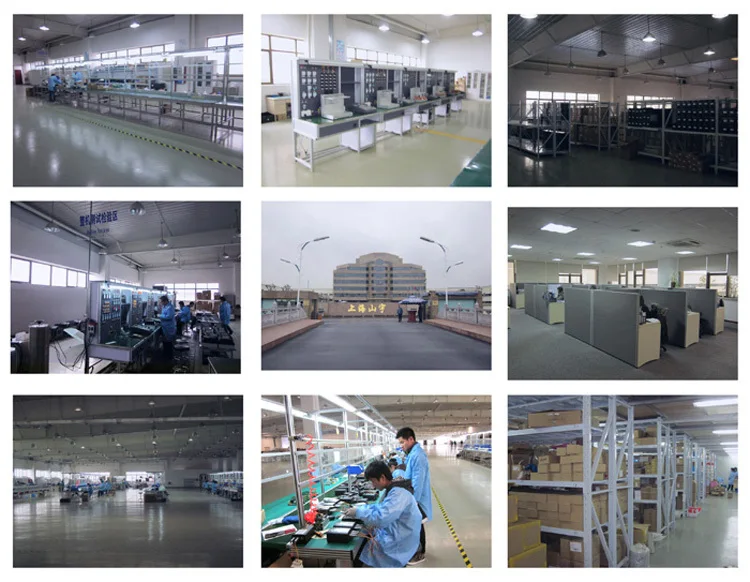

Shanghai Sanyu is one of the leading manufacturers and exporters of AC drives, soft starters and welding machines in Shanghai, China, with about twenty years of history in this field.

So far, our products have been exported to more than 30 countries.

Our inverters and soft starters are used in "Beijing Olympic Center, Shanghai World Expo, Shanghai Airport" and so on.

We have CE, ISO9001, SGS, CCC certificates, etc.

Successfully developed SY6600 series, SY7000 series, SY8000 series, SY8600 series inverters, soft starters SJR2-2000 series economical, SJR2-5000 intelligent, SJR2-3000 built-in bypass.

Product Description

Detailed introduction of SANYU TIG-315P AC/DC argon arc welding machine

1. High power, high duty cycle, continuous welding;
2. With communication function, suitable for welding aluminum;
3. 2T/4T, can be controlled remotely;
4. With pulse function, the pulse frequency is adjustable;
5. Adopt advanced MOSFET/IGBT technology, high power and high duty cycle;
6. High-frequency arc starting, high success rate, stable arc and high welding penetration;
7. The welding range is wide, suitable for various welding process requirements;
8. Suitable for welding carbon steel, stainless steel, copper, aluminum and other metals.
