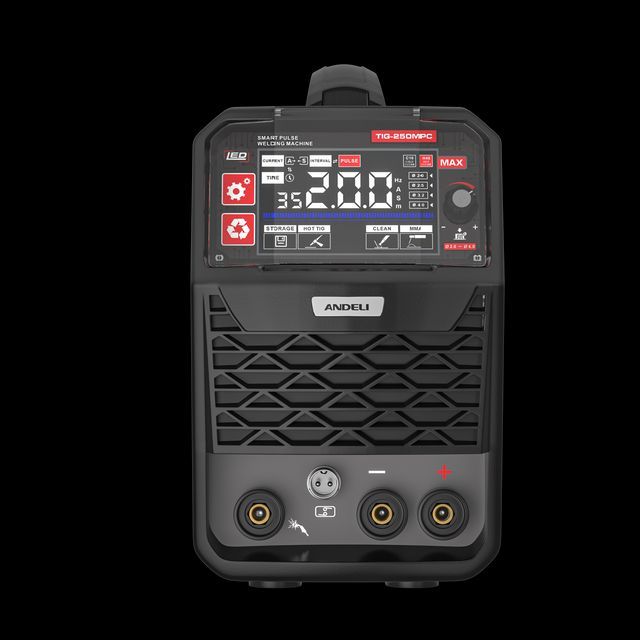

ANDELI new product Tig-250MPC 4IN 1 Mig TIG lift tig clean welding machine
-
Supplier: Andeli Group Wenzhou Import Export Co., Ltd. -
Region: Zhejiang, China -
Contact: Ms XIN ZI WAN -
Price: $142.00 / 1 - 4 pieces
$134.00 / >=5 pieces -
Min. Order: 1 piece
Product details
| payment terms: | Letter of credit, wire transfer | Motor type: | DC |
| Warranty: | 2 years | maximum. Load power capacity: | other |
| brand: | Andre | Rated output current (TIG): | 200A |
| Main selling points: | Easy to operate | Applicable industries: | Clothing Stores, Building Materials Stores, Machinery Repair Shops, Manufacturing Factories, Household, Construction Engineering, Energy and Mining, Others |
| Pulse frequency: | 50/60 Hz | feature: | inverter |
| Place of origin: | Zhejiang, China | Rated input voltage: | 220 volts |
| Output polarity: | DC argon arc welding | Video outbound inspection: | if |
| Rated output voltage (TIG): | 24V | Health status: | new |
| Materials/Metal Processing: | Carbon steel, stainless steel, aluminum alloy | Rated duty cycle (TIG) at 40°C: | 60% |
| Weight (kg): | 15kg |
Product Description
IGBT high-frequency soft switching conversion, high efficiency, small size, and light weight; the advanced control scheme significantly improves the performance of the welding machine and meets the welding process requirements to a greater extent. Manual welding, ordinary argon arc welding, cold welding, and cleaning The machine is multi-purpose; 4. Cold welding is suitable for spot welding of thin plates, the workpiece does not change color, and has a cleaning function. It is easy to clean the color of the workpiece after ordinary argon arc welding, the arc is stable, and the welding quality is high; Manual arc welding ~ small spatter, stable current , high reliability, good welding seam formation; digital panel adjustment, complete functions, multi-parameter adjustment
Specification
thing | TIG-250MPC | ||||||
Rated input voltage (V) | 1PH 110V±15%,50/60Hz | 1PH 110V±15%, 50/60Hz | 1PH 220V±15%,50/60Hz | 1PH 220V±15%,50/60Hz | |||
Function | mixed martial arts | argon arc welding | mixed martial arts | argon arc welding | |||
Rated input power (KVA) | 4.8 | 3.8 | 6 | 5.1 | |||
Rated input current (A) | 43 | 34 | 27 | twenty three | |||
No-load voltage (V) | 56V | ||||||
Output current(A) | 20-130 | 20-160 | 20-160 | 20-200 | |||
Rated output | 130A/25.2V | 160A/16.4V | 160A/26.4V | 200A/18V | |||
Rated working duration (%)70 FWeightKg) | 40% | ||||||
efficiency(%) | 70 | ||||||
Insulation level | F | ||||||
Protection level | IP21 | ||||||
