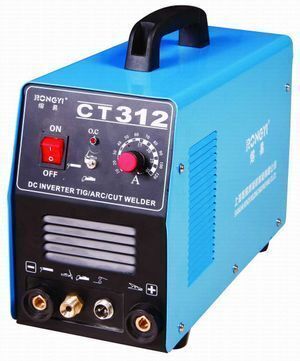

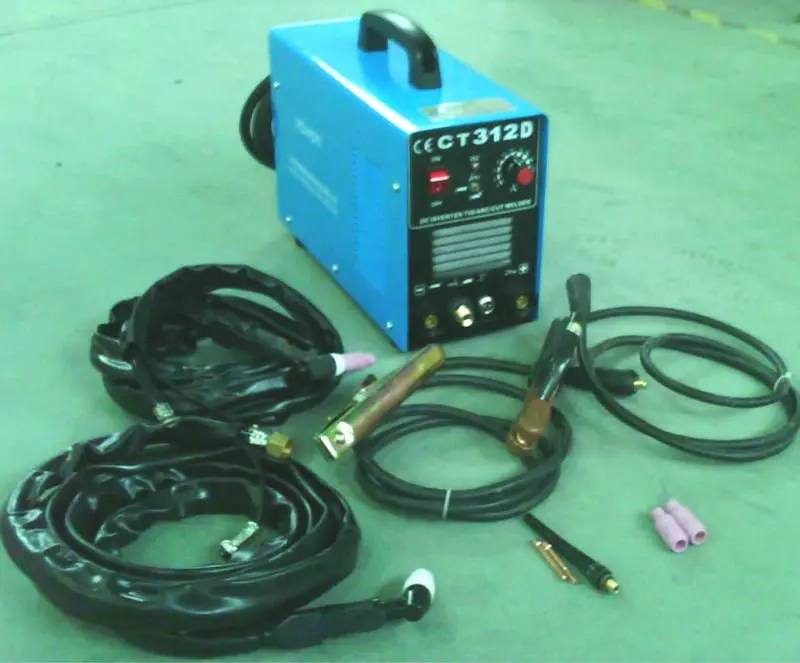

CT312D Dual Voltage Mma DC Tig Welding Machine For Sale

Click here to contact

Product details

Supply Ability:	3000 Set/Sets per Month;	Brand Name:	Rongyi;
Port:	Shanghai;	Color:	Blue;
Packaging Detail:	EPE (Expand Aple Polyephylene) and corrugated paper box.;	Rated Output Current:	27A;
Weight:	12.4KG;	Dimension (L x W x H):	582320468;
Model Number:	CT-312D;	Place of Origin:	Shanghai China;
Payment Terms:	T/T,Western Union,Paypal;

Features of multi purpose DC TIG/MMA/CUT welding machine CT312D:

1. Advanced MOSFET inverter technology, high working efficiency, DC output;

2. Compact structure, convenient to carry, reliable and durable, easy for maintenance;

3. Multi-function of TIG and MMA welder as well as air plasma cutting;

4. We also can provide 110/220 v duel automatic input voltage shift; or 110v voltage input,

5. Air cooling, thermostatic protection, suitable for DIY;

Parameters of multi purpose welding machine CT312D:

Model Spec.	CT312D
Power supply voltage	1-ph AC 110±10% V / 50~60Hz
	1-ph AC 220±10% V / 50~60Hz
Power supply capacity	2.2 kVA
Rated input current (TIG)	10 A
Rated input current (MMA)	15 A
Rated input current (CUT)	17 A
Output current range (TIG)	10 - 120 A
Output current range (MMA)	10 - 120 A
Output current range (CUT)	15 - 30 A
No-load voltage (TIG)	56 V
No-load voltage (MMA)	56 V
No-load voltage (CUT)	220 V
Operating voltage (TIG)	14.8 V
Operating voltage (MMA)	24.8 V
Operating voltage (CUT)	128 V
Dia. of welding rodΦ(MMA)	2.5 mm
Arc initiation way (TIG)	HF
Arc initiation way (MMA)	Touch
Arc initiation way (CUT)	HF
Protection grade provided by enclosure	IP 21
No-load loss	35 W
Cosφ (η)	0.85
Insulation grade	F
Duty cycle	60%
Efficiency	85%
Air pressure (CUT)	0.4 MPa
Gas flow (TIG)	2-5 L/min
Gas flow (CUT)	80 L/min
Cutting thickness (CUT)	1-6 mm
Weight	9.6 kg
Dimension (mm)	385155295
