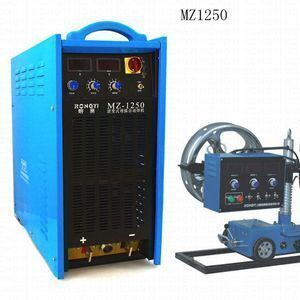

IGBT Submerged Welding equipment MZ-1250
- 800.00 >=5 sets
| Usage: | weld; | Condition: | New; |
| Showroom Location: | none; | Pilot Arc Current: | 60A; |
| Packaging Detail: | EPE (Expand Aple Polyephylene) & carton.; | Arc Current: | 1250A; |
| Brand Name: | RONGYI; | After Warranty Service: | NO SERVICE; |
| Payment Terms: | T/T; | Warranty: | 1 YEAR; |
| Local Service Location: | none; | After-sales Service Provided: | Online support,Free spare parts; |
| Port: | SHANGHAI; | Motor Type: | DC MOTOR; |
| Applicable Industries: | Building Material Shops,Machinery Repair Shops,Manufacturing Plant,Retail,Construction works ,Energy & Mining; | Supply Ability: | 8000.0 Set/Sets per Month; |
| Weight (KG): | 50 KG; | Rated Duty Cycle: | 60%; |
| Key Selling Points: | Easy to operate; | Dimensions: | 700*475*660 mm; |
| Place of Origin: | Shanghai China; |
The features of IGBT Submerged ARC Welding equipment MZ-1250:
1. IGBT inverter and precision constant current feedback control technology, soft switch, digital setup and display, low input power supply, high power factor,
2. For butt welding, fillet welding, horizontal or 10 angle slope with groove or without groove;
3. Two active wire feed speed, circumferential welding, butt welding, lab welding and fillet welding in flat position.
4. Steady arc, reliable and durable, energy saving, noiseless, easy for maintenance;
5. Excellent welding performance, wide current adjustment range;
Suitable for stainless steel, cast iron, carbon steel, alloy metal, etc
The parameters of IGBT Submerged ARC Welding equipment MZ-1250:
Model Spec. | MZ-1250 |
Power supply voltage | AC 380±10% V / 50~60Hz |
Power supply capacity | 66 kVA |
Power supply current | 105 A |
Current range | 60-1250 A |
Duty cycle | 100% |
Cosφ (η) | 0.95 |
Full-load efficiency | 92% |
Diagram of wire | 2-6 mm |
Protection grade | IP21 S |
Insulation grade | F |
Weight of power source | 95.6 kg |
Weight of trolley | 56.1 kg |
* BUY WITH CONFIDENCE.
* QUALITY MACHINES MANUFACTURED BY RONGYI.
* FULL SERVICE AND PARTS BACK UP.
* 12 MONTHS WARRANTY.
The data in the above table is only for reference. Please subject to the nameplate
on the device.
