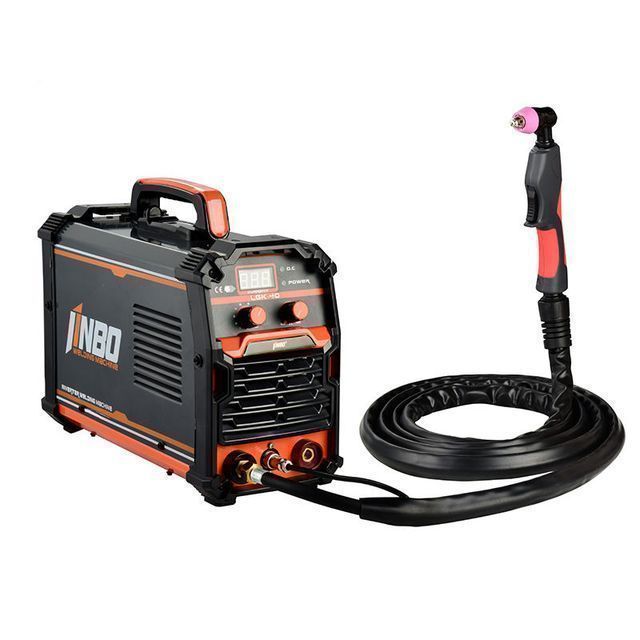

Jinbo Portable Cutting Machine Cuts 40 Cuts 60 Air Plasma Cutting Machine For Sale

  • Supplier: Wenling Tumas Machinery Co., Ltd.
  • Region: Zhejiang, China
  • Contact: Mr Steven Tian
  • Price: $82.10 / 1 - 299 pieces
    $82.00 / >=300 pieces
  • Min. Order: 1 piece
Product details
Applicable industries:Hotels, Clothing Stores, Building Materials Stores, Machinery Repair Shops, Manufacturing Plants, Food & Beverage Plants, Restaurants, Home Use, Retail, Food Stores, Printing Shops, Construction Works, Energy & Mining, Food & Beverage Stores, Others, Advertising AgenciesPackage preview:
Weight (kg):9 kgaspect:385*165*250MM
Showroom location:AustraliaState of health:new
Main selling points:easy to operateArc strike:to touch
efficiency(%):85%Core components:Bearings, gearboxes, pressure vessels, gears, pumps
After-sales service provided:Video Technical SupportCutting thickness(mm):4-6
Certification:CE certificationPower (watts):50/60 Hz
Rated current:20-40/20-50/20-60Output current range (A):20-40
Video shipment inspection:ifNo-load voltage (V):68
MOQ:300Warranty:1 year
Input frequency (Hz):50/60payment terms:L/C, Western Union, T/T, MoneyGram
Power (kW):5.6Packaging Details:honeycomb box
Supply capacity:120,000 pieces per yearMechanical test report:if
usage:householdMarketing Type:normal product
brand:Jimboplace of origin; place of origin:Zhejiang, China
Core component warranty:1 yearport:Ningbo Port
Input voltage:220-240V

Model CUT-40A
Types of IGBT 1PCB
AC input voltage (V) AC 220V
Rated input power capacity (KVA) 4.8
Input frequency (Hz) 50/60
No-load voltage (V) 68
Output current range (A) 20-40
Rated Duty Cycle (%) 60%
efficiency(%) 85%
Insulation class f
Enclosure rating IP21
Arcing to touch
Cutting thickness(mm) 4-6
Net weight/Gross weight(kg) 6/10
Machine Dimensions (LxWxH mm) 385*165*250
Packing Dimensions (LxWxH mm)
445*265*330 honeycomb box
Accessories 1.2m 16mm 300A Cable Clamp
Cutting gun AG-60 4m pressure relief valve air pipe 2M air pipe 30MM
Masks, Brushes, Manuals
