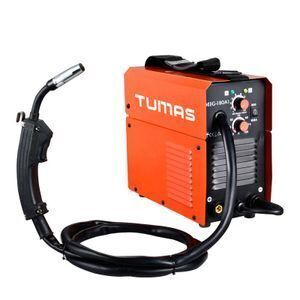

professional inverter aluminum 3 in 1 mig welders soldadura mig tig mma 250amp igbt inverter co2 mig welding machine

Click here to contact

Product details

Welding Current/Voltage Range:	20-180A;	Usage:	carbon steel, low alloy steel;
Condition:	New;	Dimensions:	315145270mm;
Power:	50/60HZ;	Single gross weight:	8.0 KG;
Selling Units:	Single item;	Place of Origin:	Zhejiang China;
Wire Feeding Speed:	18m/min;	Year:	2019;
Brand Name:	TUMAS;	Warranty:	1 Year;
Max. Load Power Capacity:	20-180A;	Rated Output Current (MIG):	180;
Material / Metal Processed:	carbon steel, low alloy steel;	Electrode diameter(mm):	1.6-3.2;
Wire diameter(mm):	0.6/0.8;	Applicable Industries:	Garment Shops,Building Material Shops,Manufacturing Plant,Energy & Mining;
Certification:	CE,ROHS;	Wire Melting Type:	Short Circuit Transfer;
Class of Insulation:	F;	Protection class of case:	IP21;
Packaging Detail:	carton/color box+foam(BMC+BOX);	Single package size:	39X21X32 cm;
Model name:	MIG-180A1;	Rated Duty Cycle @40°C (MIG):	60;
Weight:	6.5/7.5kg;	Efficiency(%):	85;
wire:	1kg;	Package Preview:	;
Rated Input Voltage:	220V(110V support);	After-sales Service Provided:	Field maintenance and repair service,Online support,Free spare parts,Field installation, commissioning and training,Video technical support;
Rated Output Voltage (MIG):	220V(110V support);	Voltage:	220V(110V support);

Model	MIG-180A1
Type	IGBT
AC Input Voltage(V)	AC 220V(110V Support)
Rated Input Power Capacity(KVA)	4.3
Input Frequency(Hz)	50/60
No-load Voltage(V)	60
Output current range(A)	20-180
Rated Duty Cycle(%)	60%
Efficiency(%)	85%
Class of Insulation	F
Protection class of case	IP21
Electrode diameter(mm)	1.6-3.2
Wire diameter(mm)	0.6/0.8
Quick joint Size(mm)	10-25
N.W./G.W.(kg)	6.5/7.5
Machine Size(LxWxH mm)	315145270
Package Dimension(LxWxH mm)	390210320 color box+foam

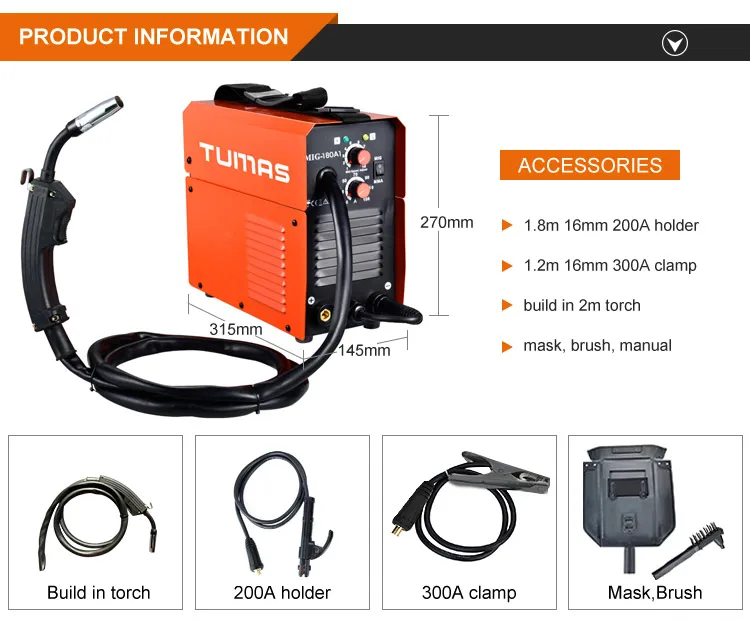

Accessories	1.8m 16mm 200A holder 1.2m 16mm 300A clamp build-in 2m torch mask, brush, manual
