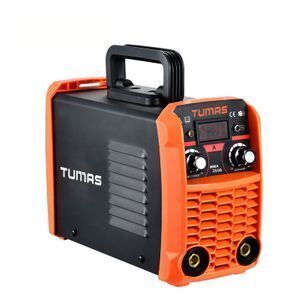

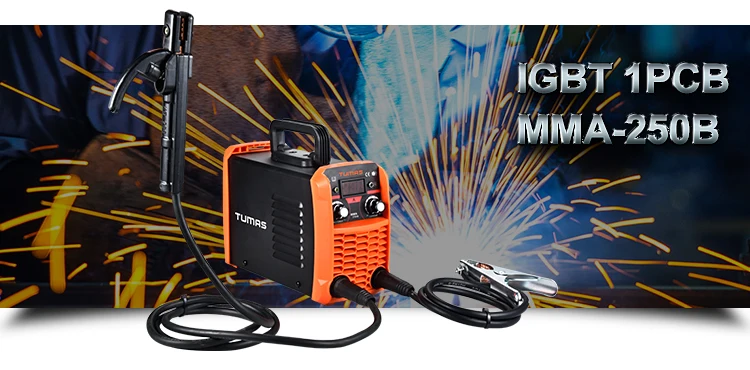

TUMAS mma 250 inverter welding machine arc welding Supplies Direct online sales

Click here to contact

Product details

Class of Insulation:	F;	Model:	MMA-200B,250B;
Type:	IGBT 1PCB;	Rated Output Current:	20-250A;
Efficiency:	85%;	Condition:	New;
Dimensions:	290120195mm;	Rated input power(KVA):	5,5.7;
Applicable Industries:	Building Material Shops,Farms,Construction works ;	Warranty:	1 year;
Place of Origin:	Zhejiang China;	Non-load Voltage(V):	60;
Port:	Ningbo;	Welding Current/Voltage Range:	20-250A;
Supply Ability:	200000 Piece/Pieces per Year;	Certification:	CE,ROHS,INTERTEK;
Rated Input Voltage:	220-240V(110V support);	Max. Load Power Capacity:	5, 5.7,KW;
Rated Duty Cycle:	60%;	Arc Current:	200,250A;
Pilot Arc Current:	200,250A;	Motor Type:	DC MOTOR;
Rated Output Voltage:	24,25V;	Rated Duty Cycle(%):	60%;
Payment Terms:	L/C,T/T,Western Union,MoneyGram;	Packaging Detail:	color box 4 in 1 kraft paper box;
Usage:	Welding;	Rated input voltage(V):	220-240V(110V Support);
Power(W):	5000,5700w;	Rated Duty Cycle @40°C:	60;
After-sales Service Provided:	Online support,Free spare parts,Field installation, commissioning and training,Field maintenance and repair service,Video technical support;	Pulse Frequency:	50/60hz;
Shell protection grade:	IP21;	Output current rang(A):	20-250;
Voltage:	220-240V(110V Support);	Brand Name:	TUMAS;

Model	MMA-200B	MMA-250B
Type	IGBT 1 PCB	IGBT 1 PCB
Rated Input Voltage(V)	220V(110V support)	220V(110V support)
Rated Input Frequency(Hz)	50/60	50/60
Rated Input Power(KVA)	5	5.7
Non-load Voltage(V)	60	60
Output current range(A)	20-200	20-250
Rated Duty Cycle(%)	60%	60%
Efficiency(%)	85%	85%
Class of Insulation	F	F
Shell protection grade	IP21	IP21
Suggested Electrode Max.(mm)	1.6-3.2	1.6-3.2
Connector Size	10-25mm	10-25mm
N.W./G.W.(kg)	2.5/4.2	2.72/4.37
Input power cable(m)	1.8	1.8
Machine Size(LxWxH mm)	290120195	290120195
Package Dimension(LxWxH mm)/1pcs	395160235 color box	395160235 color box
Package Dimension(LxWxH mm)/4pcs	395320470 kraft paper box	395320470 kraft paper box

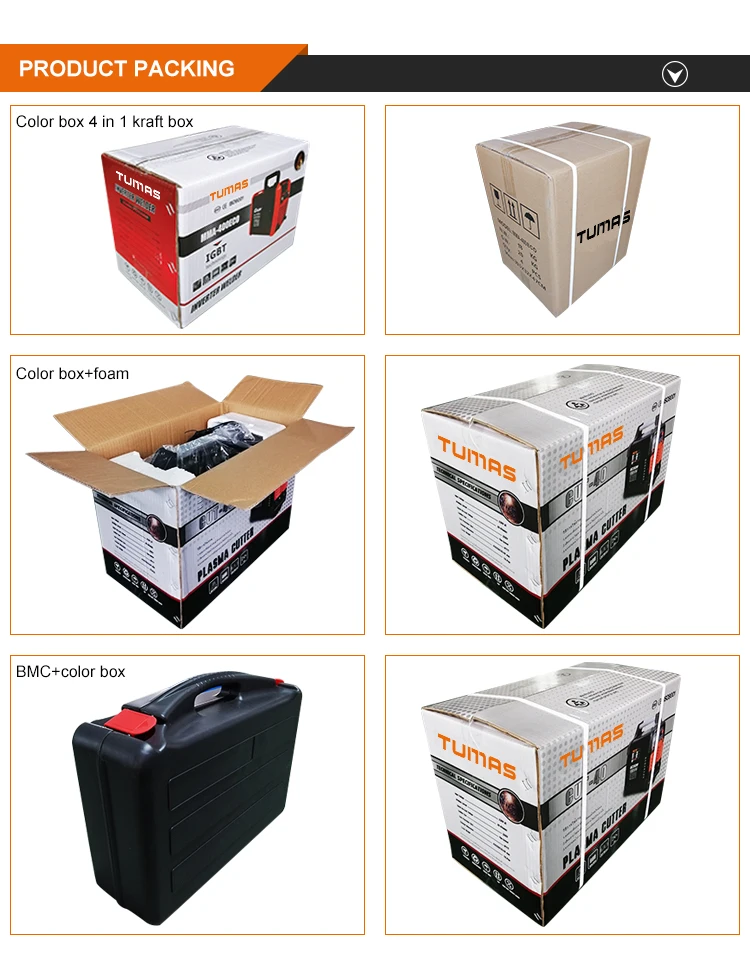

Package	4 color box in 1 kraft paper box	4 color box in 1 kraft paper box
Accessories	1.8m 16mm 200A holder 1.2m 16mm 300A clamp mask, brush, manual	1.8m 16mm 200A holder 1.2m 16mm 300A clamp mask, brush, manual
