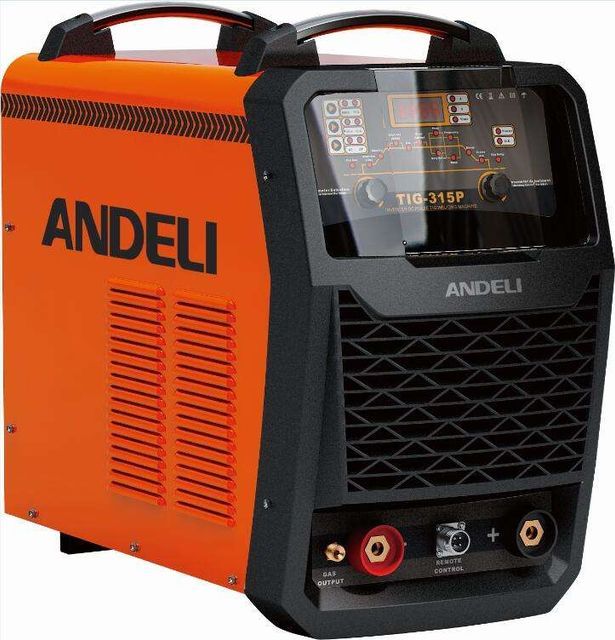

TIG315P ACDC MMA welding machine

Model

TIG-200P AC and DC

TIG-315P AC/DC

TIG-500P AC/DC

Rated input voltage (V)

1PH AC220V±15%

Three-phase AC380V±15%

Rated input power (KVA)

5.2

9

19

Rated input current (A)

23.5

13.6

28.7

Output current (A)

5-200

5-315

20-500

Driving current of MMA (A)

10-100

10-200

10-200

Base current (A)

5-200

5-315

20-500

Arcing current (A)

20-160

20-160

20-160

Duty cycle (%)

1-100

1-100

1-100

AC bias ratio (%)

-50-+30

-50-+30

-50-+30

Add frequency (HZ)

0.2-20

0.2-20

0.2-20

AC frequency (Hz)

20-100

20-200

20-100

forward- Flow time (s)

0.1-15

0.1-15

0.1-15

Gas delay time (s)

0.1-15

0.1-15

0.1-15

Current deceleration time (s)

0.1-10

0.1-10

0.1-10

Current decay time (s)

0.1-15

0.1-15

0.1-15

Clean radio (%)

-40-+40

-40-+40

-40-+40

No-load voltage (v)

65±5

74±5

79±5

Rated duty cycle (%)

(10 minutes at 40°C)

60%

200A(40%)

315A

500A

100%

126A

244A

387A

efficiency(%)

70

80

80

degree of protection

Protection class 21

Protection class 21

Protection class 21

Insulation class

f

f

f

net weight/kg)

20

47.2

75

Gross weight (kg)

twenty four

55

85

Machine size(mm)

500*210*340

642*323*573

777*380*830

Packing size (mm)

570*260*460

740*400*630

820*400*810
