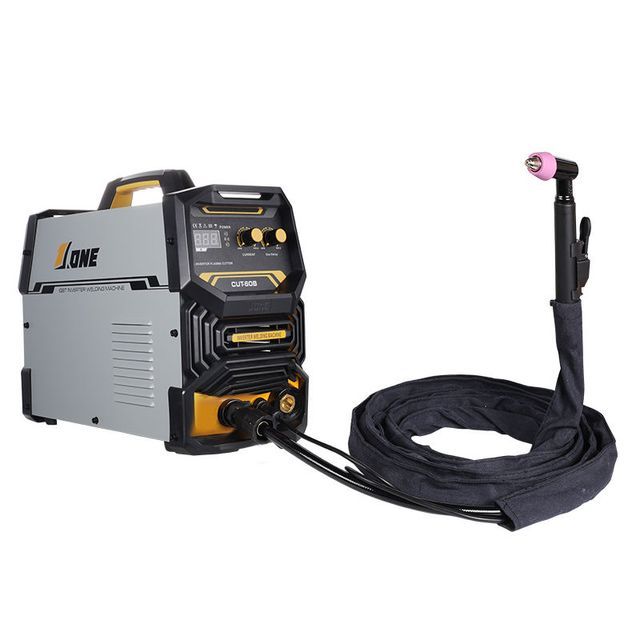

JONE welding machine plasma cutting machine

Click here to contact

Product details

Core component warranty:	1 year	Power (kW):	6.2
Warranty:	1 year	Package preview:
Showroom location:	India	Applicable industries:	Hotels, clothing stores, building supplies stores, machinery repair shops, manufacturing plants, food and beverage factories, farms, restaurants, home use, retail, food stores, printing shops, construction, energy and mining, food and beverage stores, advertising agencies
Health status:	new	Core components:	IGBT
AC input voltage (V):	AC 220V (support 110V)	Packaging Details:	Kraft paper box + foam
Weight (kg):	6 kg	Output current range (A):	20-40
Input voltage:	220V	Nominal Duty Cycle (%):	60%
Actual amplifier (A):	40	usage:	welding
Certification:	EU CE certification	Rated current:	40A
brand:	jones	Origin:	Guangdong, China
Marketing Type:	New Products for 2022	Mechanical test report:	if
Video outbound inspection:	if	After Warranty Service:	online support
payment terms:	L/C, Western Union, D/P, D/A, T/T, MoneyGram	Main selling points:	good price
type:	IGBT 1 PCB	aspect:	420160310

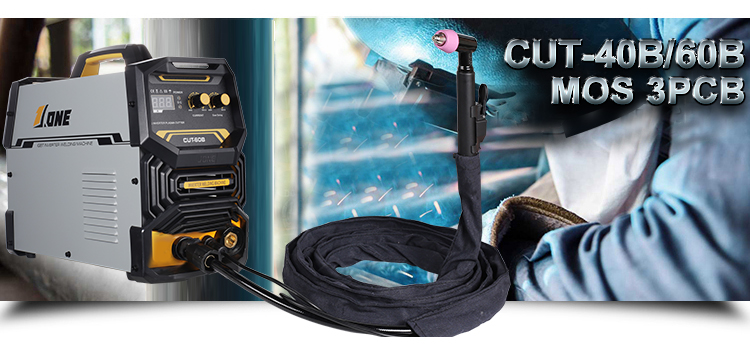

Model	Cut-40B	Cut-60B
type	MOS 3PCB	MOS 3PCB
True Amplifier (A)	40	60
AC input voltage (V)	AC 220V (support 110V)	380V
Rated input power capacity (KVA)	6.2	10
Input frequency (Hz)	50/60	50/60
No-load voltage (V)	60	60
Output current range (A)	20-40	20-60
Rated load duration (%)	60%	60%
efficiency(%)	85%	85%
Insulation class	f	f
Enclosure rating	IP21	IP21
Arcing	to touch	to touch
Qualified cut (mm)	4mm-6mm	6mm-10mm
Net weight/Gross weight(kg)	6/10 kg	11/15 kg
Input power cord (m)	1.8	1.8
Machine size (length x width x height mm)	420160310	480215380
Package Dimensions (L x W x H mm)	455270345 leather case + foam	540295425 leather case + foam

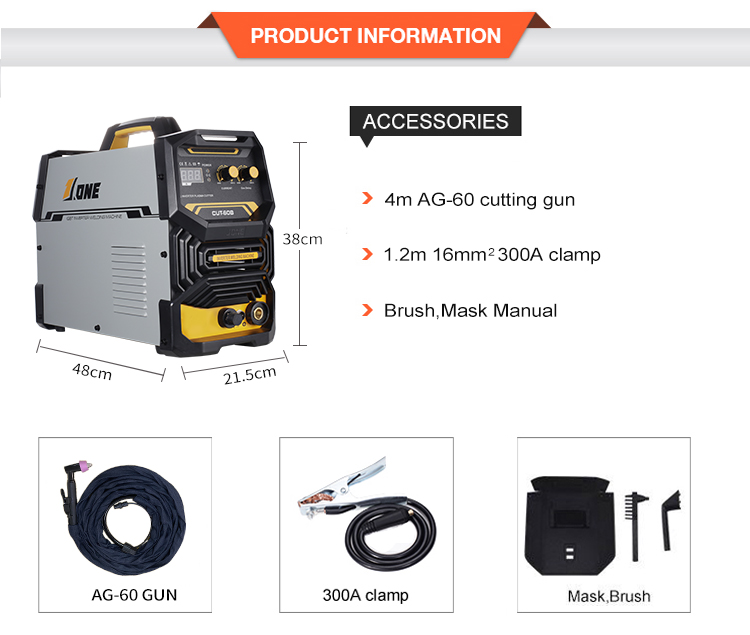

Accessories	1.2m 16mm 300A cable clamp 4m AG-60 torch Mask, brush, instruction manual	1.2m 16mm 300A cable clamp 4m AG-60 torch Mask, brush, instruction manual
