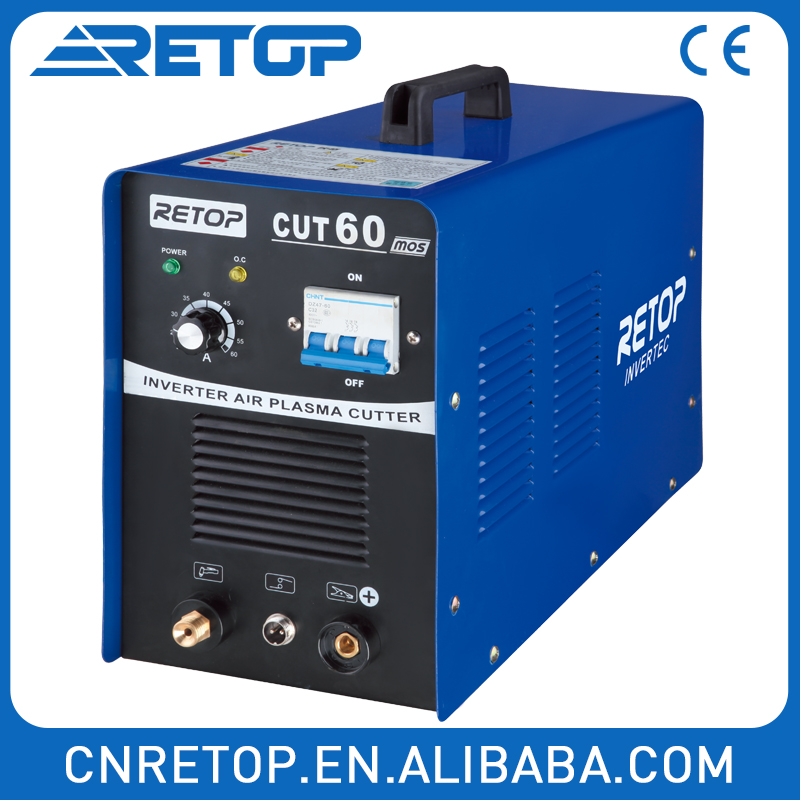

Single Phase IGBT Inverter Air Plasma Cutting Machine CUT-60 Portable 60amp Cutting Machine

Supplier: Taizhou Retop Mechanical & Electrical Co., Ltd.
Region: Zhejiang, China
Contact: Ms Deanna Du
Price: $160.00 / >=100 units
Min. Order: 100 units

Click here to contact

Product details

Input voltage:	380V	Element:	new accessories
weight:	16.2 kg	Factory test:	accelerated aging test
Showroom location:	not any	Power factor:	0.93COS
place of origin; place of origin:	Zhejiang, China	brand:	redo
port:	Ningbo/Shanghai	Supply capacity:	3500 units per month
Mechanical test report:	Not available	Warranty:	1 year
color:	dark blue, or customized	Health status:	new
aspect:	510210360mm	Marketing Type:	normal product
Weight (kg):	13kg	usage:	cutting stainless steel
Rated current:	20-60A	Protection class:	IP21S
Building Materials:	Metal	Video external inspection:	Not available
Main selling point:	easy to operate	Applicable industries:	Building material stores, mechanical repair shops, manufacturing plants, home use, construction works
input power:	230V	Packaging Details:	mig/mma welder by standard export carton and plastic foam or as your request
payment terms:	Western Union, wire transfer	Core Components Warranty:	1 year
No-load voltage:	250V	Core components:	A printed circuit board

MOSFET Inverter Air Plasma cutting machineCUT-60
	thing	CUT-60
	Input supply voltage	AC400V
	input power frequency	50/60HZ
	Rated input capacity	6.9KVA
	Output current	20-60A
	No-load voltage	250V
	Rated duty cycle	60%
	arc	touch
	power factor	0.93
	gas pressure	0.2-0.4mpa
	Insulation class	F
	Protection class	IP21S
	aspect	510210360mm
	net weight	16.2KG

feature:

(1) MOSFET inverter and PWM technology, energy saving, power frequency, no noise.

(2) The compressed air is used as the cutting air source, which is cost-effective.

(3) Air pressure and cutting current are adjustable.

(4) Easy to operate, narrow slit, stable cutting performance and small deformation.

(5) Circuit overcurrent, overvoltage and overheating protection.

(6) Suitable for cutting carbon steel, stainless steel and alloy steel, copper, aluminum, etc.

Widely used in iron structure construction, manufacturing and automobile maintenance.

(7) Supplied complete with torch, air regulator, pressure gauge, grounding clamp, welding cable, mask and welding brush.

thing	unit	CUT-30	CUT-40	CUT-60	CUT-100
Input supply voltage	five	AC220V	AC110/220V	AC380V	AC-380V
input power frequency	hertz	50/60	50/60	50/60	50/60
Rated input capacity	kVA	3.5	4.8	6.9	13
Output current range	One	30	40	60	100
No-load voltage	five	230	236	250	270
gas pressure	MPa	0.2-0.4	0.2-0.4	0.2-0.4	0.2-0.4
power factor	cosΦ	0.93	0.93	0.93	0.93
Rated duty cycle	%	60	60	60	60
aspect	mm	410x155x300	410x155x300	510x210x360	590x345x485
net weight	Kilogram	7.8	8.3	17	33

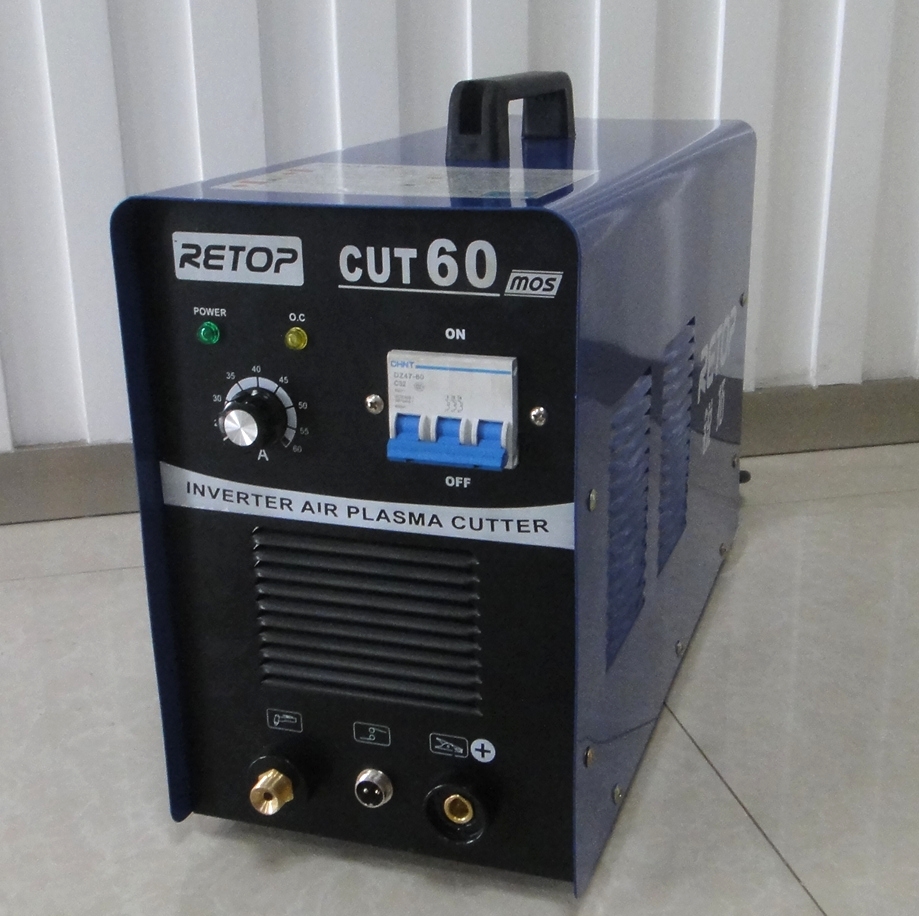

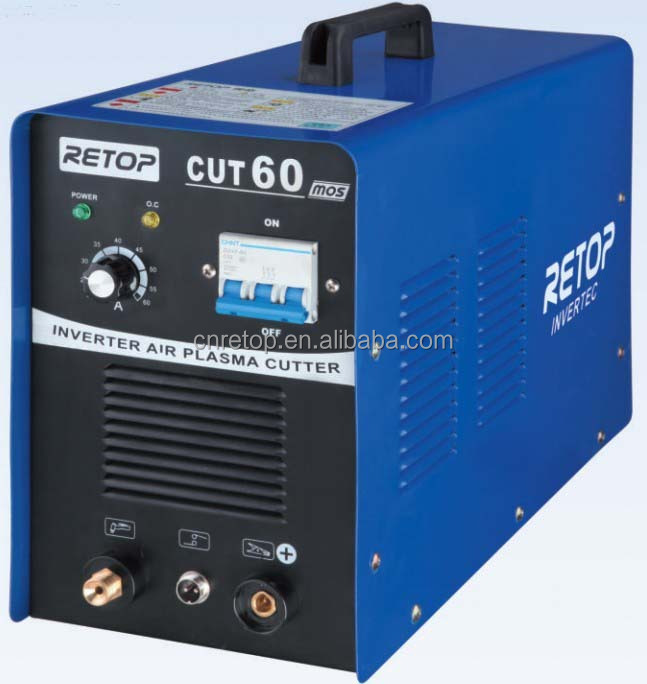

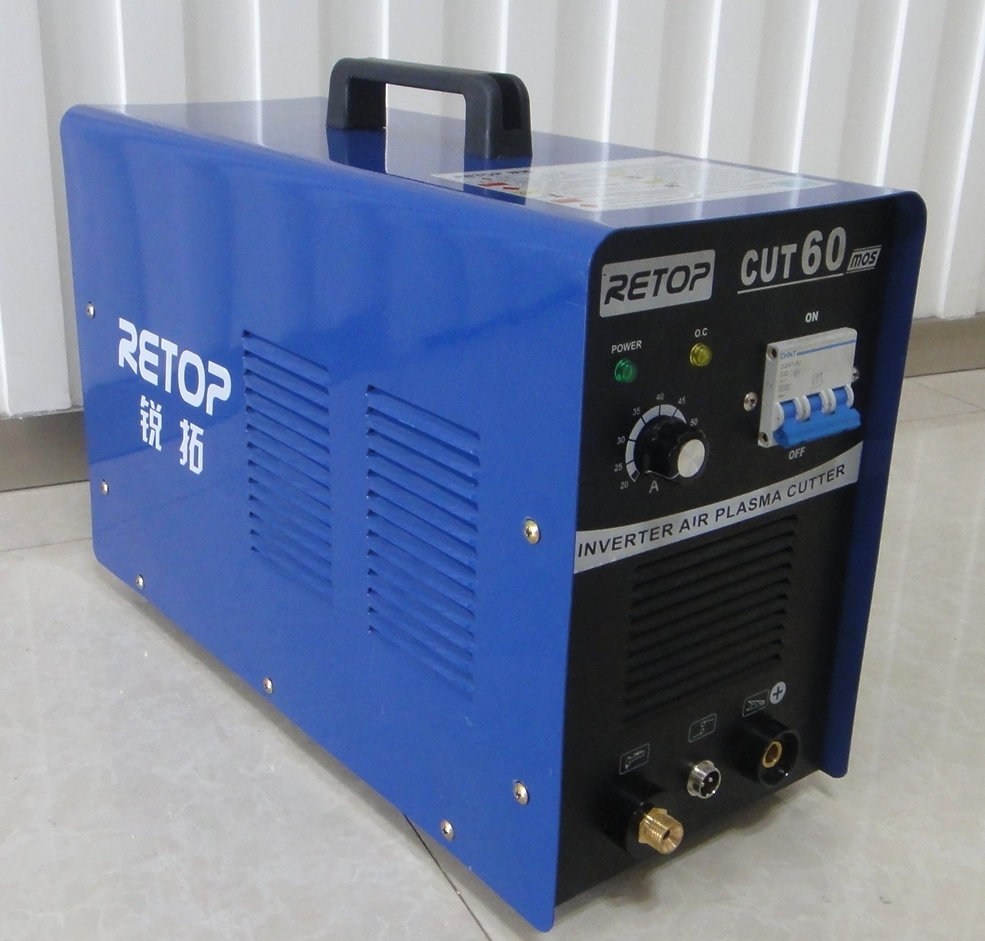

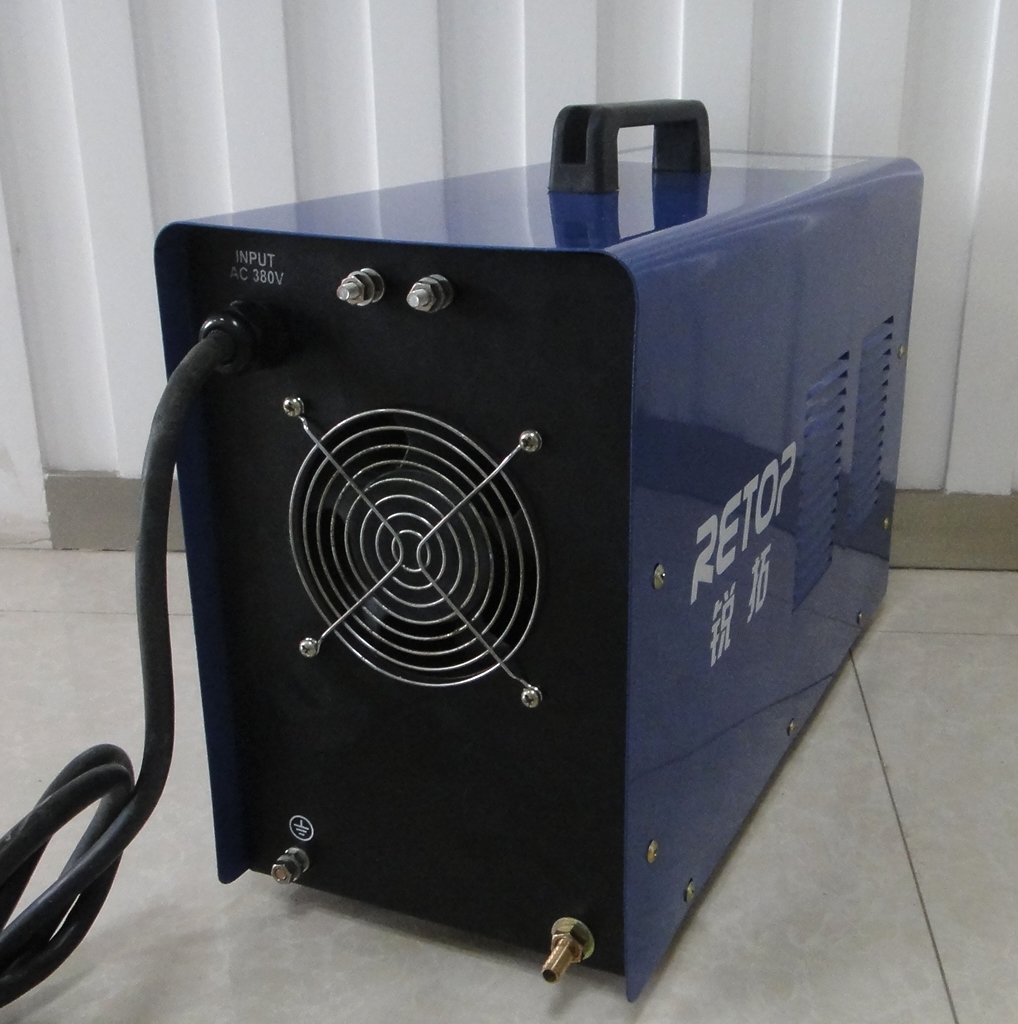

picture:

Accessories:


3m MiG Flashlight	1.2m ground clip	Masks and Brushes

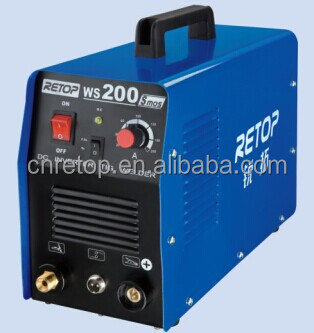

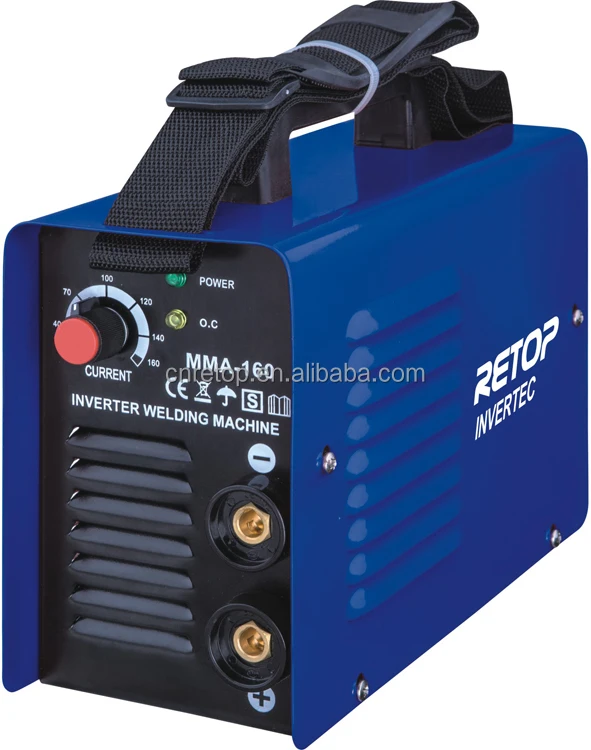

Recommended Products:

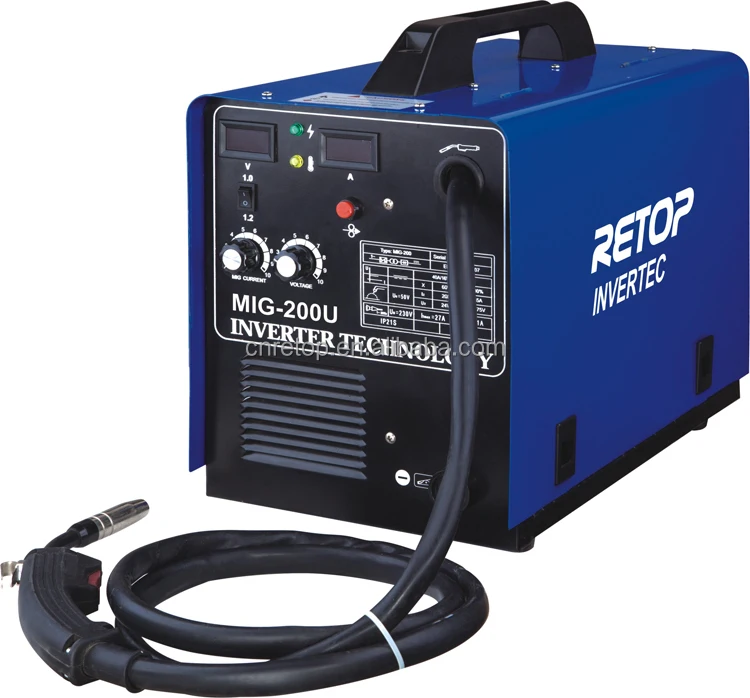

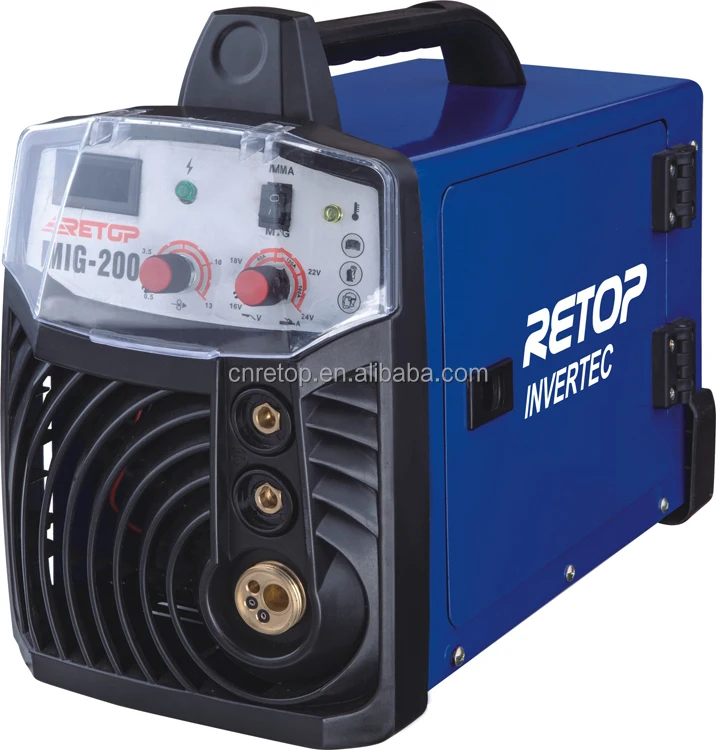

MIG-200P	MIG-200U	MMA-200LI	TIG-200S

pack:

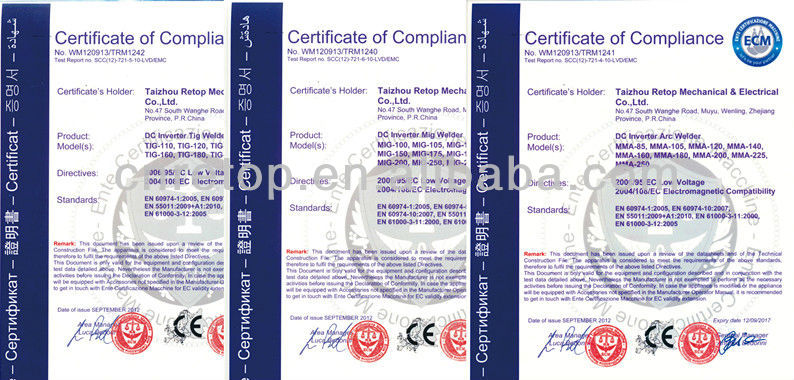

Certification:

company information:

Taizhou Ruituo Electromechanical Co., Ltd. was established in 2011 and is located in Wenling City, Zhejiang Province. We design, test and manufacture a full line of welding and cutting products that are industrial quality and easy to use. Whether you are in production, farming, maintenance, auto repair or do-it-yourself, we have a product to suit your needs.

With advanced technology and manufacturing equipment, we provide customers with high-quality products and excellent services. We also offer our customers flexibility in product design and construction, as well as premium pre- and after-sales service. With our dedicated commitment to customer service, you'll find us easy to contact, easy to work with and easy to get information - we're here to help.

Our passion is to improve existing products and develop new applications that benefit our customers and meet their changing needs. We continue to make progress by implementing a philosophy that emphasizes quality in all operations.

We hope you will stay on our website for a while. Check out our products and get to know us.

main products:AC Welder, DC Inverter Welder, TIG Welder, MiG Welder, Plasma Cutting Machine, Battery Charger

main market:Domestic market, Eastern Europe, Southeast Asia, South Asia, Middle East...

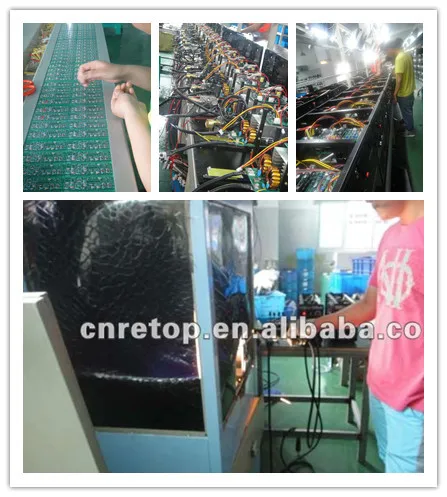

workshop:

Sample room:

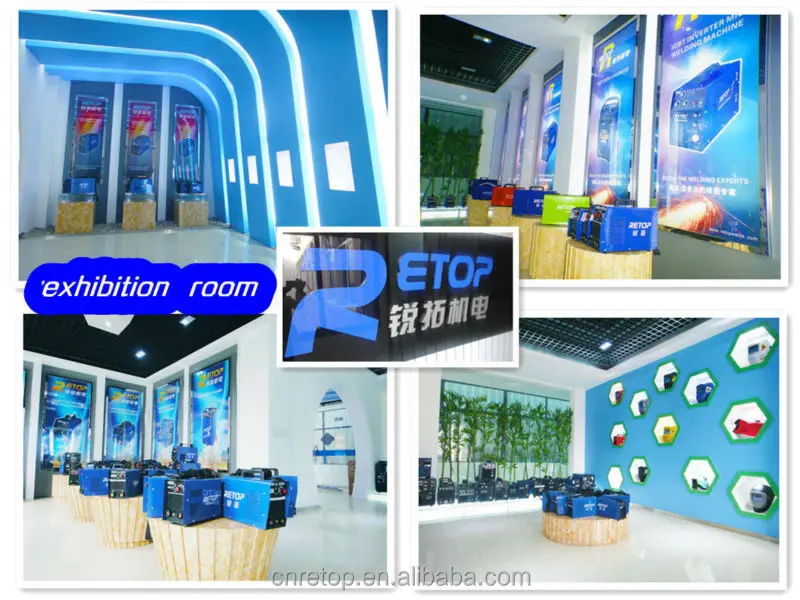

exhibition:
