IGBT 160A portable inverter mma 160 dc arc welding machine

Supplier: Taizhou Retop Mechanical & Electrical Co., Ltd.
Region: Zhejiang, China
Contact: Ms Deanna Du
Price: $35.00 / >=100 sets
Min. Order: 100 sets

Click here to contact

Product details

Payment Terms:	L/C,T/T,Western Union;	Rated Input Voltage:	220V;
Rated Output Current:	160A;	Rated Duty Cycle:	60%;
Product name:	Cheap Portable Cheap Pictures Of Welding Machines;	No-load Voltage:	60V;
Warranty:	one year;	Packaging Detail:	Standard export cartons with plastic foam;
Type:	IGBT inverter dc arc welder;	Pulse Frequency:	50/60HZ;
Brand Name:	retop;	Max. Load Power Capacity:	160A;
Factory Test:	Accelerated Test One by One Retop Welder;	Voltage:	220V;
unsable electrode:	2.5-4.0mm;	Welding Current/Voltage Range:	160A/220V;
Applicable Industries:	Building Material Shops,Manufacturing Plant,Home Use;	Arc Current:	160A;
Usage:	welding machine;	Certification:	CE;
Rated Duty Cycle @40°C:	100A;	Product Features:	electronic components;
Dimensions:	300mm118mm205mm;	Power(W):	6.2KVA;
After-sales Service Provided:	Video technical support;	Color:	Optional;
Rated Output Voltage:	220V;	Supply Ability:	3500 Set/Sets per Month;
Motor Type:	DC MOTOR;	Place of Origin:	Zhejiang China (Mainland);
Condition:	New;	Port:	Ningbo/Shanghai;
After-sales Service Provided:	Overseas service center available;	Function:	Inverter IGBT Welding Machine;
MOQ:	Can be negotiated;

About us

FEATURES

Main Features

1) Advanced IGBT switching power and PWM technology, enclosed feeedback control circuit,energy-efficient and low noise.

2) Auto adaptive are force,little spatter,stable arc and good shaping.

3) Automatic over-voltage and over-current protection as well as high temperature shutdown function.

4) Adjustable shoulder strap.Great portability and performance in one compact machine.

5) Applicable for welding various kinds of metals,such as carton steel,stainless steel and alloy steel,etc. Ideal for stick welding with all types of acid and basic electrodes.

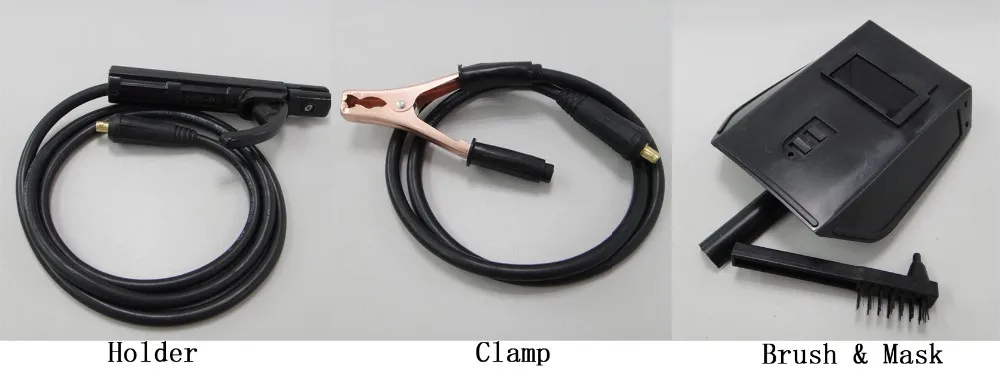

6)Supplied complete with electrode holder,earth clamp,welding cable,face mask and welding brush.

ITEM	UNIT	MMA 145	MMA 165	MMA 185	MMA 205
Input power voltage	V	AC230V	AC230V	AC230V	AC230V
Input power frequency	Hz	50/60	50/60	50/60	50/60
Rated input capacity	KVA	4.5	5.4	6.2	7
Output current range	A	20-140	20-160	20-180	20-200
No-load voltage	V	70	70	70	70
Rated duty cycle	%	60	60	60	60
Power factor	cos	0.93	0.93	0.93	0.93
Protection grade		IP21S	IP21S	IP21S	IP21S
Dimensions	mm	348122195	348122195	348122195	348122195
Weight	kg	3.5	3.9	4.25	4.65

Company Information

Taizhou Retop Mechanical and Electrical Co., Located., located in wenling,zhejiang Province,is specialized in manufacturing welding and cutting equipment based on inverter and conventional technology. We are dedicated to designing, testing and manufacturing a full line of welding and cutting products that are with industrial quality and easy to use.Whether you are in production,farming,maintenance,auto repair,or a do-it-yourself,we have a product that fits your needs.

RETOP does business through an ever-increasing focus on customers’ welding challenges and applications and,ultimately,their complete satisfaction.Our passion is to improve existing products and to develop new applications that benefit our customers and meet their constantly changing need. We offer customers the best welding products and we also offer them the flexibilities in product design and construction,coupled with superior services before and after sale.With our dedicated commitment to customer services, you will find that we are easy to contact,easy to work with and easy to get information from we are here to help you.

Quality first and service best is the faith we keep all the time.As we look to the future, we will continue to make progress by implementing a philosophy that stresses quality and service in all of our operations,thus making our future even stronger.

We own completely independent product design and development ability;fist-class technology staff troop;excellent production facilities.And we follow rigorous testing standards which guarantees product quality.We do not pursue the best,but we always purse the better.Your satisfaction is also our gratification.We believe that we can be your most trustful partner.

Our Services

Why choose us?

We are welding machine MANUFACTURER,so we can offer better price and after-sale service and shorter delivery date.
We use all new components,IGBT tube, diode,capacitor and so on imported components.
We adopt SMT technology to decrease failure rate and it is convenient to repair the welding machine and reduce the cost of repairing,we just need to change the bad pcb board.
We provide Warranty period of 1 to 2 years for all our items.

Contact me
