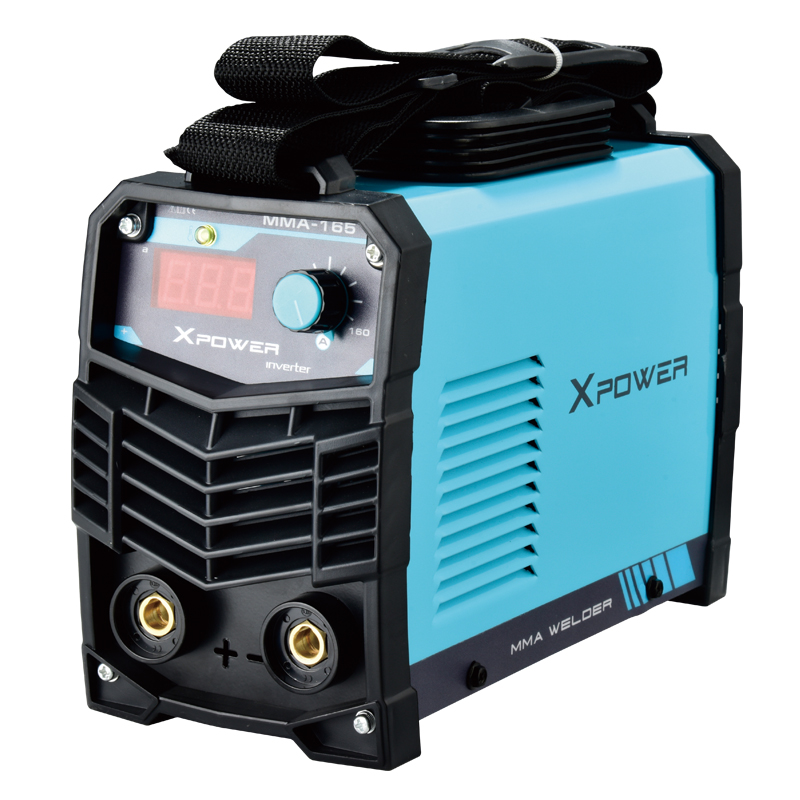

Inverter arc welding machine mma 315 igbt mma 250

Supplier: Taizhou Retop Mechanical & Electrical Co., Ltd.
Region: Zhejiang, China
Contact: Ms Deanna Du
Price: $38.00 / 1 - 9999 units
$23.00 / >=10000 units
Min. Order: 1 unit

Click here to contact

Product details

Origin:	China	Motor type:	DC
Supply capacity:	1000pcs new promotional 250 amp small electric welding machine with reserve price every quarter	aspect:	420160310mm
payment terms:	L/C, T/T, Western Union	product name:	New Arrival Promotion 250 Amp Small Electric Welder With Reserve Price
Accessories:	ground clamp	Power factor:	0.93
Arc current:	10-200A welding machine	Function:	Inverter IGBT welding machine
Marketing Type:	New Products 2020	After-sales service provided:	Does not provide overseas services
Voltage:	220V	Mechanical test report:	not available
weight:	6.6KG	Core components:	engine
Arc current:	20-220A	Package:	carton
Showroom location:	not any	Local service location:	not any
Certification:	CE certification	brand:	Top up
Warranty:	one year	type:	IGBT, MMA welding machine
Pulse frequency:	50/60 Hz	Video shipment inspection:	not available
Health status:	new	strength:	3.7KVA
color:	Elective	efficiency:	85% inverter welding machine
Packaging Details:	New promotion 250 amp small welding machine with bottom price in standard export carton with plastic foam	After warranty service:	Video technical support, online support, spare parts
Applicable industries:	Building materials store, machinery repair shop, manufacturing plant, household, retail	Weight (kg):	6 kg
port:	Ningbo or Shanghai	Nominal Duty Cycle:	60%
usage:	welding	Core component warranty:	1 year
Main selling points:	easy to operate

Product Description

feature

1. Single-board IGBT technology, energy saving and low noise.
2. Easy arc ignition, small spatter, excellent welding performance.
3. Automatic adaptive arc force minimizes electrode sticking in puddles.
4. Does not affect arc stability or increase spatter.
5. Safety protection for overcurrent, overvoltage and overheating.
6. Small and light, but powerful.
7. It is suitable for welding various acidic and alkaline electrodes.

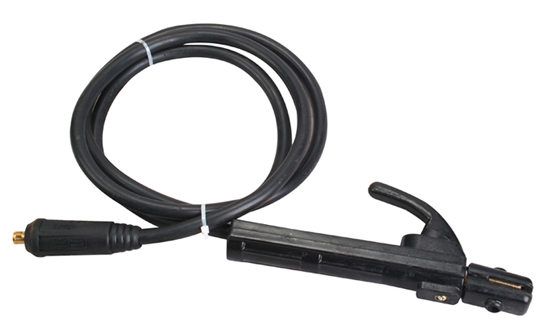

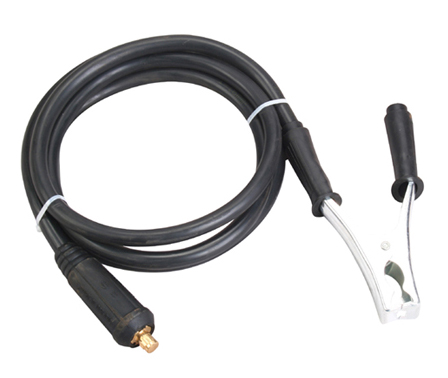

8. Compete with electrode clips, ground clips, masks, electric hammers.

technical specifications

ARMITEM	unit	Future 105	Future 125	Future 145	Future 165	Future 185	Future 205
Input supply voltage	V	AC230V±10%	AC230V±10%	AC230V±10%	AC230V±10%	AC230V±10%	AC230V±10%
Input power frequency	hertz	50/60	50/60	50/60	50/60	50/60	50/60
Rated input capacity	kVA	3	3.8	4.5	5.4	6.2	7.1
Output current range	A	20-100	20-120	20-140	20-160	20-180	20-200
no-load voltage	V	62	62	60	60	60	60
Rated duty cycle	%	40	40	40	40	40	40
power factor	Cosine Φ	0.93	0.93	0.93	0.93	0.93	0.93
degree of protection		IP21S	IP21S	IP21S	IP21S	IP21S	IP21S
aspect	mm	348122195	348122195	348122195	348122195	348122195	348122195
weight	Kilogram	2.65	3	3.5	3.9	4.25	4.65
