LGK-100 CNC interface built-in air pump plasma cutting power supply cnc plasma cutting machine laser cutting machine plasma cutting cnc

Click here to contact
Product details
Warranty:1 yearState of health:new
After warranty service:Video technical support, online support, spare partsPower (kW):17.8KVA
Mechanical test report:ifusage:metal cutting
Local service location:not anyInput voltage:380V
color:blueaspect:600*350*670mm
Rated current:23AVideo shipment inspection:if
payment terms:L/C, T/TCore components:Programmable Controllers
Packaging Details:CartonCore component warranty:3 years
Weight (kg):57 kgport:Linyi Port Tianjin Port Ningbo Port
Supply capacity:200 sets per dayAfter-sales service provided:Free spare parts, online support, video technical support
place of origin; place of origin:ChinaMain selling points:Famous PLC
Showroom location:not anyApplicable industries:Building materials stores, machine repair shops, manufacturing plants, farms, home use, retail, construction, energy and mining
Marketing Type:2019 Hot Products
Product Description

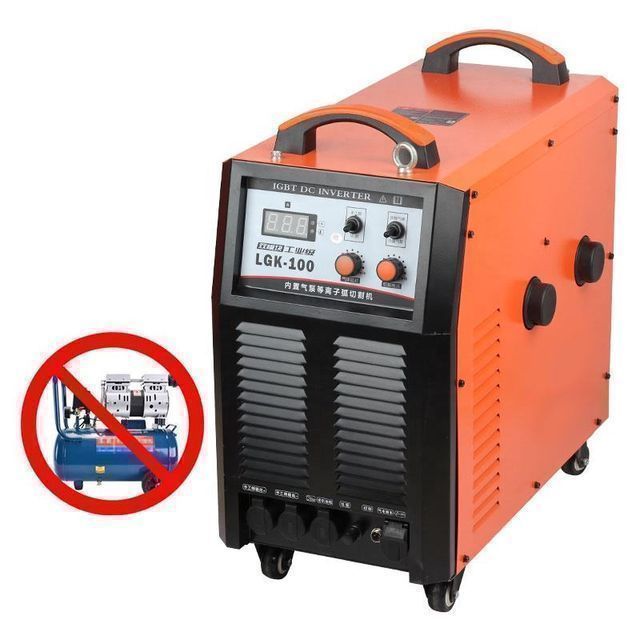

LGK-100 built-in air pump CNC interface plasma cutting power supply
1. No need for air compressor, easy to cut 2. Casters, more suitable for mobile operations 3. Non-contact arc ignition cutting, less consumables consumption 4. Easily adjustable welding methods, cutting welding, built-in air pump cutting and external air source cutting 5. Equipped with CNC interface, it can be used for CNC precision cutting
Product parameters
Product number:
LGK-100
Product Description:
Plasma cutting/IGBT module/configurable CNC/inverter DC/protection circuit/air cooling/water cooling/built-in air pump
Scope of application:
Maintenance/decoration/steel processing/machining/steel structure/building construction/shipbuilding/pressure vessel
Rated input voltage:
380V
Rated input capacity:
17.8KVA
frequency:
50/60 Hz
No-load voltage:
300V
duty cycle:
40%
Premium cutting thickness:
1-20mm
Insulation class:
Class F
Protection class:
IP21S
Output current:
380V:
20-100A
Dimensions and Weight:
Product Size:
600*350*670mm
product weight:
57KG
Package dimensions:
770*470*770mm
Package weight:
69KG
Accessories:
Standard accessories:


1 p80 cutting gun
1 ground clip
Optional accessories:


Air compressor
water tank
pay attention:
Optional accessories cost extra, if you need them please ask the factory before placing an order
welding application
After-sales service
Perfect after-sales service system
1. 24-hour online customer service, timely reply. 2. The product warranty is 12 months, and the core components are guaranteed for three years. 3. Video online technical support. 4. Free spare parts.
