Herbal essential oil extractor CBD oil Concentrate Machine hemp oil extraction machine

Supplier: Hangzhou Huihe Machine Equipment Co., Ltd.
Region: Zhejiang, China
Contact: Mr Awen Wu
Price: $2000.00 /piece
Min. Order: 1 piece

Click here to contact

Product details

Conctrol type:	Manual or PLC;	Applicable Industries:	Manufacturing Plant,Food & Beverage Factory,Farms,Construction works ,Food & Beverage Shops;
Brand Name:	Huihe;	Power:	9Kw;
Surface finish:	Mirror and matt Polish;	Core Components:	Motor,Pressure vessel,Pump;
Function:	Evaporation Extracting Concentrate;	Video outgoing-inspection:	Provided;
Warranty of core components:	1 Year;	Voltage:	made to order;
Certification:	CE;	Supply Ability:	2000 Piece/Pieces per Year;
Condition:	New;	Power Source:	Steam;
Weight:	280 kg;	Port:	ningbo or shanghai port;
Processing Types:	Juice;	Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram;
Marketing Type:	Ordinary Product;	Working temperature:	50~60 degree;
Application:	food, beverage factory, medical chemical industry;	Warranty:	12 months;
Local Service Location:	None;	Machinery Test Report:	Provided;
Place of Origin:	Zhejiang China;	Dimension(LWH):	190011002300;
Showroom Location:	None;	Packaging Detail:	standard wooden case/as required;
Material:	SUS304/316L;	After Warranty Service:	Video technical support,Field maintenance and repair service;
Processing:	heating, separating, evaporating,Concentrator;	After-sales Service Provided:	Engineers available to service machinery overseas;
Evaporating Capacity:	50L~5000L;

Herbal essential oil extractor CBD oil Concentrate Machine hemp oil extraction machine

Application

The device is suitable for the concentration of the material liquid in such industries as pharmacy, food and chemistry, etc. It's mainly for get high concentration medium, such as extractum, fruit jam, and so on.

Configuaration

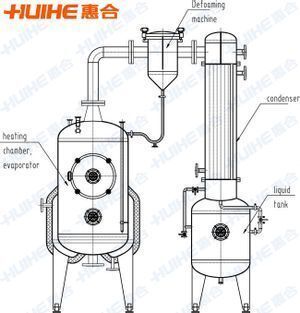

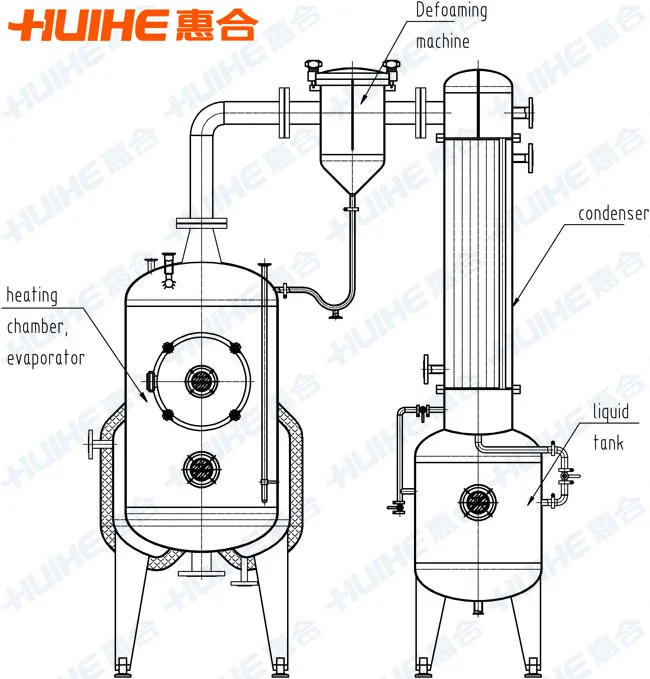

1) The device mainly includes concentration tank, condenser, vapor-liquid separator, cooler and liquid receiving barrel.

2) The concentration can is of clip sleeve structure; the condenser is of row-pipe type; the cooler is of coiled type. The device is suitable for the concentration of the material liquid in such industries as pharmacy, food and chemistry, etc. and as well serves for the recycle of alcohol and simple reflux extraction purposes.

3) The contact part of the equipment and materials are made with stainless steel, resistant to corrosion and in accordance with the GMP standard.

Model	QN-300	QN-500	QN-700	QN-1000
Evaporation KG/H	70	120	145	195
Volume	300L	500L	700L	1000L
Jacket pressure	0.09Mpa
Vacuum degree	500-620mmHg
Heating area	1.3	1.6	2	2.8
Condensation area	2.4	3	3.5	4
Weigh KG	380	450	630	950
Length mm	1900	2030	2100	2335
Width mm	1100	1200	1300	1520
Height mm	2300	2500	2600	2765

concentrator 's Material and Structure

The material of concentrator from Hangzhou Huihe Machine Facture Co., Ltd usually uses SUS304 or SUS316L to make if the customer has no special requirements.

Product Description

concentrator ’s Packing Before Delivery

Why choosing our concentrator for sale

1. Huihe machine have sales department, engineering department, after sales department, we provide one-stop service for you;

2. We are not competing for the price but the high quality and friendly service we competition

3. The salesman and engineer will listen to your requirements and the effect which you want to reach patiently, and tailored for you;

4. The after sales colleague will service for you from place an order to the actual production;

5. 9 years of industry experience, industry leader;

6. Factory, office site visit.

certificate and strength show

Hangzhou Huihe Machine Facture committed to design and manufacture all kinds of stainless steel container.

We can design according to customers' requirements for various kinds of stainless steel vessel, jacketed kettle, autoclave, milk cooling tank,and fermentor,etc .

The equipments conform to the sanitary standards, thus effectively guarantee people's health.

Huihe Company not only has a professional oversea sales team , but also has department of networks, sales Support and technology research and development,etc .We can supply turn-key project for design and manufacture of a whole production line, for example milk production line, juice production line ,tea production line ,etc.

Our core value is “service for small and medium food enterprises, and benefit of the public”, the products has been send to all over the world for 9 years . We are deeply trusted by the users in the food and beverage industry. We are famous in the food machine field for jacketed kettle, sterilization equipment, reaction tank and fermentation tank ,etc.

Since founded in 2005 , we service customers with good pre-sales support and after-sale service . We purpose is "guaranteed quality, complete variety , competitive price , timely delivery" .We insist our vision “Honest, pragmatic and win-win ” to provide best quality and service.
