Chinese manufacturer's jujube apple grape vinegar processing machine for vinegar production line

Supplier: Hangzhou Huihe Machine Equipment Co., Ltd.
Region: Zhejiang, China
Contact: Mr Awen Wu
Price: $1800.00 /unit
Min. Order: 1 unit

Click here to contact

Product details

Voltage:	by order	Packaging Details:	Picking of Date Apple Vinegar Production Machine: Standard Wooden Box or Customized.
usage:	liquid handling	Processing:	other
application:	mix and mix	weight:	by order
Non-standard customization:	customized	product name:	Date Apple Vinegar Production Machine
Supply capacity:	1000 units per year	Health status:	new
Applicable industries:	Manufacturing Plants, Food and Beverage Plants, Farms, Food Stores, Food and Beverage Stores	whole system:	Scrap agitator
Dimensions (LWH):	by order	heating method:	Electric steam gas
model:	HH-LRG-0015	brand:	high
place of origin; place of origin:	China	payment terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram
Warranty:	1 year	Certification:	CE, ISO
structure:	vertical or customized	strength:	by order
After-sales service provided:	Video technical support, engineers can service machinery overseas	capacity:	customized
port:	Ningbo/Shanghai/Qingdao/Lianyungang/Dalian Port	Processing Type:	Dates, grapes and all ingredients used in vinegar
Material:	Stainless Steel 304 / SUS316L

Date Apple Vinegar Vinegar Production Machine Applicable Materials

The jujube apple grape vinegar making machine is mainly used for the storage and mixing of various raw materials such as milk, sugar, beverage, food, and various medicines. It is an indispensable equipment for dairy, beverage, and medicine production enterprises. especially inIce Cream Production Lineessential equipment

Features of Jujube Apple Vinegar Production Machine

1. Quickly open the manhole;

2. Various CIP cleaning devices;

3. Hygienic grade of insect breathable cover;

4. Adjustable triangle legs;

5. Removable feeding pipe;

6. Jujube apple grape vinegar making machine

Material of Date Apple Vinegar Maker Machine

Hangzhou Huihe Machinery Manufacturing Co., Ltd.'s jujube, apple and grape vinegar production equipment is generally made of SUS304 or SUS316L if the customer has no special requirements.

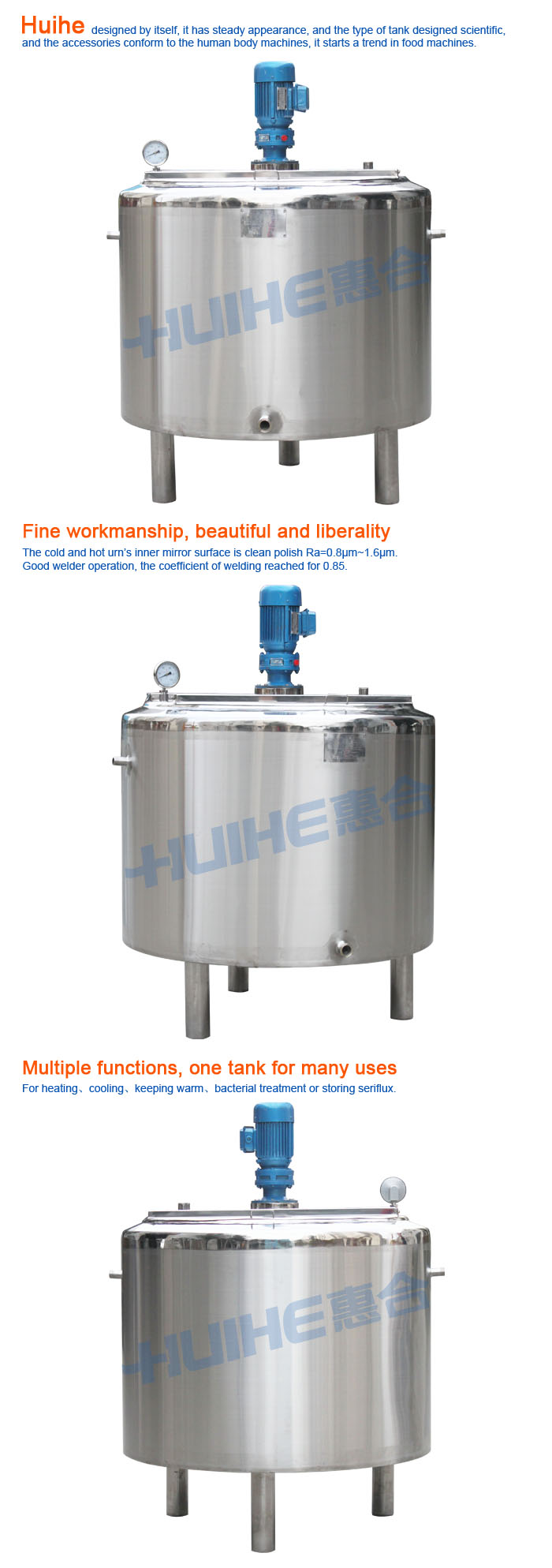

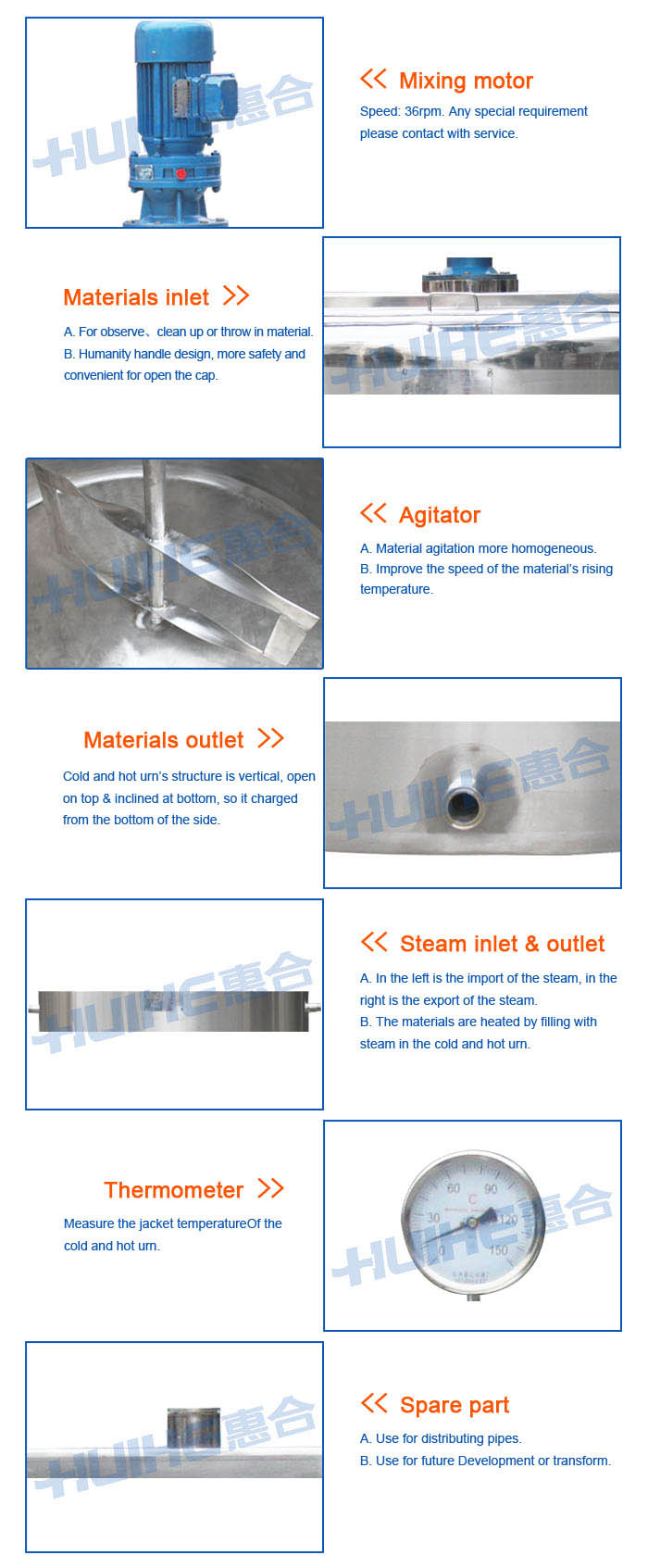

Detailed picture of Date Apple Vinegar Making Machine

Technical parameters of jujube apple grape vinegar production machine

Capacity (L)	1000
Name	Date Apple Vinegar Production Machine
Bucket size	Inner layer: DN1100800 Mezzanine: DN1200600 Cladding: DN1300*800
Material	SUS304
agitator	Scrap agitator
Inner working pressure (Mpa)	-0.04
Jacket working pressure (Mpa)	≤0.09
motor	5.5kw 25r/m Machinery Seal

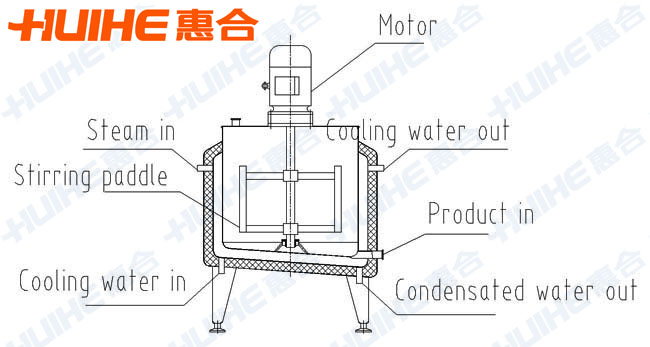

structure	Vertical, three-layer (inner layer, jacket and insulating layer), oval end shield on the upper end, 90 degree conical end shield on the lower end, with vertical scraper agitator, with operating panel and ladder
Accessories	DN400 manhole cover with sight glass, thermal imager, vacuum pressure gauge, ball valve, check valve, control box, operation panel

notes:

The above is the standard size, if you have other special requirements, you can tell us, we will design and produce according to your needs.

Why choose our Date Apple Vinegar Maker

1. Converging machine hasSales department, engineering department, after-sales department,us

will provide youOne-stop serviceFor you;

2. We compete not on price, but on high quality and friendly service

3. Salesmen and engineers will patiently listen to your requirements and the effect you want to achieve, and tailor-made for you;

4. After-sales colleagues serve youFrom ordering to actual production;

5.9 years of industry experience, industry leader;

6. On-site inspection of factories and offices.

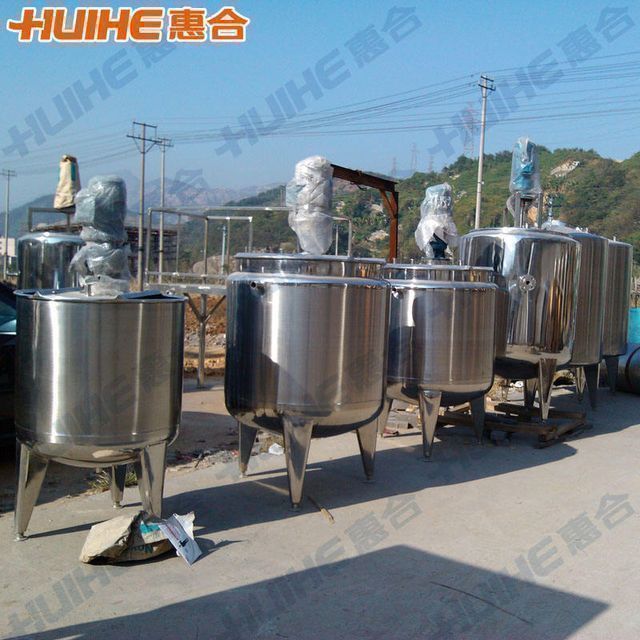

Jujube apple grape vinegar production machine factory packaging

Certification and strength display

Hangzhou Huihe Machinery Factory is committed to designing and manufacturing various stainless steel containers. We can design all kinds of stainless steel vessels, jacketed kettles, autoclaves, milk cooling tanks, fermentation tanks, etc. according to customer requirements. The equipment conforms to hygiene standards and effectively protects people's health.

Huihe Company not only has a professional overseas sales team, but also has departments such as network, sales support, technology research and development, etc., which can provide turnkey projects for the design and manufacture of entire production lines such as milk production lines, juice production lines, tea production lines, etc.

Our core value is "serving small and medium food enterprises and benefiting the public", and our products have been exported to all over the world for 9 years. We are trusted by users in the food and beverage industry. Jacketed kettles, sterilization equipment, reaction tanks, fermentation tanks, etc. enjoy a high reputation in the field of food machinery.

Since our establishment in 2005, we have served our customers with good pre-sales support and after-sales service. Our tenet is "guaranteed quality, complete variety, competitive price and prompt delivery". We adhere to the vision of "integrity, pragmatism and win-win", and provide the best quality and service.
