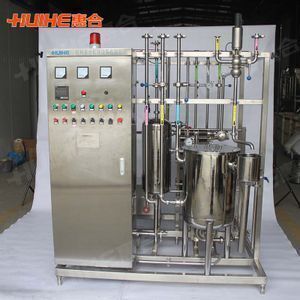

UHT Milk Plate Sterilizer Processing Machine on sale

Supplier: Hangzhou Huihe Machine Equipment Co., Ltd.
Region: Zhejiang, China
Contact: Mr Awen Wu
Price: $3650.00 /unit
Min. Order: 1 unit

Click here to contact

Product details

Certification:	CE;	Power:	made to order;
Place of Origin:	Zhejiang China;	Warranty:	1 Year;
Weight:	made to order;	Brand Name:	HH;
After-sales Service Provided:	Free spare parts,Engineers available to service machinery overseas;	Processing Types:	Juice;
Model Number:	0.5t-10t/h;	Condition:	New;
Port:	Ningbo or Shanghai Port;	Type:	High Pressure/Temperature Sterilizer;
Voltage:	made to order;	Packaging Detail:	standard wooden packaging;
Dimension(LWH):	made to order;	Material:	Stainless Steel SUS304/SUS316L;
Processing:	Sterilizer,made to order;	Application:	Beverage/Juice;
Sterilization Temperature:	115-135 Degrees;	Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram;
Capacity:	made to order;	Supply Ability:	1000 Unit/Units per Year;
Sterilizaiton control:	Full Automatic;

UHT Milk Plate Sterilizer Processing Machine on sale

UHT milk processing on sale's Suitable Material

UHT Tubular Sterilizer is suitable for milk, juice, tea drinks, milk drinks, yogurt, ketchup, condiments, beer, wine, butter, jam, ice cream, egg products, powder and other products.

UHT Sterilizer ’s Characteristics

1. Huge viscosity range. The use environment PH value is 1-14. The products produced by this system can maintain 3-6 months under normal temperature (do not add any preservatives), thus eliminating the cold chain;

2. Automatically or semi-automatically controlled by computer with LCD touch screen operation;

3. Instantaneous processing maintain the products' original flavor;

4. PID temperature control system, sterilization temperature recorded continuously in real time;

5. Uniform heat treatment, heat recovery up to 90%;

6. Difficult to form tube fouling and pollution;

7. Long continuous operating time and good CIP self-cleaning effect;

8. Less spare parts, low operating cost;

9. Easy to install, inspect and remove, convenient to maintain;

10. Reliable material affordable to higher product pressure.

UHT Sterilizer 's Material

The UHT Sterilizer material from Hangzhou Huihe Machine Facture Co., Ltd usually is SUS304 or SUS316L if the customer has no special requirements.

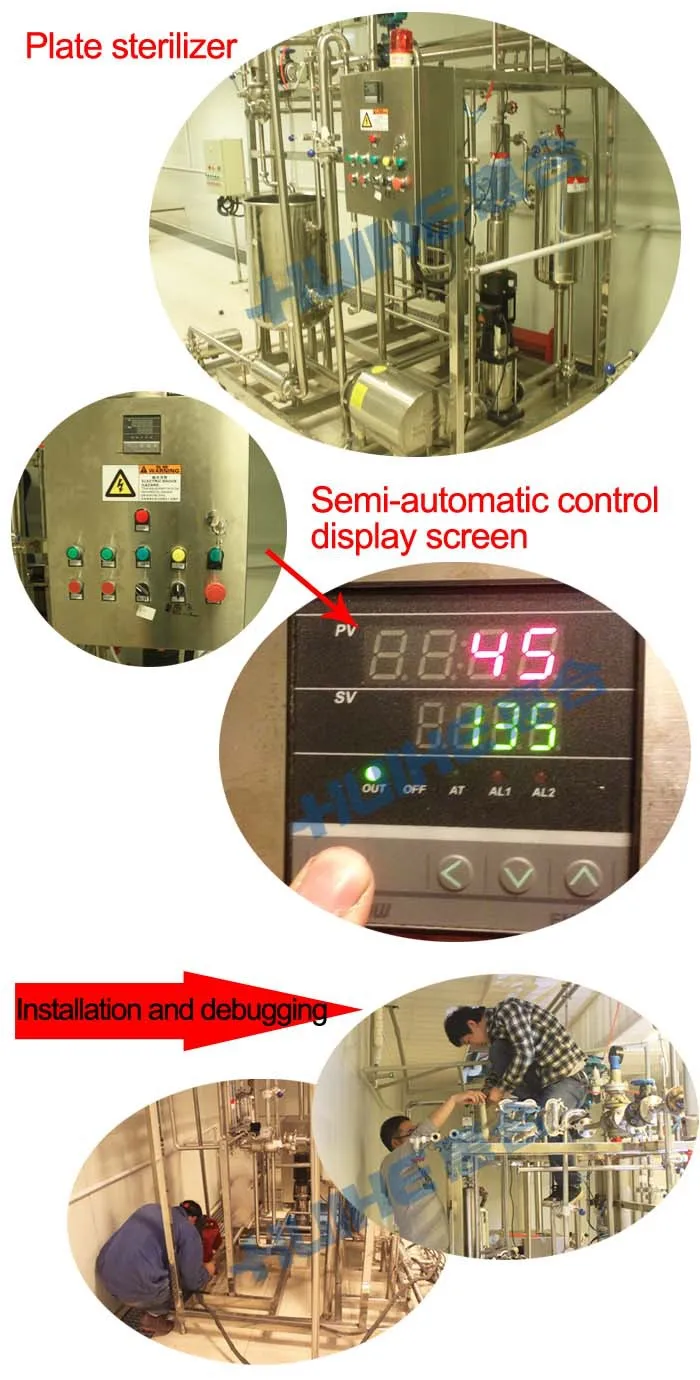

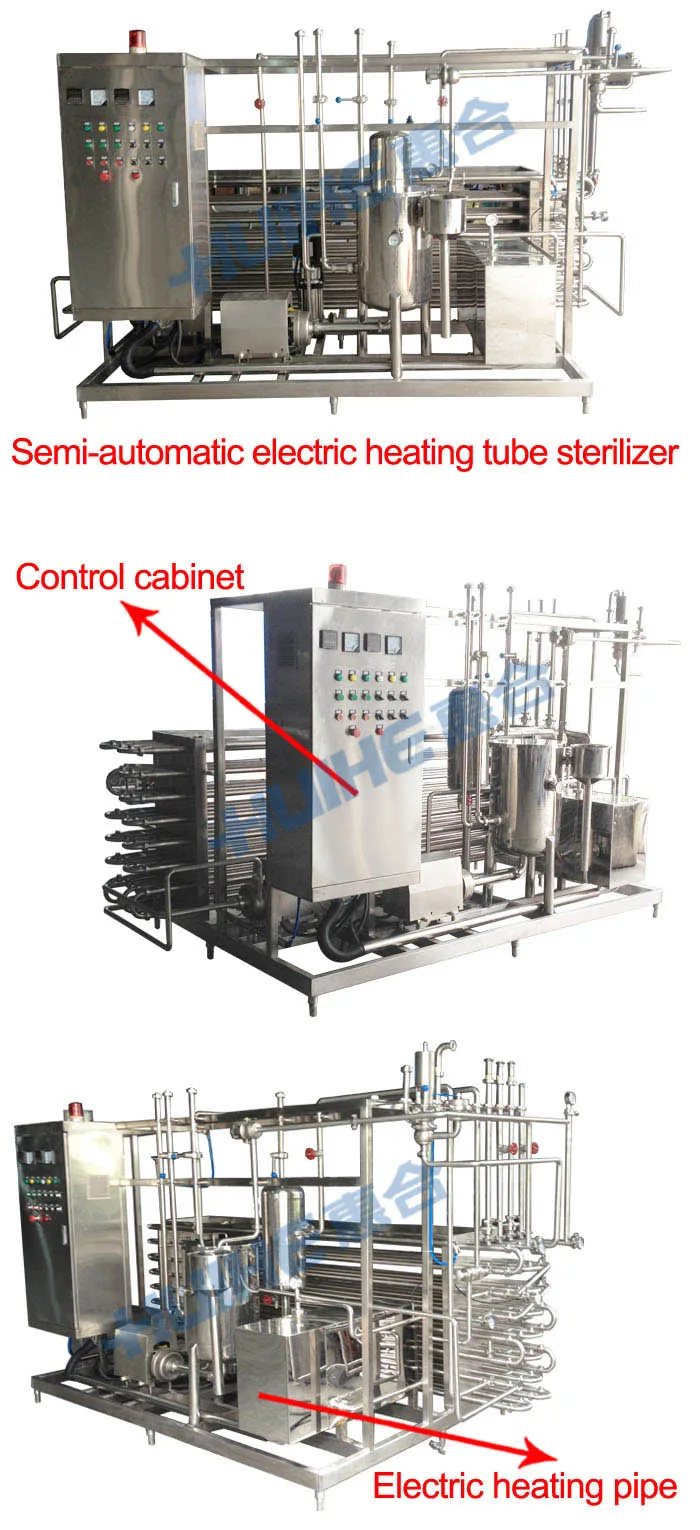

UHT Sterilizer ’s Detailed Picture

UHT Sterilizer ’s Technical Parameter

Process parameters:25°C→105°C(10s)→90°C→40°C return

Cooling water:1:2(≤30°C)

Model	Capacity (t/h)	Consumption of steam (kg/h)	Electric power (kw)	Tube diameter(Φ)
Model	Capacity (t/h)	Consumption of steam (kg/h)	Electric power (kw)	Material	Steam	Medium
HE-UHT-XGZ-1	1	130	1.9	25	DN25	25
HE-UHT-XGZ-2	2	260	2.1	25	DN32	25
HE-UHT-XGZ-3	3	390	3.0	38	DN40	38
HE-UHT-XGZ-4	4	520	3.0	38	DN40	38
HE-UHT-XGZ-5	5	650	3.0	38	DN50	38
HE-UHT-XGZ-6	6	780	3.0	51	DN50	51
HE-UHT-XGZ-8	8	1040	3.7	51	DN65	51
HE-UHT-XGZ-10	10	1300	5.2	51	DN80	51
HE-UHT-XGZ-15	15	1950	7.0	63	DN80	63
HE-UHT-XGZ-20	20	2600	11.0	63	DN100	63
