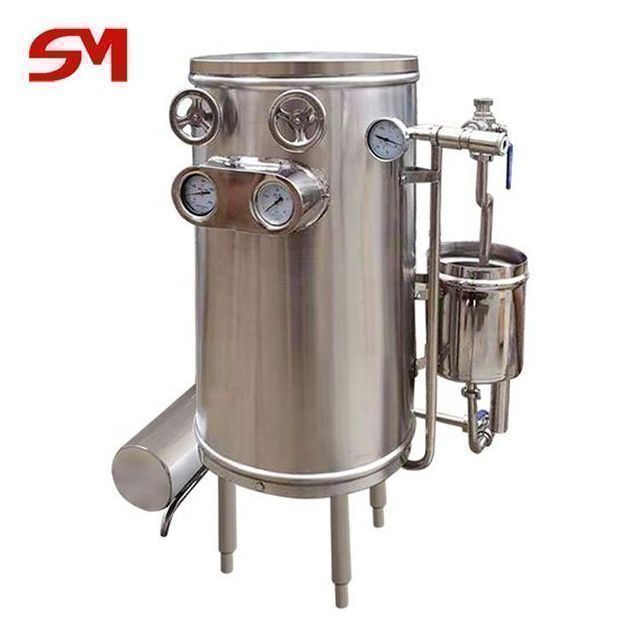

Affordable Htst Continuous Pasteurizer

Product details
After-sales service provided:On-site maintenance and repair servicesProcessing power:0.5-1T/H
Applicable industries:Hotel, Food and Beverage Factory, Restaurant, Food Store, Food and Beverage StoreSterilization temperature:115-135°C
After Warranty Service:Video technical support, online support, spare partsHigh temperature heating time:4-6S
Gross weight per piece:35.000 kgDimensions (L*W*H):920*920*1400mm
brand:Somancareer:20 years
product name:htst pasteurizerProcessing Type:juice, milk
strength:2200Local service location:not any
Use steam pressure:<0.4MPaCertification:CE/ISO
Showroom location:not anymodel:SM-UHT-1
Voltage:110/220/380VSales unit:single product
Warranty:1 yearPackaging Details:Packed in standard export plywood wooden case
Health status:newKey words:htst pasteurizer
Discharge temperature:<65°Cweight:280kg
Packaging Preview:Single package size:15X15X15 cm
place of origin; place of origin:Henan, ChinaProcessing:Sterilizer
Material:SUS304/316pack:Packed in standard export plywood wooden case
Product Description

Affordable Htst Continuous Pasteurizer

Features of our htst pasteurizers:

Our advantage:
1. Ultra-high temperature sterilization, high sterilization efficiency.
2. Continuous production, short sterilization time.
3. The food contact parts are made of food grade 304 stainless steel, which meets the requirements of the world's highest food hygiene standards.

Our features:
1. Due to the short heating time, high quality products can be obtained.
2. Use of cold and hot materials Due to the design of heat exchange equipment with economical effect of waste heat utilization, the steam consumption is small.
3. It can be used with centrifugal pump series or high pressure homogenizer, and has a wide range of applications, suitable for sterilization of high viscosity materials.

Specifications of our htst pasteurizers:

Model

SM-UHT-1

SM-UHT-2

SM-UHT-4

SM-UHT-6

processing power

0.5-1T/H

1.5-2T/H

3-4T/H

5-6T/H

Sterilization temperature

115-135°C

115-135°C

115-135°C

115-135°C

Use steam pressure

<0.4MPa

<0.4MPa

<0.7MPa

<0.78MPa

High temperature heating time

4-6S

4-6S

4-6S

4-6S

Discharge temperature

<65°C

<65°C

<65°C

<65°C

Motor Power

2.2KW

2.2KW

4KW

5.5KW

Dimensions (mm)

920*920*1400

1100*1100*1700

1200*1200*1800

1400*1400*2000

Equipment net weight

280KG

380KG

550KG

700KG

Applications for our htst pasteurizers:

UHT ultra-high temperature instant sterilizer is suitable for instant sterilization of fresh milk, juice, beverage, frozen sucker, and liquid materials such as ice cream sauce, soy sauce, soy milk, condensed milk, wine, etc. It can also be used for sterilization of liquid materials. The feeding and discharging device adopts T-shaped cock, the flow can be adjusted according to the needs, and the use is reliable.

Detailed pictures of our htst pasteurizers:





Packaging and Shipping

pack:

Standard export carton or wooden box packing.

delivery time:

3-20 days after confirming the order, the specific delivery date should be based on
Production season and order quantity.
