JH high-efficiency energy-saving alcohol distiller

Supplier: Wenzhou Aowei Machinery Co., Ltd.
Region: Zhejiang, China
Contact: Ms Tina Zhang
Price: $6999.00 /set
Min. Order: 1 set

Click here to contact

Product details

Certification:	to be determined	Processing:	distillation, concentrator
brand:	ONW	Output alcohol:	90-95% degrees
Material:	Stainless steel 304, 316L	port:	Shanghai/Ningbo
Package preview:		Surface treatment:	mirror or matt finish
Marketing Type:	Hot Products of 2019	Core component warranty:	1 year
Processing type:	Carbonated drinks	Showroom location:	not any
feed:	dilute alcohol or fermented liquid	strength:	to be determined
Mechanical test report:	if	Packaging Details:	Plastic film, cotton cloth, wooden box - alcohol still
Warranty:	1 year	Health status:	new
Video outbound inspection:	if	payment terms:	L/C, T/T
Origin:	Zhejiang, China	Voltage:	to be determined
After-sales service provided:	Engineers available to repair machinery overseas, online support	Supply capacity:	10 sets of alcohol stills per month
weight:	500 kg	Applicable industries:	Manufacturing plants, food and beverage plants
Core components:	Blood vessel	Dimensions (LWH):	to be determined
high:	≤9m	vitality:	steam.

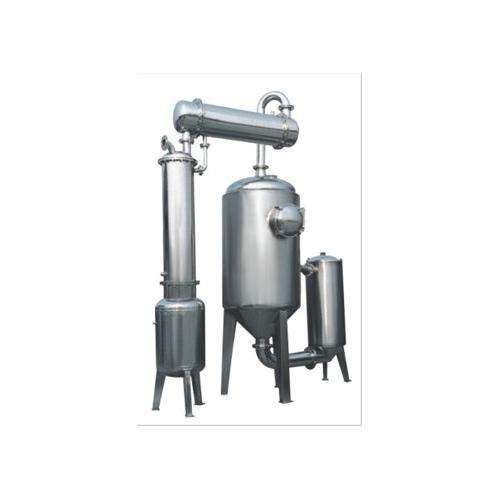

Jianhuaalcohol still(Alcohol Distillation Equipment, Alcohol Distiller) consists of a main body, a tower body, a condenser, a cooler, a buffer tank, and a high-level storage tank.

This equipment changes the traditional tower tank into a concentrator, which integrates concentration and recovery. It is especially suitable for the concentration and recovery of alcohol solvents under normal pressure and high temperature. But not suitable for heat sensitive materials.

It is suitable for the recovery of dilute alcohol in food, light industry and chemical industry. It is beneficial to reduce production cost and economic benefit. Dilute alcohol of 30-50 degrees can be distilled to 93-95 degrees. The final product has a high alcohol content, which can increase the reflux ratio, but reduce the output of the final product, and the alcohol content of the raffinate decreases by ≤3 degrees. It is a good equipment for alcohol recovery and rectification.

Alcohol Distiller Technical Parameters-Alcohol Distiller

	JH-200	JH-300	JH-400	JH-500	JH-600	JH-800
Tower volume (L)	640	1220	1450	2300	2505	3200
Tower height(mm)	6000	7000	7000	7000	7500	7500
High tank volume (L)	300	400	650	800	1000	1500
Condenser area (m²)	5	8	11	18	25	45
Cooling area (m²)	1	1.5	2.2	4	6	8
Heating area (square meters²)	3.0	6.0	6.5	10	15	26
Recovery capacity(kg/h)	45~50	90~1000	150~160	280~300	420~440	600~620
Recovery concentration (%)	93~95
package style	stainless steel corrugated loading material
size length x width x height	2300×700×7300	2600×800×7500	2500×1000×9000	3000×1200×9000	3500×1400×1000	4200×1800×1000
