JH Whiskey Alcohol Distillation Equipment

Supplier: Wenzhou Aowei Machinery Co., Ltd.
Region: Zhejiang, China
Contact: Ms Tina Zhang
Price: $100.00 /set
Min. Order: 1 set

Click here to contact

Product details

Certification:	pending	Packaging Details:	Plastic film, cotton cloth and wooden boxes - whisky distillery equipment.
payment terms:	letter of credit, wire transfer	Feed:	Dilute alcohol or fermentation broth
brand:	ONW	Material:	Stainless Steel 304, 316L
Processing:	distillation, concentrator	After Warranty Service:	Video technical support, online support, spare parts
Video external inspection:	if	Surface treatment:	Mirror or matte finish
vitality:	steam.	weight:	pending
Applicable industries:	Manufacturing Plants, Food and Beverage Plants	After-sales service provided:	Engineers can repair machinery overseas
Marketing Type:	Hot Products of 2019	Showroom location:	not any
Output alcohol:	90-95% degree	Core Components Warranty:	1 year
strength:	pending	Mechanical test report:	if
port:	Shanghai/Ningbo	place of origin; place of origin:	Zhejiang, China
Health status:	new	Core components:	engine
Local service location:	not any	Voltage:	pending
Dimensions (LWH):	pending	Warranty:	12 months
Processing Type:	Carbonated drinks	height:	≤9m
Supply capacity:	10 sets of whisky distillery equipment per month

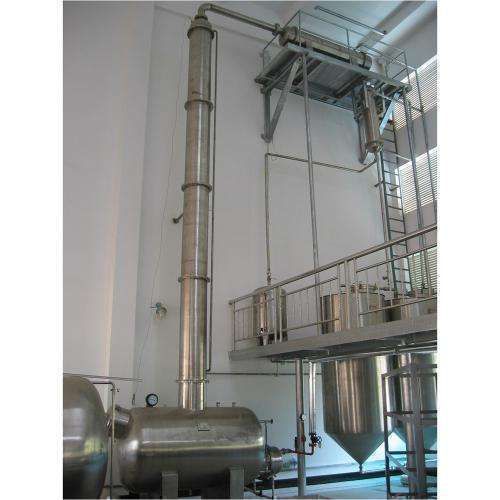

JHAlcohol stills(Alcohol distillation equipment, whiskey distillation equipment) consists of a receiver, a tower body, a condenser, a cooler, a buffer tank and a high-level storage tank.

This equipment changes the traditional tower pot into a concentrator, which integrates concentration and recovery. It is especially suitable for the concentration and recovery of alcohol solvent under normal pressure and high temperature. But not for heat-sensitive materials.

It is suitable for dilute alcohol recovery in pharmaceutical, food, light industry, chemical and other industries. Conducive to reducing production costs and economic benefits. Dilute alcohol from 30~50 degrees to 93~95 degrees can be distilled. The alcohol content of the finished product is high, which can increase the reflux ratio, but it will reduce the output of the finished product. The alcohol content of the raffinate discharged is less than or equal to 3 degrees. It is a special equipment for alcohol recovery and distillation.

Technical Parameters of Alcohol Distiller - Whiskey Distillery Equipment

	JH-200	JH-300	JH-400	JH-500	JH-600	JH-800
Tower volume (L)	640	1220	1450	2300	2505	3200
Tower height (mm)	6000	7000	7000	7000	7500	7500
High tank volume (L)	300	400	650	800	1000	1500
Condenser area (m²)	5	8	11	18	25	45
Cooling area (m²)	1	1.5	2.2	4	6	8
Heating area (m²)	3.0	6.0	6.5	10	15	26
Recovery capacity (kg/h)	45~50	90~1000	150~160	280~300	420~440	600~620
Recovery Concentration (%)	93~95
package style	Stainless steel corrugated charging
size length x width x height	2300×700×7300	2600×800×7500	2500×1000×9000	3000×1200×9000	3500×1400×1000	4200×1800×1000
