Hot sale chemical polyacrylamide thickener with factory price made in china

Product details
Applicable Industries:Manufacturing Plant,Machinery Repair Shops,Energy & Mining;recovery rate:high;
Place of Origin:Henan China;spare parts:supply by us;
using life:more than 3 years;Warranty of core components:1 Year;
Motor Type:AC Motor;Dimension(L*W*H):Specification;
Video outgoing-inspection:Provided;Marketing Type:Hot Product 2019;
After-sales Service Provided:Free spare parts,Video technical support,Field installation, commissioning and training,Field maintenance and repair service;company experience:more than 35 years;
Packaging Detail:seaworthy container or as per your deman;Brand Name:XKJ;
price:competitive;Package Preview:;
Supply Ability:20 Set/Sets per Month;Machinery Test Report:Provided;
Certification:ISO9001:2008,CE;Warranty:1 Year;
Application:dehydration, desliming etc;Type:Mining Thickener;
Port:Qingdao/Shanghai/Tianjin;Showroom Location:None;
Delivery timely:duly;workflow:design by our engineers;
Payment Terms:L/C,T/T,Western Union;Product quality:reliable;
Production Capacity:above 85%;quality control:go through five checks;
Condition:New;Core Components:PLC,Bearing,Motor,Pump;
Local Service Location:Indonesia,Mexico,Australia,Morocco,South Korea,Chile,Colombia,Romania,South Africa;



Product Discription of Thickener machine:

The  Thickener is suitable for dehydrating water of theconcentration and gangue in the concentrating factory, make the mash of 20-30% raise up to 40-70% about. The concentration machineis widely used for melting, chemical, coal, nonmetal concentration, environment protected etc



Thickener Machine is suitable for dehydrating water of the concentration & gangue in the concentrating factory.





Thickener machine features:

(1) Add flocculent settlement increased the size of solid particles, thus accelerating the velocity;

(2) shorten the installation tilt plate mineral particles from the settlement to increase the settlement area;

(3) play a layer of thick mud deposition flocculation, filtration, compression and to handle the volume;

(4) equipped with a complete-controlled facilities.





Product Application:

It is widely used for dealing with slime, wastewater, waste residue in metallurgy, mine, coal, petrochemical industry, building materials, environmental protection department etc.



Product Principle:

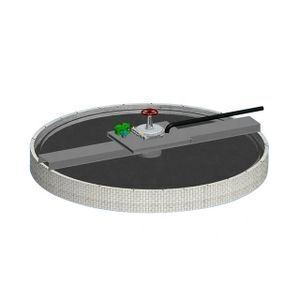

This thickener consists of round thickener and harrow scrapping machine, the solid particles suspend in thickener settling by gravity, the pulp in the upper turn into clean water, so that the separation can be realized.  Slime that sediment in the bottom of the thickener is discharged by the harrow scrapping continuously, and clean overflow from the upside.





Parameter of Langchao thickener with central transmission

Model

Thickening tank
 diameter(mm)

Thickening tank depth (mm)

Sedimental
 area(m2)

Revolution of rabble frame(r.p.m)

Motor model

Motor power(kw)

Motor revolution(r.p.m)

Capacity(t/d)

W of
tank(t)

(t).

NZS1

1800

1800

2.55

0.5

Y90L-6

1.1

910

1.3∼5.6

602

1300

NZS2.5

2500

1800

4.9

0.33

Y90L-6

1.1

910

5∼10.8

1730

2355

NZS3

3600

1800

10.2

0.33

Y100L-6

1.5

940

5∼22.4

1730

2975

NZS6

6000

2956

28.3

0.3

Y90L-4

1.5

1400

14∼62

5690

8700

NZS8

8000

3318

50.2

0.27

Y132S-6

3

960

25∼120

11065

15460

NZS9

9000

3000

63.5

0.25

Y132S -6

3

960

32∼150

12188

16682

NZS12

12000

3600

113

0.19

Y132M2-6

3

960

50∼250

24060

33131

NZS15

15000

3600

177

0.1

Y132M2-6

5.5

960

70∼350

35296

55499

NZS18

18000

4400

268

0.1

Y132M2-6

5.5

960

100∼560



10139

NZS20

20000

4400

314

0.1

Y132M2-6

5.5

960

200~1440

24500





Company Information



Henan Xing yang Mining Machinery Manufacturer has been one of the medium and small mining machinery manufacturers in China. It mainly deal with Crushing and flotation equipment, Full set of Mineral processing equipment, dryer and rotary kiln , Lime and Cement production equipment and other equivalents.

Description of beneficial equipment:
    The equipment of mining production line cover feeder, crusher, ball mill, classifier, vibrating screen, rocking bed, magnetic separator, mix tank, flotation machine and so on.
