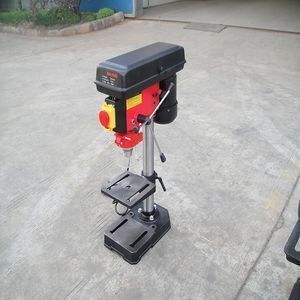

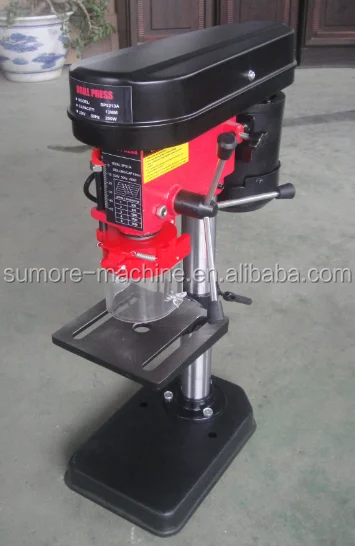

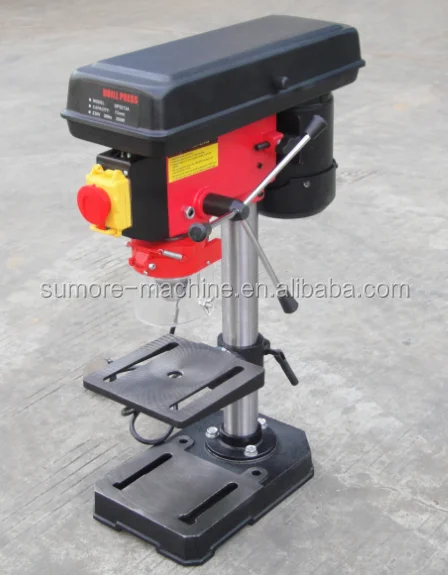

Side or front switch simple mini bench drill press machine SP5213A

Click here to contact

Product details

Brand Name:	Sumore Machinery;	Local Service Location:	Viet Nam;
Height:	580mm;	type:	Column Drilling Machine;
Max. Drilling Dia. (mm):	13;	Spindle taper:	B16;
Certification:	CE SGS;	Model Number:	SP5213A;
Weight (KG):	17 KG;	Showroom Location:	Viet Nam;
Payment Terms:	L/C,D/A,D/P,T/T;	Motor power:	250/350W;
Column dia.:	46;	Machinery Test Report:	Provided;
Drilling Speed:	Normal Speed;	Place of Origin:	Shanghai China;
Packing size:	435x340x230mm;	Power (kW):	250W or 350W;
Table size:	160x160mm;	Warranty:	1 Year;
After Warranty Service:	Video technical support,Online support;	CNC or Not:	Normal;
Key Selling Points:	Competitive Price;	Voltage:	Customer's Requirement;
Dimension(LWH):	340x230x430mm;	Swing:	210mm;
Condition:	New;	Spindle travel:	50mm;
Port:	Shanghai Port;	After-sales Service Provided:	Online support,Video technical support;
Class of speed:	5;	Drilling capacity:	13mm;
Marketing Type:	Hot Product 2019;	Core Components:	Motor;
Range of Spindle Speed(r.p.m):	740 - 3140 r.p.m;	Warranty of core components:	1 Year;
Packaging Detail:	1 set/polywood case (aluminum strips strengthen);	Video outgoing-inspection:	Provided;
Applicable Industries:	Manufacturing Plant,Machinery Repair Shops,Home Use,Construction works ;	Supply Ability:	10000 Set/Sets per Month;

HOME

Product Description

SP5213A has the power 250W or 350W, can work with aluminumn, copper, steel, wood etc, features as below:

1. High Rigid Construction

2. Easy Operation and Extended Durability

3. Different Sizes and Replaceable Worktables

4. Considerable Safety Design

5. 1/2" (13mm) max chuck capacity

6. 210mm swing

7. - 45 degree ~ 0 degree ~ + 45 degree table tilt L&R

8. 5 spindle speeds

9. chuck guard is standard accessories

10. Optional micro-switch for CE requirement

Technical Data

Model	SP5213A
Drilling Capacity	13 mm (1/2 '')
Swing	210 mm
Spindle Taper	B16
Spindle Travel	50 mm
Spindle Speeds Steps	5 Steps
Spindle Speed	620 - 2,620 / 740 - 3,140 rpm
Maximumn Distance from Spindle Axis to Surface of Column	105 mm
Maximumn Distance fron Spindle End to Surface of Worktable	220 mm
Maximumn Distance from Spindle End to Surface of Base	300 mm
Column Diameter	46 mm
Height	580 mm
Worktable Size	160 x 160 mm
Worktable Rotate Angle (Left / Right)	+/- 45°
Base Size	290 x 290 mm
Motor Power	250 / 350 w
Net / Gross Wieght	16 / 17 kg
Packing Size	435 x 340 x 230 mm

Accessories

Packaging & Shipping

Package	1 set/polywood case (aluminum strips strengthen)
Minimum Order Quantity (MOQ)	1 set
Full Container Loading Quantity (FCL)	840 sets/20’GP (unitary; customerized packing available)
Delivery Time	20 calendar days after receiving of advance / full payment
