Types of 5 speed drill press SP5216A-II for wood and metal

Click here to contact

Product details

Spindle taper:	B16;	Packing size:	780450280mm;
Swing:	310mm;	Packaging Detail:	1 set/polywood case (aluminum strips strengthen);
Port:	Shanghai Port;	Payment Terms:	L/C,D/A,D/P,T/T;
Supply Ability:	10000 Set/Sets per Month;	Table size:	260*260mm;
N.W:	40kg;	Model Number:	SP5216A-II;
Place of Origin:	Shanghai China;	Drilling capacity:	16mm 5/8'';
G.W:	42kg;	Height:	900mm;
Spindle travel:	60mm;	Base size:	420*250mm;

HOME

Product Description

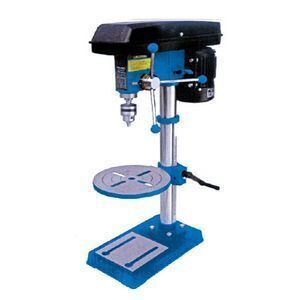

Types of 5 speed drill press SP5216A-II for wood and metal!!!!! increases the products range of Sumore Machinery. This type hobby drill

press is a compact and robust bench drill, extremely easy to operate and seldom goes wrong.

Superbly well robust construction enables it to handle all common metal-working duties drilling

classroom or workshop process. Clear components are also convenient to install or transport.

Model	SP5216A-II
Drilling Capacity	16 mm (5/8 '')
Swing	260 mm
Spindle Taper	B16
Spindle Travel	60 mm
Spindle Speeds Steps	5 Steps
Spindle Speed	620 - 2,620 / 740 - 3,140 rpm
Maximumn Distance from Spindle Axis to Surface of Column	130 mm
Maximumn Distance fron Spindle End to Surface of Worktable	400 mm
Maximumn Distance from Spindle End to Surface of Base	515 mm
Column Diameter	58 mm
Height	900 mm
Worktable Size	260 x 260 mm
Worktable Rotate Angle (Left / Right)	+/- 45°
Base Size	420 x 250 mm
Motor Power	350 / 550 w
Net / Gross Wieght	40/42kg
Packing Size	780 x 450 x 280 mm

Packaging & Shipping

Package	1 set/polywood case (aluminum strips strengthen)
Minimum Order Quantity (MOQ)	1 sets
Full Container Loading Quantity (FCL)	280sets/20’GP (unitary; customerized packing available)
Delivery Time	25 calendar days after receiving of advance / full payment
