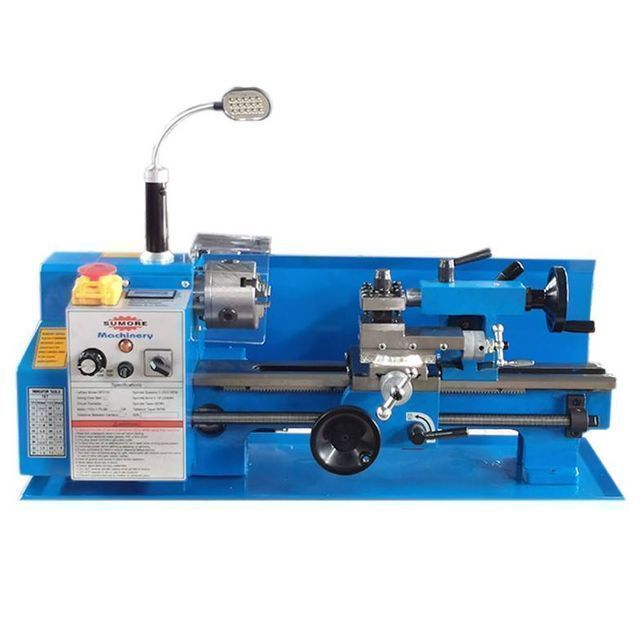

Manufacturer torno metal lathe hobby mini manual lathe price SP2102
-
Supplier: Shanghai Sumore Industrial Co., Ltd. -
Region: Shanghai, China -
Contact: Ms Tobey Yu -
Price: $300.00 /set -
Min. Order: 1 set
| Tailstock taper: | MT2 | Spindle bore diameter: | 20mm |
| Video shipment inspection: | if | Mechanical test report: | if |
| brand: | Somo Machinery | Year: | new |
| Distance between centers: | 200/300/350mm | type: | horizontal |
| Showroom location: | Vietnam | Voltage: | 120 / 230 volts |
| Dimensions (L*W*H): | 720 x 300 x 290mm | Health status: | new |
| Chuck diameter: | 80 mm | Packaging Details: | 1 set/plywood box (reinforced by aluminum strips) |
| Weight (kg): | 45 kg | port: | Shanghai port |
| Core components: | Bearings, pumps, gears, motors, gearboxes, PLCs, pressure vessels, engines | Processing capacity: | relaxing work |
| Marketing Type: | 2019 Hot Products | Spindle speed range: | 50-2500rpm |
| Core component warranty: | 1 year | Origin: | China Shanghai |
| Swing on the cross slide: | 110 mm | payment terms: | L/C, Western Union, D/P, D/A, T/T, MoneyGram |
| Spindle taper: | MT3 | Main selling points: | competitive price |
| Cross slide travel: | 65 mm | maximum. Turning length (mm): | 300 mm |
| Spindle bore diameter (mm): | 20 | Swing in bed: | 180 mm |
| Spindle speed range (rpm): | 50 - 2500 rpm | maximum. Work piece length (mm): | 300 |
| Applicable industries: | Building materials store, machinery repair shop, manufacturing plant, household, retail, construction | Supply capacity: | 1000 sets per month |
| Warranty: | 1 year | Composite slider stroke: | 35mm |
| Spindle motor power (kW): | 0.4/0.55 | model: | SP2102 |
- Simple and strong steel construction
- Simple operation and convenient maintenance
- Brushless Motor
- variable speed
- Different table length options
- Perfect security design
|
Model |
SP2102 |
|
swinging on the bed |
180 mm |
|
swing cross slide |
110mm |
|
distance between centers |
200 / 300 / 350 mm |
|
Spindle hole |
20mm |
|
Headstock taper |
MT 3 |
|
Spindle speed range |
50 - 2,500 rpm |
|
Composite slider stroke |
35 mm |
|
Lateral sliding travel |
65mm |
|
Tailstock sleeve taper |
MT 2 |
|
British thread range |
12 - 52 tons |
|
Metric thread range |
0.5 - 2.5 mm |
|
Motor Power |
400 / 550 watts |
|
power supply |
120 / 230 volts |
|
net weight |
35 / 38 / 40 kg |
|
Package Dimensions (LxWxH) |
660 / 760 / 810 x 310 x 320 mm |
|
gross weight |
38 / 42 / 45 kg |
|
Standard accessories |
Optional accessories |
|
Three-jaw chuck |
Four-jaw chuck |
|
dead point |
panel |
|
cutting tool |
Panel Clamping Kit |
|
replace gear set |
TiN coated cutting tools and replaceable tips |
|
baffle |
solid rest |
|
Chuck Safety Guard |
follow the rest |
|
stand up |
Drill Chucks and Drill Rods |
|
oil pan |
Live Center |
|
oil gun |
Quick change tool holder |
|
Manuals and Parts Lists |
Feed Rod Clutch |
|
Screw guard |
|
| Digital readout depth of cut | |
| cooling system | |
| working lamp |
-
