High precision small milling machine cheap price for sale SP2203

Supplier: Shanghai Sumore Industrial Co., Ltd.
Region: Shanghai, China
Contact: Ms Tobey Yu
Price: $200.00 /set
Min. Order: 1 set

Click here to contact

Product details

Distance between spindle to table:	280mm;	Voltage:	Customer Requirement;
Spindle speed low range:	100-1100 rpm±10%;	Supply Ability:	5000 Set/Sets per Month;
CNC or Not:	Normal;	Model Number:	SP2203;
Dimension(LWH):	520x500x700mm;	T-slot size:	12mm;
Type:	VERTICAL;	Face milling capacity:	30mm;
Weight:	50kg;	Payment Terms:	L/C,D/A,D/P,T/T;
Spindle taper:	MT3 or R8;	After-sales Service Provided:	Overseas third-party support available;
Power:	350w;	Warranty:	1 Year;
Packaging Detail:	1 set/polywood case (aluminum strips strengthen);	Port:	Shanghai Port;
Spindle speed high range:	100-2500 rpm±10%;	Drilling capacity:	13mm;
Brand Name:	Sumore Machinery;	Condition:	New;
Certification:	CE Certificate;	End milling capacity:	16mm;
Effective table size:	390x92/460x120/400x145mm;	Motor output power:	350W;
Delivery Detail:	Shipped in 25 days after payment;	Place of Origin:	Shanghai China;

Product Description

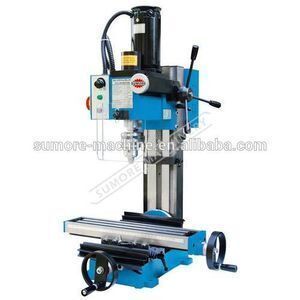

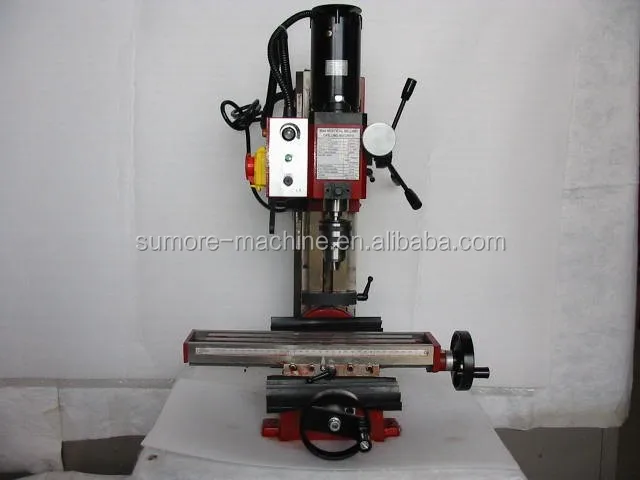

SP2203 Mini vertical turret miling machine is new not used metal milling machine, this light industrial milling machine is for job work, and it’s quite competitive in the market. It is made in China, but with same quality with Japan milling machine
Features / advantage of milling machine is as below:1. with cast iron for vibration free running
2. Milling head and column tilts to 45° Left & Right
3. Variable speed motor with a 2 speed gearbox
4. Course down feed for drilling
5. Operations fine down feed control for accurate tool height setting
6.3MT spindle fitted with a 13mm drill chuck and arbor

Technical Data

Model	SP2203
Drilling Capacity	13 mm
End Milling Capacity	16 mm
Face Milling Capacity	30 mm
Longitudinal Axis Travel (X)	100 mm
Cross Axis Travel (Y)	220 mm
Headstock Axis Travel (Z)	180 mm
Effective Worktable Size	390 x 92 mm
Throat Depth	170 mm
Spindle Taper	MT3 or R8
Spindle Speed Range	100 - 2,500 rpm
Distance Between Spindle to Table	280 mm
T-slot Amount	3
T-slot Size	12 mm
Head Tilt Angle (Left / Right)	45° / 45°
Motor Power	350 w
Voltage and Frequency	Customrized
Overall Dimension (LxWxH)	520 x 500 x 700 mm
Net Weight	50 kg
Packing Size (LxWxH)	550 x 550 x 730 mm
Gross Weight	68 kg

Accessories

Standard Accessories	Optional Accessories
Drill Chuck	Automatic Worktable Feeder
Wrench Set	Spindle Speed Digital Readout
Toolbox and maintain tools	Cutting Depth Digital Readout
Oil Tray	Clamping Kit
Manual Instruction & Parts List	Mill Chuck
	Milling Set
	Tapping Set
	Boring Set
	Swivel Worktable
	Vice
	Stand
	Work Light

Packaging & Shipping

Package	1 set/polywood case (aluminum strips strengthen)
Minimum Order Quantity (MOQ)	1 set
Full Container Loading Quantity (FCL)	120 sets/20’GP (unitary; customerized packing available)
Delivery Time	25 calendar days after receiving of advance / full payment
