16mm drilling machine zj4116 central mechanical drilling machine accessories
- 180.00 1 - 9 sets
- 99.00 10 - 49 sets
- 80.00 50 - 99 sets
- 68.00 >=100 sets
| working desk size: | 190*190mm | Base size: | 340*210mm |
| Name: | 16mm drilling machine zj4116 central mechanical drilling machine accessories | model: | SP5216A-I |
| Package preview: | Voltage: | 110V-240V | |
| Certification: | CE certification | grade: | DIY |
| Spindle taper: | MT#2 | Drill Chuck: | 16mm |
| payment terms: | L/C, T/T | Origin: | China |
| port: | Shanghai | Packaging Details: | 1 set/plywood box (reinforced by aluminum bars) 16mm drilling machine zj4116 central mechanical drilling machine accessories |
| Spindle travel: | 65mm | maximum. Swing diameter: | 310mm |

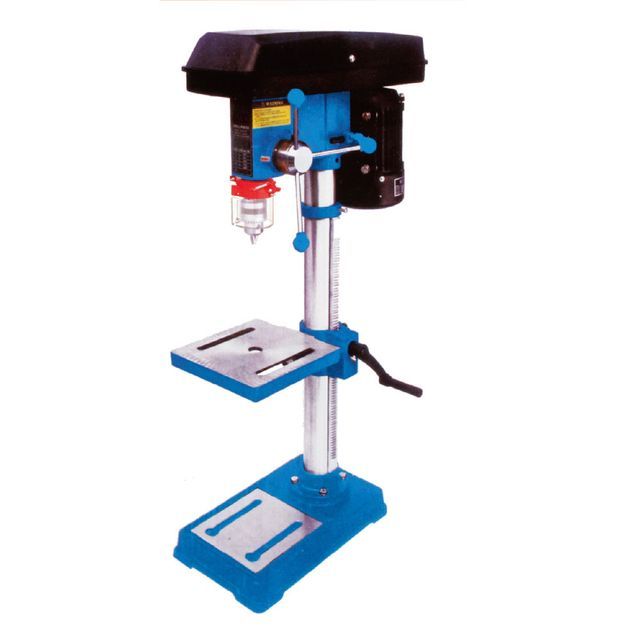

SP5216A 16mm drilling machine zj4116 central mechanical drilling machine accessories
Looking for a great portable drill press for deep hole drilling in metal wood or plastic materials?
Check out our wide variety of metalworking applications including table lathes, mills,
Band saws, drilling machines, surface grinders to Sumore Machinery related spare parts and accessories.
Drilling Machine 16mm 550w Laser Mini Drilling Machine Price SP5216A product line from Sumore machinery, this type of hobby drill press is a compact yet sturdy benchtop drill press that is extremely easy to operate and rarely goes wrong. The very sturdy construction allows it to handle all common metalworking tasks such as drilling classroom or workshop processes, and the clear components are also easy to install or transport.
Technical data
| Model | SP5213B |
| Drilling capacity | 13 mm (1/2 in) |
| swing | 210mm |
| Spindle taper | B16 |
| Spindle travel | 50 mm |
| Spindle speed steps | 5 steps |
| Spindle speed | 620 - 2,620 / 740 - 3,140 rpm |
| Maximum distance from spindle axis to column surface | 105 mm |
| The maximum n distance from the end face of the spindle to the table surface | 220mm |
| Maximum distance from spindle end to base surface | 300 mm |
| Column diameter | 46mm |
| high | 580mm |
| working desk size | 190 x 190 mm |
| Table rotation angle (left/right) | +/- 45° |
| basic size | 340 x 210 mm |
| Motor Power | 250w |
| Net weight/Gross weight | 27/29 kg |
| Package Size | 570 x 410 x 265mm |
