400mm Width Heating Roller Press Calender Machine For Li ion Battery Production Line

Click here to contact

Product details

Certification:	CE Certificate;	Max roller width:	400mm,can be customized;
Brand Name:	TOB;	Application:	Battery anode rolling;
Port:	xiamen;	Packaging Detail:	Packaging Details: inside foam cotton collision avoidance, outside standard export wooden case.;
HS Code:	8463900090;	Weight:	N/A;
Product name:	Roller Press Machine;	Warranty:	1 Year,1 year;
After-sales Service Provided:	Engineers available to service machinery overseas;	Composite roll size:	200x400;
Related industry:	lithium battery;	Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram,paypal;
Contact No.(whatsapp):	+86 15980946821;	Dimension(LWH):	900 (L) * 1110 (W) * 1350 (H);
Condition:	New;	Power(W):	10KW;
Used for:	For battery producing line;	Voltage:	3 phase AC380V, 50HZ;;
Supply Ability:	10000 Set/Sets per Month Hot Roll Machine;	Keyword:	Roller heat press machine;
Place of Origin:	Fujian China;

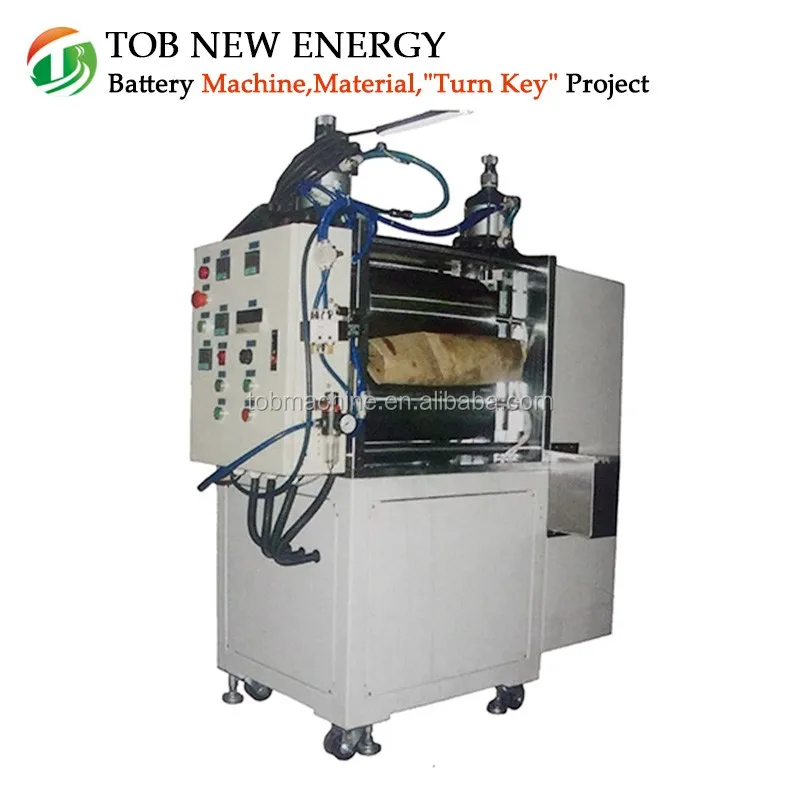

400mm Width Heating Roller Press Machine For Li ion Battery Production Line

PRODUCT INFO

Specification

Function:

The machine is used for battery anode material and Cu or AL mesh substrate temperature composite.

Features:

1.Compound main roller surface roughness :0.2

2.Compound main roller concentricity: ± 0.007mm.

3.Compound main roller cylindricality: ± 0.007mm.

4.Compound main roller materials :GCr15,Quenching hardness HRC50,Hard chrome plated; Coating thickness 0.1mm;surface hardness of about HRC60.

Model	TOB-HC-HRP
Power	3 phase AC380V, 50HZ; Button light and electromagnetic valves AC 220V; Motors 380V; Switchboard power of about 10KW;
Size	900 (L) * 1110 (W) * 1350 (H)
Gear Motor	Imported
Composite roll size	φ200x400(mm)
Basic configuration	1.Imports of non-contact temperature sensing 2. Import temperature Controller. 3. AirTAC cylinder and solenoid valve.
