200V 20Ohm Portable Battery Voltage and Resistance Tester
- 200.00 set
| Port: | XiaMen; | Operating Temperature: | -10-40℃; |
| Brand Name: | TOB; | Weight: | 200g; |
| Related Industry: | Lithium Ion Battery; | Product Name: | Portable Battery Tester; |
| Voltage Resolution Ratio: | 1mV, 10mV, 100mV; | Supply Ability: | 10000 Set/Sets per Month Portable Battery Tester; |
| Voltage Testing Range: | 0-1.999V, 2-19.99V, 20-199.9V; | Payment Terms: | L/C,D/A,D/P,T/T,Western Union,MoneyGram; |
| Resistance Testing Range: | 0-199.9mΩ, 200-1999mΩ, 2000-20000mΩ; | Dimension: | 130*72*30mm; |
| Model Number: | TOB-SM8124; | Accuracy: | 0.1mΩ, 1mΩ, 10mΩ; |
| Packaging Detail: | Standard Export Packing; | Place of Origin: | Fujian China; |

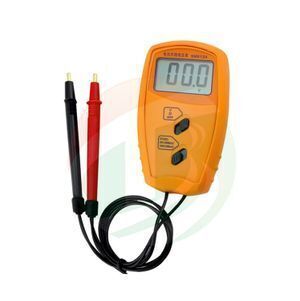

200V 20Ohm Portable Battery Voltage and Resistance Tester

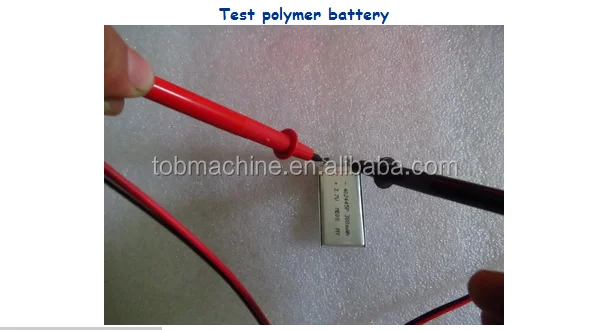

TOB-SM8124 Resistance and Voltage Tester is a portable battery tester used for battery voltage and internal resistance test, it is suitable for lithium-ion battery, nickel-metal hydride, lithium manganese, lead-acid battery and other single battery or battery pack with voltage 200V.
Model | TOB-SM8124 |
Voltage testing range | 0-1.999V, 2-19.99V, 20-199.9V |
Voltage resolution ratio | 1mV, 10mV, 100mV |
Inner resistance testing range | 0-199.9mΩ, 200-1999mΩ, 2000-20000mΩ |
Accuracy | 0.1mΩ, 1mΩ, 10mΩ |
Operating temperature | -10-40℃ |
Suitable battery | Lithium battery, Nickel metal hydride, nickel cadmium battery, lead-acid battery and so on. |

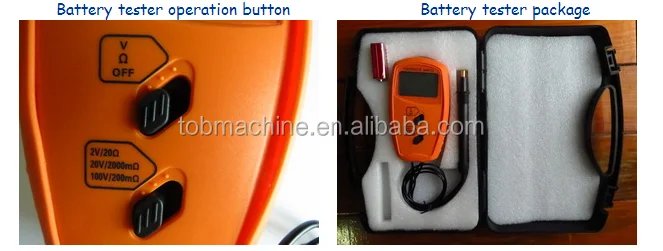

Structure | LCD display testing results Simple operation with Button press |
Notice | This machine can not test battery with voltage more than 200V, Please don’t test battery more than 200V. It will damage the machine. Guarantee that the battery positive and negative connection is right. |
Dimension(L*W*H) | 130*72*30mm |
Weight | 200g |
