Lithium ion Battery Winding Making Machine With Replaceable Winding Die

Product details
Port:Xiamen;After-sales Service Provided:Overseas service center available;
Warranty:1YEAR,One Year with lifetime support;Condition:New;
Dimension(L*W*H):360*310*280mm;Place of Origin:Fujian China;
Service:Engineer available service oversea;Voltage:AC110V/220V, 50/60HZ;
Export market:Asia,Middle East,Europe,America;Supply Ability:10000 Set/Sets per Month TOB-JR135-C High Quality Semi-Auto Winding Machine Automatic Fan;
Power(W):40W;Winding speed:0 - 170 RPM Adjustable;
Working Voltage:AC110V/220V, 50/60HZ;Product name:Battery Winding Machine;
Application:Lithium Polymer Battery;Related industry:Lithium ion battery;
Compliance:CE approval;Packaging Detail:Inside foam cotton collision avoidance, outside standard export wooden case for TOB-JR135-C High Quality Semi-Auto Winding Machine Automatic Fan Winding Machines For Li-Ion Battery;
Brand Name:TOB;Certification:CE;
Payment Terms:L/C,D/A,D/P,T/T,Western Union,MoneyGram,Alibaba Trade Assurance Order;Weight:About 20kg (45 lbs);
Applicable Industries:lithium ion battery;Net weight:About 20kg (45 lbs);
TOB NEW ENERGY

Lithium ion Battery Winding Making Machine With Replaceable Winding Die

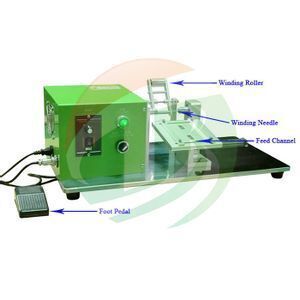

TOB-JR135-Cylinder semi-automatic winder machine is used for winding battery anode/cathode electrodes with separator together in the research of Li-ion cylinder batteries.



Model

Semi-Automatic Winding Machine TOB-JR135-Cylinder

Working Voltage

AC110V/220V, 50/60HZ

Power

40W

Warranty

One Year limited warranty with lifetime support

Winding Speed

0 - 170 RPM Adjustable

Suitable battery size

Less than Φ35*L90mm, or according to your requirement

Winding Mode

Switchable between clockwise and counterclockwise

Output

70-100EA/h, according to battery size and maunal

Product Dimensions

(L*W*H)

550*310*270mm

Net weight

About 20kg (45 lbs)

Package size

720*320*280mm

Package weight

40kg

Application Notes

This machine can be used for cylinder battery with round winding shaft,

and you can also choose the square winding shaft for pouch cell core winding,

We will supply with the suitable winding accessories according to your battery model
