Lab Automatic Film Applicator Powder Coating Machine For Battery

Click here to contact

Product details

Slicker width:	0-150mm;	Place of Origin:	Fujian China;
Applicable Industries:	Battery;	Dimension:	550310330mm;
Certification:	CE Certificate;	Slicker adjustable range:	0.01-3.5mm;
Automatic Grade:	Automatic;	Showroom Location:	INDIA;
Local Service Location:	INDIA;	Condition:	New;
Temperature control accuracy:	±1°C;	Port:	xiamen;
After Warranty Service:	Video technical support,Online support,Spare parts,Field maintenance and repair service;	Weight:	About 40kg;
Voltage:	AC110V-240V, 50/60HZ;	Application:	lithium battery electrode coating;
Heating dry system:	RT-200°C;	Warranty:	1 YEAR;
Packaging Material:	wood;	Driven Type:	Electric;
After-sales Service Provided:	Engineers available to service machinery overseas,Free spare parts,Field maintenance and repair service,Online support,Video technical support;	Heating type:	Electrical Heating;
Coating speed:	0-100mm/s;	Coating material:	For Varies Kinds Of Materials Coating;
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram;	Packaging Detail:	Packaging Details: inside foam cotton collision avoidance, outside standard export wooden case. Delivery Detail: Shipped in 30 days after payment;
Dimension(LWH):	550310330mm;	Packaging Type:	case;
Type:	coating machine;	Key Selling Points:	Automatic;
Product name:	Vacuum Coating Machine;	Supply Ability:	10000.0 Set/Sets per Month Vacuum Coating Machine;
Brand Name:	TOB;

TOB NEW ENERGY

Nano Ceramic Coating Metal Coating Machine Small Mini Vacuum Coating Machine

The TOB-VFC-150 Film coating machine with dryer is used for varies kinds of materials coating.

It is supplied with vacuum pump and heating system, having an precision heating temperature up to 200°C.

The film coating machine is mainly used for lithium battery electrode coating for coin cell assemble and pouch cell research.

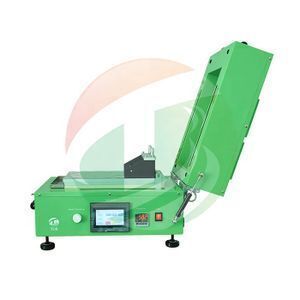

Machine model	Automatic film coating machine with dryer TOB-VFC-150
Source voltage	AC110V-240V, 50/60HZ
Power	650W
Coating speed	0-100mm/s, Step-less transmission Accuracy: 10mm/sec
Advantages	Supply with dry function, vacuum pump
Stroke length	10 - 250 mm adjustable by using Adjustable Position Switch
Platform	Aluminum alloy flat vacuum chuck Vacuum Chuck Dimensions: 365mm(L) * 200mm(W)*30mm(T)
Slicker width	0-150mm
Slicker adjustable range	0.01-3.5mm
Heating dry system	RT-200°C, Digital temperature controller
Temperature control accuracy	±1°C
Dimension	550310330mm
Weight	About 40kg
Warranty	One Year limited warranty with lifetime support
Reference Pictures	1 Built in vacuum pump 2 Heating system : Installed on the top cover Built in digital temperature controller with accuracy of +/-1°C Suspension support helps open cover easily and safely. Max. Heating Rate:10°C/min Max. Heating Temp.:200°C 3 One 150mm width micrometer adjustable film applicator is included Traverse Pusher is included for pushing the Film Applicator to ensure the constant coating speed
