Best Price 300mm Width Roll to Roll Battery Electrode Coating Machine Equipment With Intermittent Coating Function

Supplier: Xiamen Tob New Energy Technology Co., Ltd.
Region: Fujian, China
Contact: Ms Ailsa Zheng
Price: $30000.00 /set
Min. Order: 1 set

Click here to contact

Product details

Single-coated Dry Thickness Range:	20-150μm;	Condition:	New;
Driven Type:	Electric;	Certification:	CE Certificate;
Effective Coating Width:	≤260mm;	Packaging Material:	wood;
Oven Length:	1 meter/section;	Type:	coating machine;
Brand Name:	TOB;	Packaging Detail:	Standard Export Packing for Electrode Coating Machine.;
Application:	Lithium Battery Electrode Coating;	Oven Internal Temperatur:	Max120℃;
Dimension(LWH):	1800 * 1300 * 1200mm;	Warranty:	1 YEAR;
Applicable Industries:	Lithium Ion Battery;	Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram;
Roller Width:	300mm;	Packaging Type:	cartons;
After-sales Service Provided:	Free spare parts,Field installation, commissioning and training,Field maintenance and repair service,Online support,Video technical support;	Key Selling Points:	Competitive price;
Weight:	About 1200kg;	Place of Origin:	Fujian China;
Product Name:	Electrode Coating Machine;	Supply Ability:	1000 Set/Sets per Month Electrode Coating Machine;
Port:	XiaMen;	Coating Accuracy:	±3um;
Automatic Grade:	Automatic;	Voltage:	3PH / 380V / 50HZ;
Slurry Viscosity:	2000-12000 Cps;

TOB New Energy

Best Price 300mm Width Roll to Roll Battery Electrode Coating Machine Equipment With Intermittent Coating Function

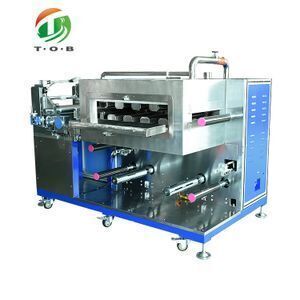

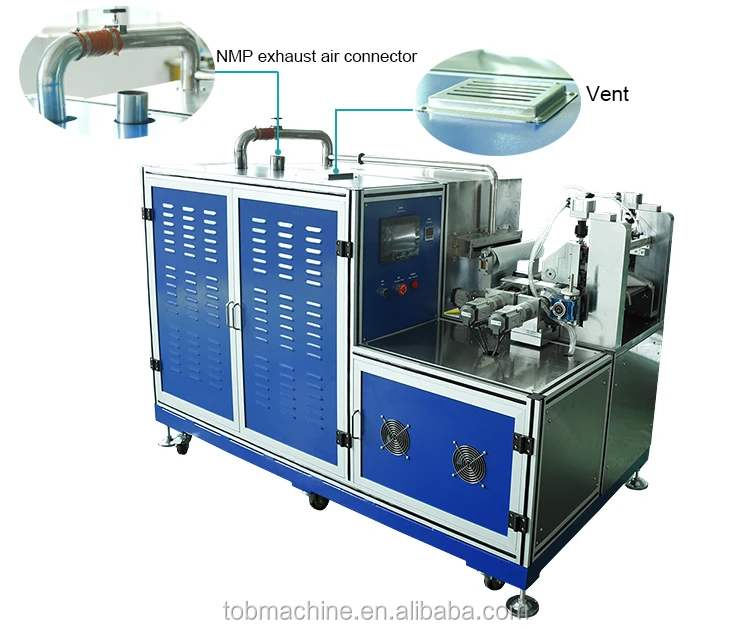

1. TOB-SY300J is a lab transfer coating machine, with continuous coating and intermittent coating function, Intermittent coating can set blank position for tab, especially used for cylinder cell and pouch cell (winding process).

Features:

Can switch freely to achieve continuous and intermittent coating.
Substrate tension control, transport stability, configuration correction device.

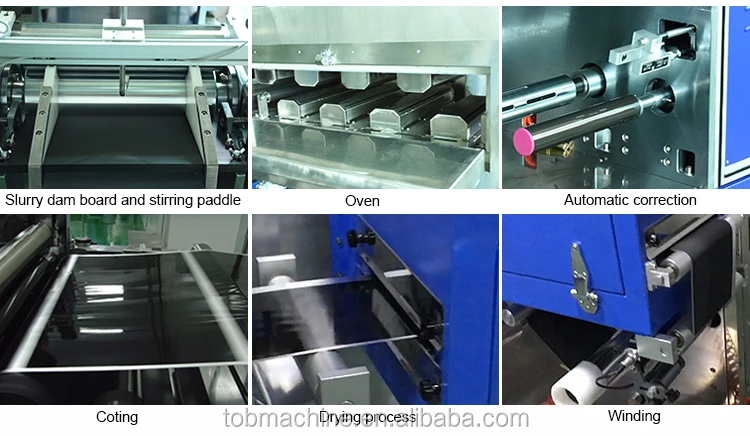

Hot air oven, the upper and lower double-sided blowing, high-quality drying effect.
Three-roll transfer coating, wider coating window.
Comma scraper measurement, with precision adjustment agencies, access to high-precision coating.
PLC control,Touch screen operation, easy to use.
Optional solvent recovery device.

No.	Item	Technical parameters	Note
1	Suitable system	Lithium iron phosphate, lithium cobalt oxide, lithium manganese oxide system battery cathode and anode electrode coating process
2	Substrate thickness	Aluminum foil: 11-30um Copper foil: 9-30um
3	Roller width	300mm
4	Effective coating width	≤260mm
5	Coating accuracy	±3um
6	Slurry viscosity	2000-12000 Cps
7	Single-coated dry thickness range	20-150μm
8	Solvent characteristics	Oily solvent NMP(s.g=1.033, b.p=204℃)
8	Solvent characteristics	Watery solvent H2O/NMP(s.g=1.000, b.p=100℃)
9	Solid content	Cathode, S.C. 60%±5%
9	Solid content	Anode, S.C. 50%±5% (PVDF system) S.C. 50%±5% (SBR system)
10	Specific gravity	Cathode, 1.5-2.59/cm2 Anode, 1-1.89/cm2

2. Main Structure

2.1 Equipment Dimension: L1800 * W1300 * H1200mm, Weight: about 1.2T

2.2 Machine head mechanism

No.	Item	Technical parameters	Note
1	Roller installing structure	Steel frame firmly installed
2	Roller surface treatment	Metallic aluminum roller surface oxidation
3	Tension control system	Automatic constant tension control
4	Correction method	Automatic EPC control, travel 50mm
5	Feed roll materials method	Roll materials with 3-inch inflatable shaft fixed
5	Feed roll materials method	Unwinding with single inflatable shaft
6	Maximum unwinding diameter	∅250mm
7	Maximum bearing capacity of inflatable shaft	80Kg
8	Number of unwinding inflatable shaft	1 pcs
9	Main drive motor	Servo motor
10	Scraper structure	Double-sided comma scraper
11	Coating roller(steel roller)	Surface hard chromium plating
12	Back roller(glue roller)	Surface package imported EPDM
13	Scraper intermittent height adjustment	Manual
14	Single machine head position	Installation and operation in front of oven

2.3 Oven

No.	Item	Technical parameters	Note
1	Oven structure	Single layer independent heating, up and down configuration
2	Oven length	1 meter/section
3	Material	SUS304 stainless steel liner 1.0mm, external bile 1.2mm
4	Temperature control	Divided into normal working temperature control, over-temperature monitoring alarm protection control and cut off the heating main power. all sections are completely independent control
5	Heating method	Electric heating, hot air circulation structure
6	Single oven heating power	5KW
7	Oven internal temperature	Max120℃ Single section oven internal temperature difference≤5℃
8	Blowing method	Upper and down blowing, upper and down wind chamber shared heating body
9	Tuyere structure	The tuyere groove using a special mold slotted
10	Fan control	Contactor control
11	Heating	Solid-state relay
12	Fan material	SUS304 stainless steel
13	Solvent recovery system	Optional

2.4 Winding mechanism

No.	Item	Technical parameters	Note
1	Correction	Installed at the exit of the oven
2	Tension	Automatic constant tension control
3	Installation structure method	Steel frame firmly installed
4	Number of winding inflatable shaft	1 pcs	One-armed winding

2.5 Control system

No.	Item	Technical parameters	Note
1	Main control system	Touch screen, PLC, servo system
2	Running mode	Manual, automatic, emergency stop, front and back of the whole machine can operate
4	Alarm	When the device fails, the touch screen will display the corresponding correction screen

2.6 Equipment accuracy

No.	Item	Technical parameters	Note
1	Scraper	Round beating≤±1.5um, Ra0.4, straightness≤±1.5um
2	Coating roller(steel roller)	Round beating≤±1 .5um, Ra0.4 straightness≤±1.5um
3	Glue roller	Round beating≤10um, straightness≤10um
4	Correction error	±0.2mm
