Battery Voltage Internal Resistance Tester Battery For All kinds of Batteries
- 200.00 set
| Weight: | 2kg; | Warranty: | One Year limited warranty with lifetime support; |
| Selling Units: | Single item; | Single gross weight: | 3.0 KG; |
| Voltage test V2: | 0-29.99V; | Resistance test R2: | 1-2000 mΩ; |
| Place of Origin: | Fujian China; | Single package size: | 26X21X11 cm; |
| Voltage test V1: | 0-4.999V; | Power: | 10-30W; |
| Brand Name: | TOB; | Resistance test R1: | 0.1-200 mΩ; |
| Packaging Detail: | Packaging Details: inside foam cotton collision avoidance, outside standard export wooden case.; | Source voltage: | AC110V-240V, 50/60HZ; |
| Product name: | Internal Resistance Tester Battery; | Dimension: | 250*190*90mm; |
| Model Number: | TOB-R-203; |

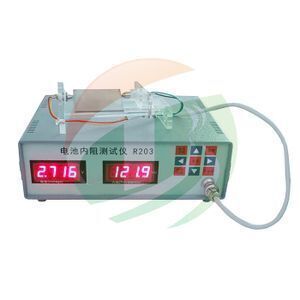

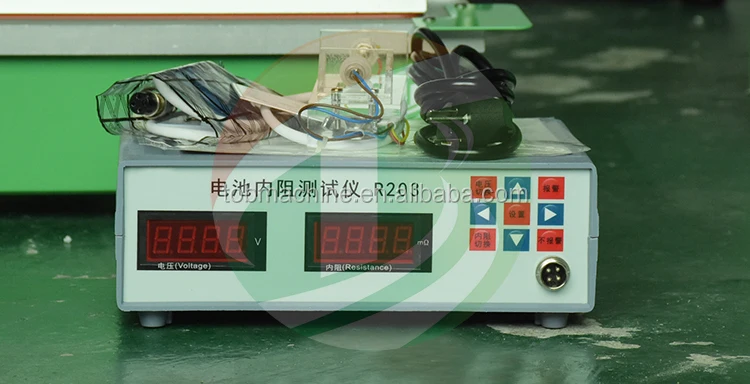

Battery Voltage Internal Resistance Tester Battery For All Kinds of Batteries
1 Usually the smaller resistance for the battery or battery core, the higher quality for the battery.
So testing battery resistance is a rapid and accurate method to check battery performance.
2 TOB-R203 Battery internal resistance tester adopts four line acquisition method, can test the resistance or impedance with or without power supply.
3 This battery internal resistance tester is widely used for battery manufacture and battery sellers to check the battery performance.
Machine model | Battery internal resistance tester TOB-R-203 |
Source voltage | AC110V-240V, 50/60HZ |
Power | 10-30W |
Testing speed | 100ms |
Advantages | Can connect with computer Suitable varies kinds battery and battery core Buzzer alarm |
Voltage test V1 | Voltage range : 0-4.999V |
Minimum resolution : 0.001V | |
Accuracy : ±0.002V | |
Voltage test V2 | Voltage range : 0-29.99V |
Minimum resolution : 0.01V | |
Accuracy : ±0.01V | |
Resistance test R1 | Resistance range : 0.1—200 mΩ |
Minimum resolution : 0.1mΩ | |
Accuracy : ±0.5 mΩ | |
Resistance test R2 | Resistance range :1—2000 mΩ |
Minimum resolution : 1mΩ | |
Accuracy : ±2 mΩ | |
Suitable batteries | Lithium battery, lithium pouch cell(Lithium polymer battery), Nickel metal hydride, nickel cadmium battery, lead-acid battery and so on. |
Dimension | 250*190*90mm |
Weight | 2kg |
Warranty | One Year limited warranty with lifetime support |

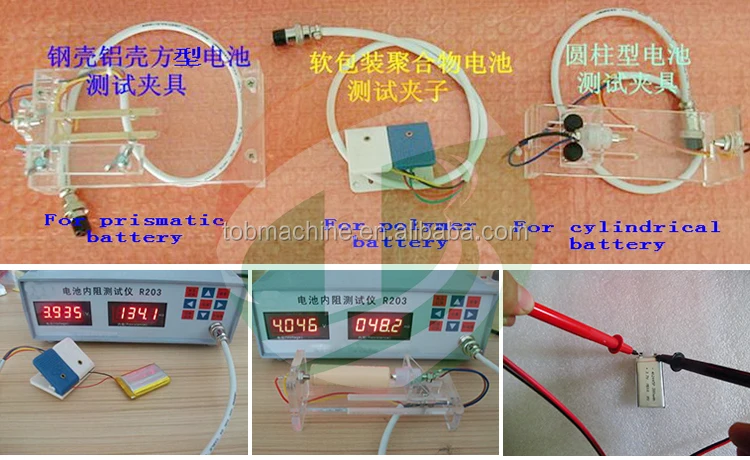

Four Kinds of Clamp for you to choose
Packing Detail
You May Like
1.TOB-FX-10, Cylinderical cell voltage and internal resisatance tester

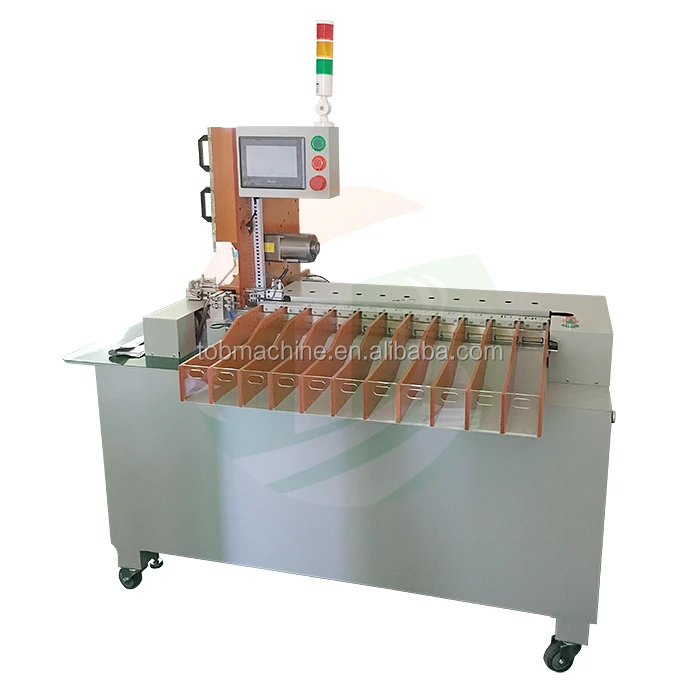

Auto Battery Sorting Machine

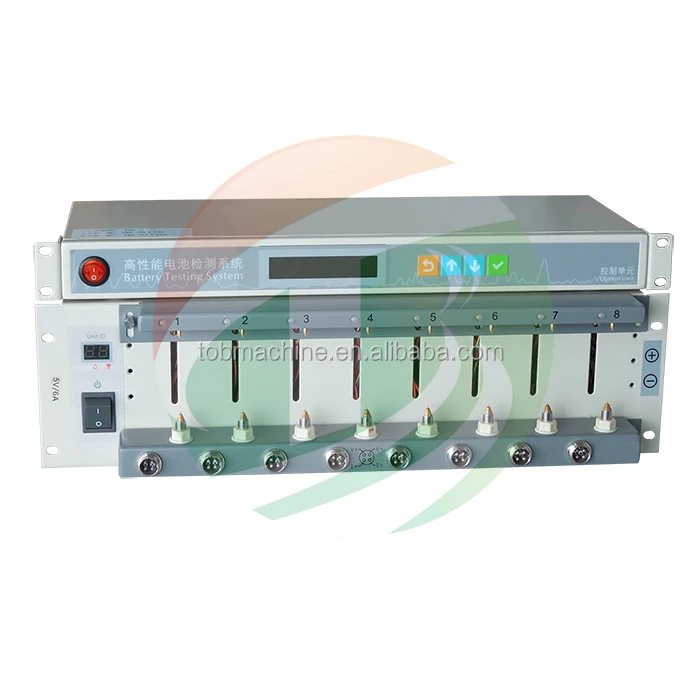

2. TOB-CT4008-5V6A-S1 5V6A Battery Tester For Both Cylinderical and Pouch Cell
