Model

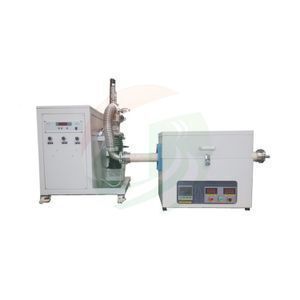

TOB-G1200-250 Tube Furnace

Voltage

AC 220V

Heating power

7KW

Furnace tube size

Dia 250*1000mm

Furnace tube material

Custom quartz tube

Heating zone

400mm

Constant temperature zone

200mm

Furnace layout

Extreme working temperature

1200℃

Long-term working temperature

1100℃

Heating stuff

KANTHAL Nichrome wire

Heating rate

1-20℃/min adjustable

Recommended heating rate

5-8℃/min temperature rate

Temperature control accuracy

±1℃

Passible atmosphere

Various inert atmospheres such as nitrogen and argon

Temperature measuring element and temperature range

K thermocouple, temperature range 0-1200 ℃, thermocouple close proximity (contact) tube outer wall, can reduce the external temperature to normal temperature and make the inner cavity temperature distribution even.

Original electrical appliance

Partial selection of Schneider imported brands

Instrument control

Yudian GP518P

Sealing component

Custom flange

Vacuum system (optional)

Low vacuum 200- 2000pa

High vacuum 6.67x10-3pa

 Flow meter (optional)

0-500ml/min

Control method

Control mode: Adopt automatic control system, it can run automatically after setting the program from room temperature to set temperature. The system is controlled by thyristor, the temperature control system is modular in design, the structure is simple, and the maintenance is convenient. Yudian instrument, imported thyristor control, programmable 31-segment, multi-segment power limit function, multi-group PID parameter self-tuning function, freely set constant temperature and heat preservation curve, no interference switching function, instrument with temperature correction and compensation Features.

Number of programmed curve segments

31 segments are adjustable to reduce unnecessary troubles caused by artificial settings.

Display accuracy

±1℃

Digital display

Measuring temperature, setting temperature double display

Control features

Control system modular structure, long life design of key components of the equipment, simple and reliable process, good stability and high precision.

Air cooling system

The fan impeller is mounted directly on the bottom of the double furnace shell and assembled with the control system. When the sintering furnace is heated, air cooling can reduce the surface temperature of the furnace shell and protect the heat of the electric appliance, and the personnel operation is safer and the efficiency is improved.

Refractory

The lining is made of high-quality high-purity alumina fiber, vacuum-formed fiber-reinforced light-weight board material, light-weight hollow-balloon alumina board, high temperature, low heat storage, resistance to rapid heat and cold, no cracks, no slag, good insulation performance ( The energy saving effect is more than 80% of the old electric furnace). The double-furnace structure patent is a patented feature that not only heats up quickly, but also has durability and long-term use without collapse.

Insulation Materials

High-quality alumina multi-fiber insulation material, insulation layer is 150mm.

shell

The furnace shell is made of steel plate and profile welded, and the outer casing is equipped with a removable protective plate. The protective plate is electrostatically sprayed and painted. Fine workmanship and beautiful appearance.

Furnace structure

Double-layer furnace shell structure, air-cooled circulation, reducing the temperature of the shell. The surface temperature of the shell is < 60 degrees.

The surface of the inner furnace is coated with a high-temperature alumina coating to increase the heating efficiency of the equipment and to extend the life of the instrument.

Energy saving performance

Light weight, fast heating, energy saving of more than 50%, saving time and effort.

Random spare parts

One copy of the manual, one certificate, tongs, high temperature gloves
