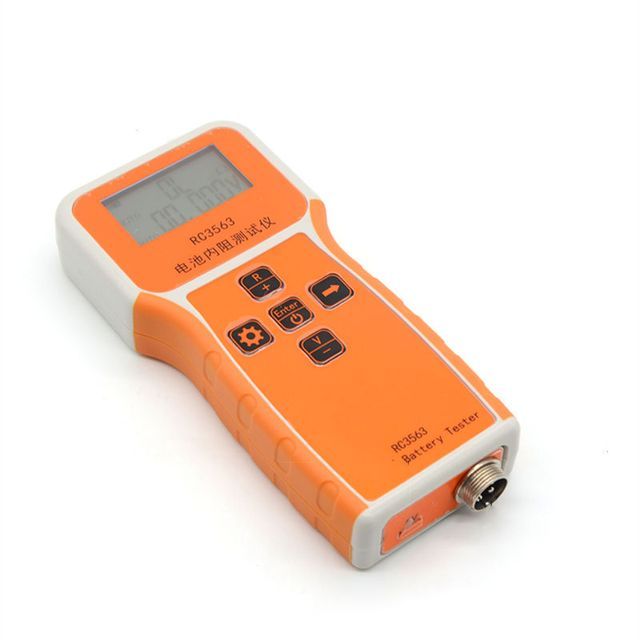

RC3563 battery internal resistance tester internal resistance tester true four-wire AC lithium-nickel-chromium battery tester

Supplier: Huizhou Chensheng Industrial Co., Ltd.
Region: Guangdong, China
Contact: Ms Seven Lee
Price: $40.00 /piece
Min. Order: 1 piece

Click here to contact

Product details

product name:	Battery internal resistance tester	Voltage measurement:	0-28v
Battery Type:	lithium polymer	payment terms:	wire transfer
OEM/Design Manufacturer:	acceptable	Package preview:
application:	household appliances,	Origin:	China
MOQ:	1 sample	Warranty:	3 years
model:	RC3563	Internal Impedance:	0-200Ω
brand:	CS	Packaging Details:	Styrofoam, carton, pallet

Product Description

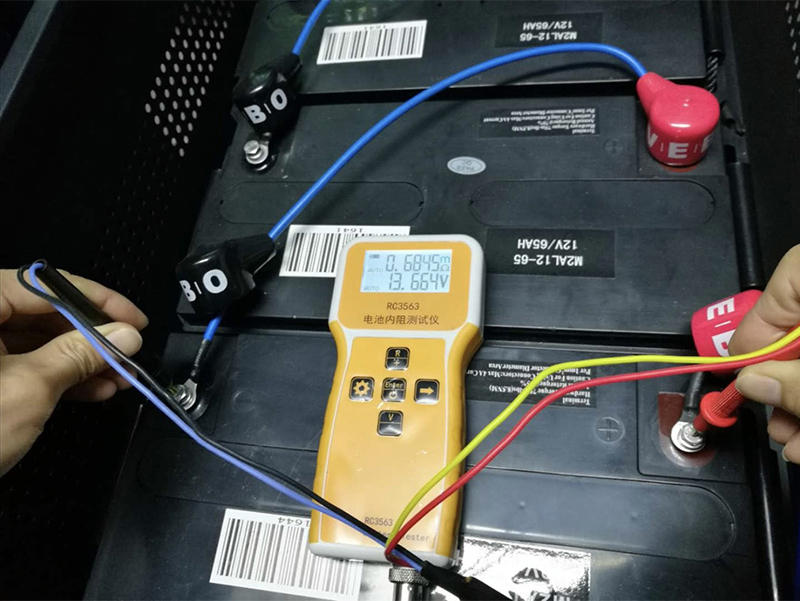

RC3563 battery internal resistance tester, true four-wire AC internal resistance sorter lead-acid lithium battery UPS test. It supports serial port and computer software. If you need to use a computer, please contact us to obtain the software.

feature

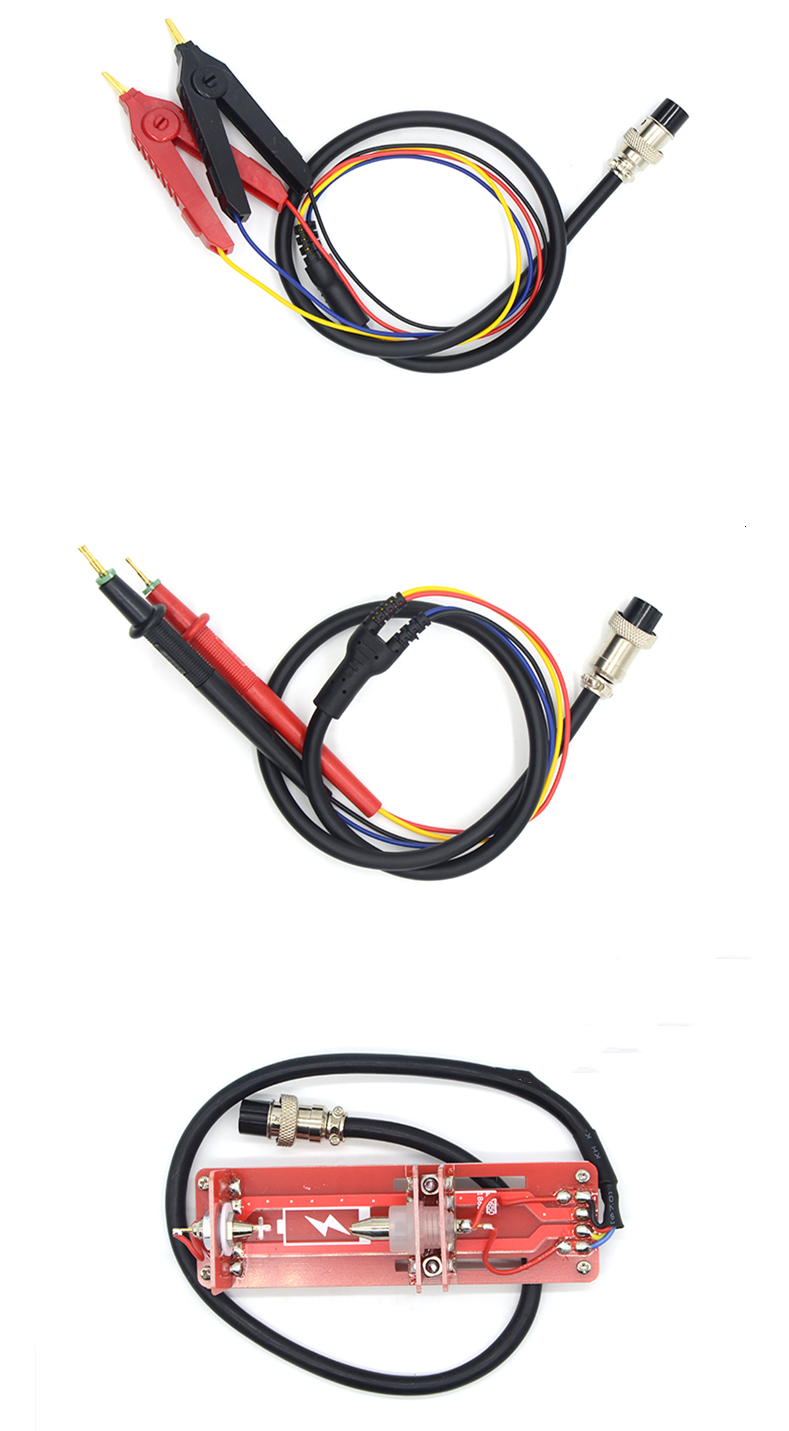

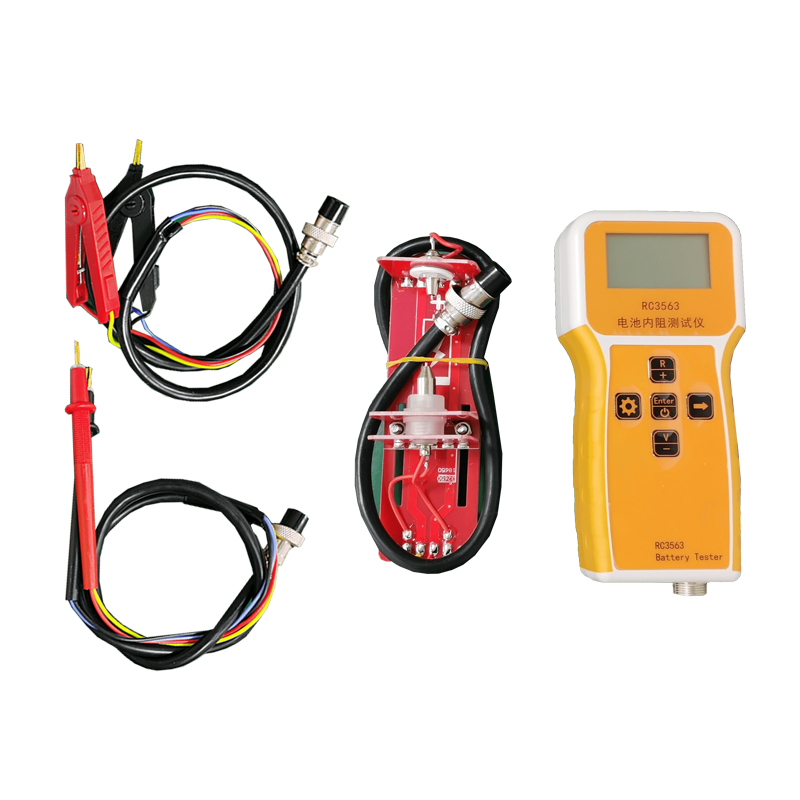

The battery internal resistance tester can measure the internal resistance and voltage of the battery at the same time. Using the Kelvin four-wire test clip can better avoid the influence of contact resistance and wire resistance, and can perform more accurate measurements.

This product adopts intelligent control, liquid crystal display, and implants Kalman filter mathematical algorithm. It has the advantages of high precision, high efficiency, low cost, light weight, energy saving and environmental protection. Built-in 1000mAh lithium battery, 5V charging, Android mobile phone charger can be used, very convenient.

This product is widely used in various battery production, maintenance, testing, scientific research laboratories and other occasions. It can also be used to measure the AC resistance of capacitors and low-value high-precision resistors.

scope

Test parameters: AC resistance, DC voltage

measurement accuracy:
Resistance: 0.5%
Voltage: 0.5%

Measuring range:
Resistance: 0.001mohm ~ 200Ω
Voltage: 0.001V～±100VDC

signal source;
Frequency: AC 1kHz
Current: 2mΩ/20mΩ range 50mA; 200mΩ/2Ω range 5mA; 20Ω/200Ω

Range 0.5 mA Range:
6-speed automatic and manual
3-speed automatic and manual

Test speed: 5 times/second

correct:
Resistance: Each range is manually calibrated separately without interfering with each other
Voltage: Each range is manually calibrated independently without affecting each other

Factory settings:
Save the factory information and restore the factory state with one key

Energy saving settings:
The delay is about 10 minutes, and it will automatically shut down without any operation

Scope of application:

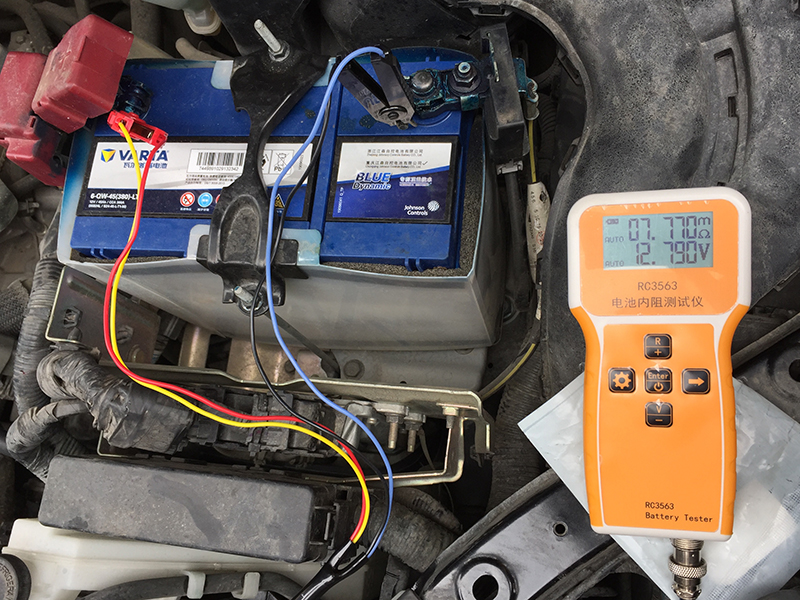

Cell phone, computer, electric vehicle battery maintenance, battery factory inspection and testing

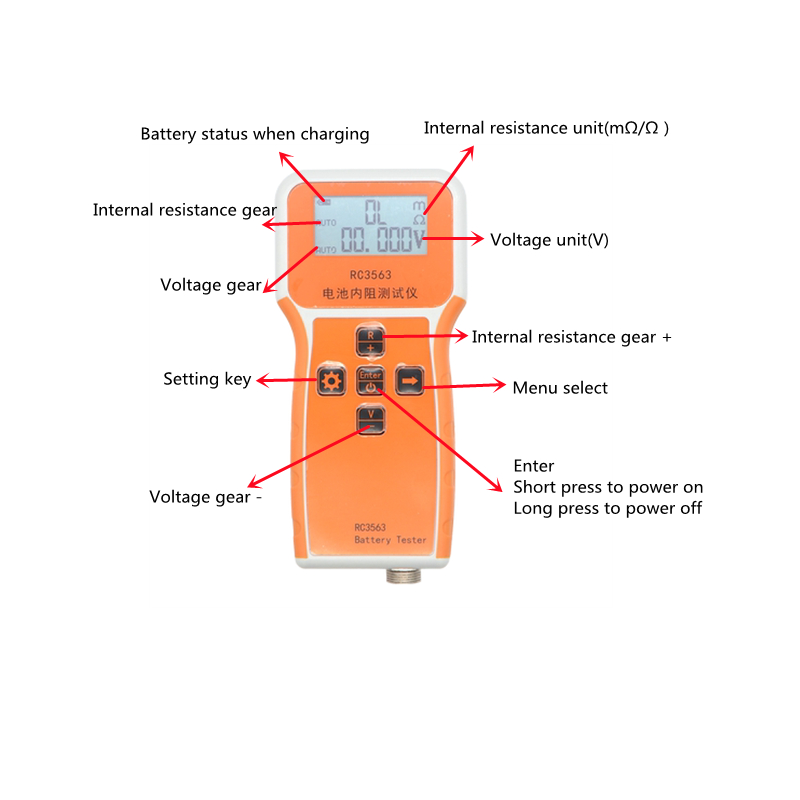

Display result: liquid crystal display

Power supply: built-in lithium battery, with 5V/1A charger

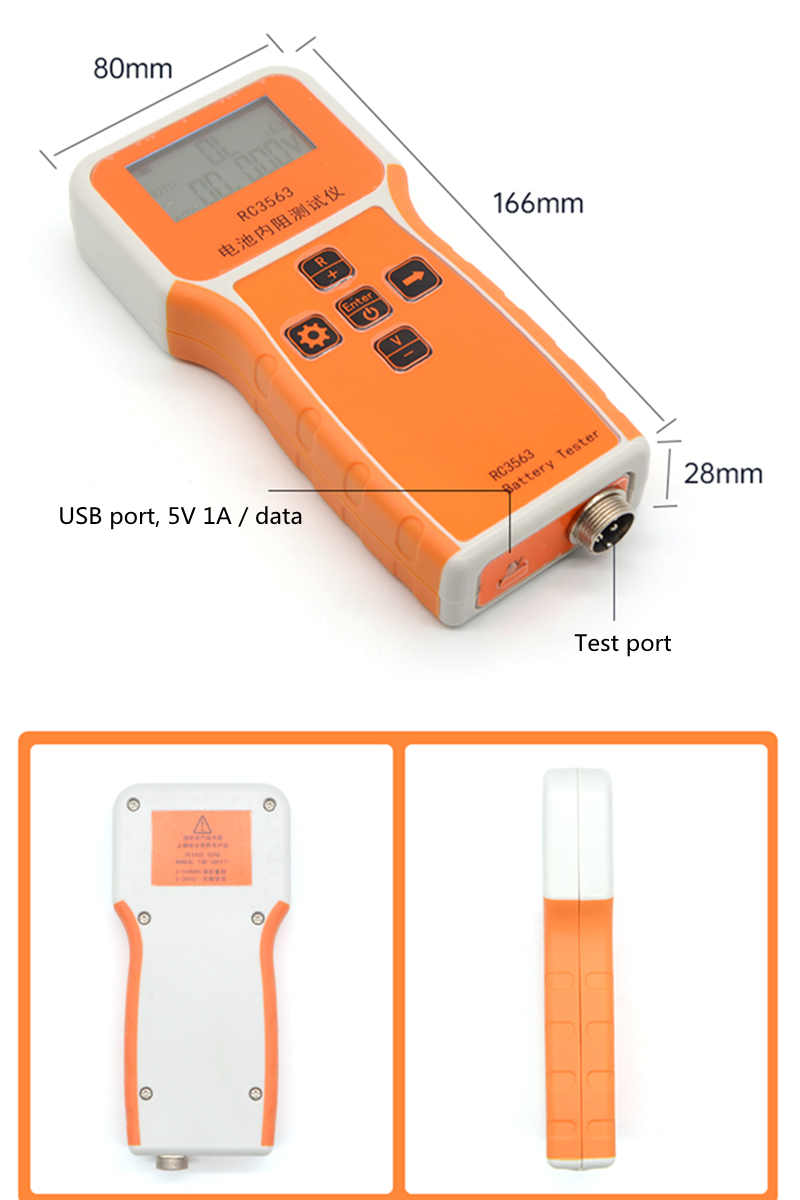

Size: 166*80*28mm (length*width*height)

Language: English/Chinese
