Rubber Calender/Three Roll Calender/Four Roll Calender for Rubber Coating
- 10000.00 set
| type: | Rubber calender | Dimensions (L*W*H): | According to the machine |
| After-sales service provided: | Engineers available to repair machinery overseas | Warranty: | 12 months |
| Packaging Details: | Plastic film packed in container | Rubber calender: | Three Roller Rubber Calender |
| brand: | mixer | payment terms: | L/C, T/T, Western Union |
| strength: | 40 kW | Voltage: | 220V/380V/415V/440V |
| Origin: | Jiangsu, China | weight: | 11600 kg |
| port: | Shanghai | Health status: | new |
| Supply capacity: | 10 sets per month | Certification: | EU CE, ISO |

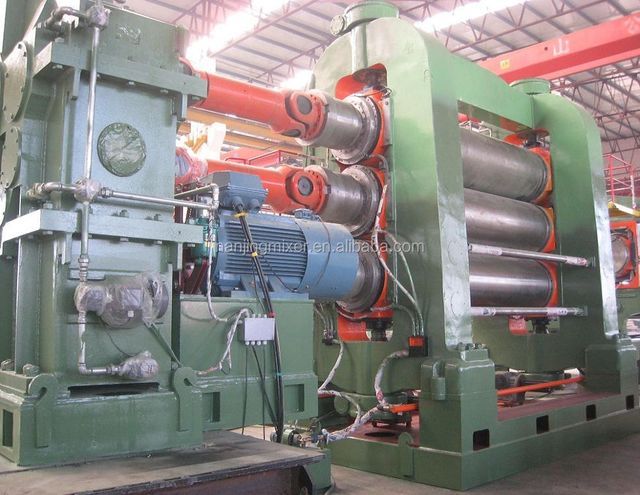

Rubber Calender/Three Roll Calender/Four Roll Calender for Rubber Coating
Scope of application This three-roll calender is mainly used for single-sided continuous coating of rubber sheets for cords, fabrics, and other braided materials. Structural features 1. The roller is made of chilled cast iron alloy, the surface is cold ground, hard and wear-resistant; the roller circumference is drilled, and the heating and cooling effects are good. 2. A single motor drives each calender. There are friction gears at both ends of the rollers of the three calenders. The speed ratio can be adjusted through the pull key to meet different process requirements. 3. In order to ensure the precision of rolled products, there are shaft passing devices, pull-back devices, and pre-bending devices. 4. The machine is equipped with emergency stop devices to protect operators and equipment. 5. Driven by a DC motor, the digital speed control device is used as the driver to ensure the stability of the output torque.
Model | Roller Diameter×Length(mm) | Middle roller serif speed(m/min) | Calendering thickness (mm) | Calendering width(mm) | Motor power(kW) | Dimensions (length × width × height) (mm) | Weight (tons) |
XY-3I(F)1120 | 360x1120 | 7.5~22.5 | ≥0.20 | 900 | 40 | 6050x1660x2330 | 11.6 |
XY-3I(F)1400 | 400x1400 | 8.8~26.39 | ≥0.20 | 1200 | 55 | 5600x1410x2385 | 15 |
XY-3I(F)1450 | 450x1450 | 2.5~25 | ≥0.20 | 1225 | 75 | 5850x1920x2870 | Chapter 252 |
XY-3I(F)1600 | 510x1600 | 2.5~25 | ≥0.20 | 800 | 37x4 | 6025x3300x3800 | 30 |
XY-3I(F)1730 | 610x1730 | 4.5~45 | ≥0.20 | 800 | 37x4 | 6025x3300x3800 | 33 |
XY-3F2540 | 820x2540 | 3~30 | ≥0.20 | 2200 | 75x2 90x2 | 10195x3340x5820 | 133 |
XY-3F3400A | 900x3400 | 3~35 | ≥0.20 | 3100 | 160 | 7900x4500x5680 | 102 |
We are a professional rubber machinery manufacturer and exporter, welcome to contact us.
