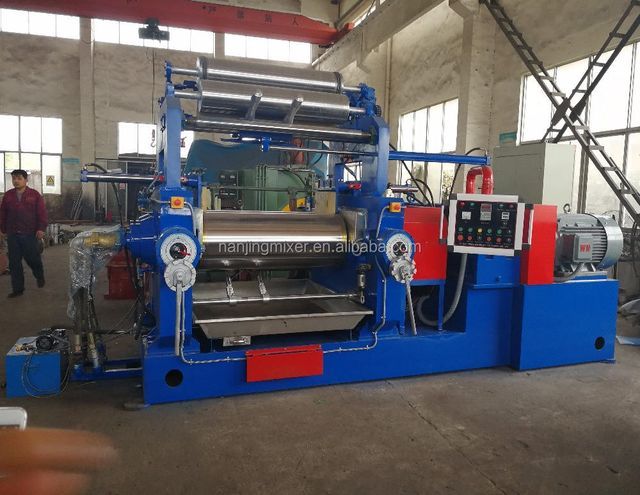

CE standard two-roll rubber mixing machine

Supplier: Nanjing Mixer Rubber And Plastic Machinery Co., Ltd.
Region: Jiangsu, China
Contact: Mr Jackie Ji
Price: $20000.00 /set
Min. Order: 1 set

Click here to contact

Product details

type:	open mixer	After Warranty Service:	Video technical support, online support, spare parts, on-site maintenance and repair services
Dimensions (LWH):	5570x1900X1750mm	Core component warranty:	1 year
Video outbound inspection:	if	payment terms:	L/C, T/T, Western Union
Marketing Type:	normal product	weight:	11500
Coil Length(mm):	1200 mm	Applicable industries:	manufacturing plant
Local service locations:	Malaysia, Türkiye	Power (watts):	55 kW
Mechanical test report:	if	Main selling points:	long lasting
Supply capacity:	20 sets per month	Packaging Details:	Plastic film packed in container
Roll ratio (front/rear):	1.27	Showroom location:	turkey
Voltage:	380V, 220V, 440V, 480V	Power (kW):	55
Coil diameter(mm):	450 mm	Warranty:	1 year
application:	rubber mixing	Health status:	new
Certification:	CE	After-sales service provided:	Engineers can repair machinery overseas, on-site maintenance and repair services, video technical support, on-site installation, commissioning and training, online support
cooling method:	water	Origin:	Jiangsu, China
brand:	mixer	Weight (kg):	11500 kg
Core components:	Bearings, gearboxes, motors, gears	port:	Shanghai

Product Description

The rubber mill is used for rubber and plastic mixing and tableting.

feature:

· Tailor-made structure, stable performance and convenient operation.

· There are a variety of speeds and fractionation ratios to choose from, which can meet the formulation and processing requirements of most customers.

· The frame, frame cover and base are all welded and treated with stress relief annealing, which is beautiful and elegant.

· Chilled alloy cast iron rollers are wear-resistant and have a long service life.

· The reducer is a grade 6 precision hardened gear reducer with long service life and low noise.

· Perfect emergency stop device to ensure the safety of personnel and equipment.

·Specially designed sealing structure prevents lubricating oil from leaking.

· With a mobile device, the soup tray is easy to clean.

· Humanized design of the operating system reduces labor intensity.

· Modular structure, providing various structures for customers to choose.

· The flexible design system can meet the special design requirements of customers in the shortest time.

· After assembly, the equipment will be put into load test run in our company to save debugging time for customers.

Technical specifications and models:

Model		X(S)K-160	X(S)K -250	X(S)K-360	X(S)K-400	X(S)K-450	X(S)K-550	X(S)K-660
Roll diameter		160	250	360	400	450	550	660
Reel working length		320	620	900	1000	1200	1500	2130
Front roller working speed		8.95	14.9	17.4	19.3	23.1	28.6	30
Volume ratio		1:1.35	1:1.1	1:1.27	1:1.27	1:1.27	1:1.29	1:1.05
Maximum clearance(mm)		5	8	10	10	10	15	15
Nip adjustment method		manual	manual	manual	manual or electric	manual or electric	manual or electric	electrical
Batch capacity (Kg)		1-2	10-15 days	20-15 days	25-35	30-50	50-60	120-140
engine	strength	5.5	15	30	45	55	90/110	180
engine	Motor speed (rev/min)	1440	Chapter 730	980	Chapter 740	980	Chapter 740	Chapter 740
reducer		Fully enclosed hardened gear reducer
Reduction ratio		43	35	49.7	38	47.2	35.6	126.2
Dimensions (mm)		1120x920x1295	3400x1270x1620	4140x1770x1700	4490x1700x1750	5570x1900x1750	6290x2330x1780	7500x2630x2060
Weight (kg)		1100	4200	7600	9000	11500	20000	26500
