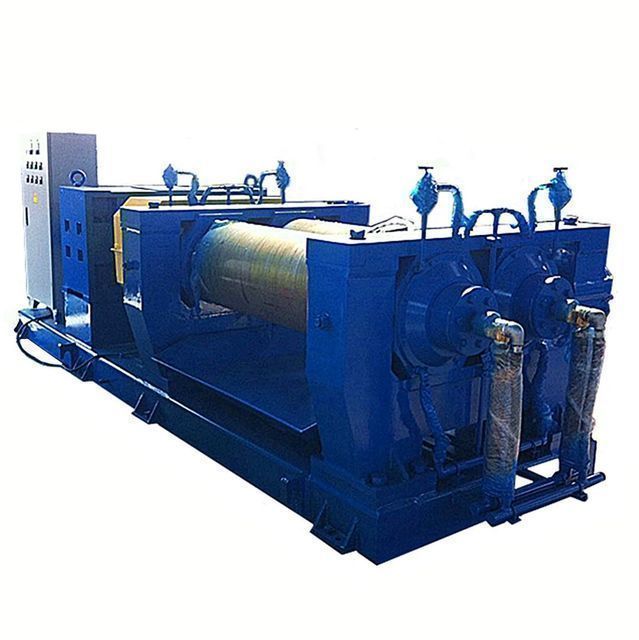

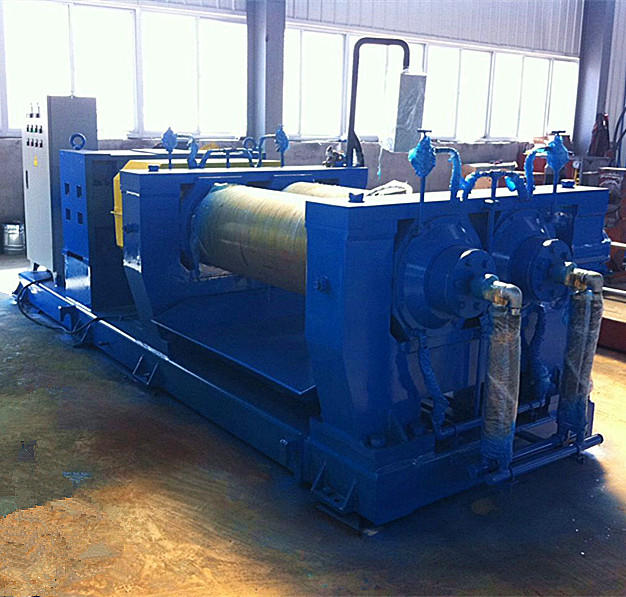

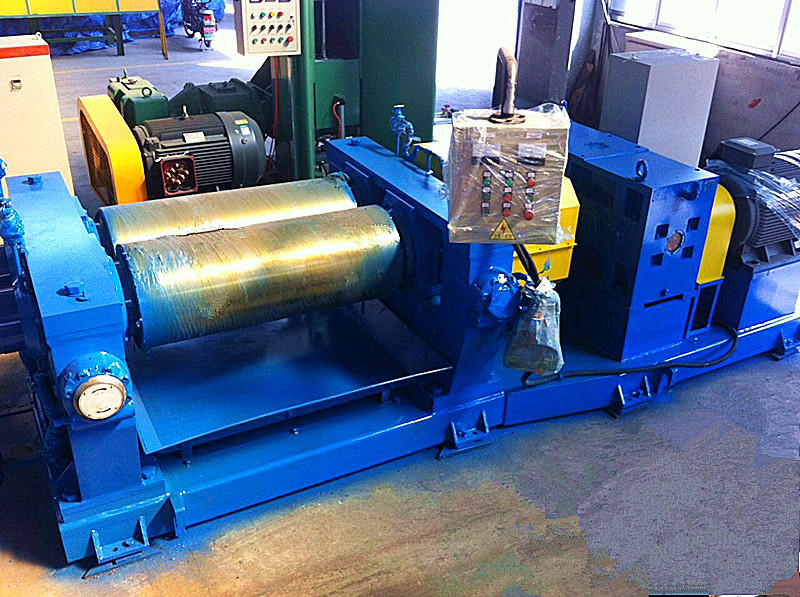

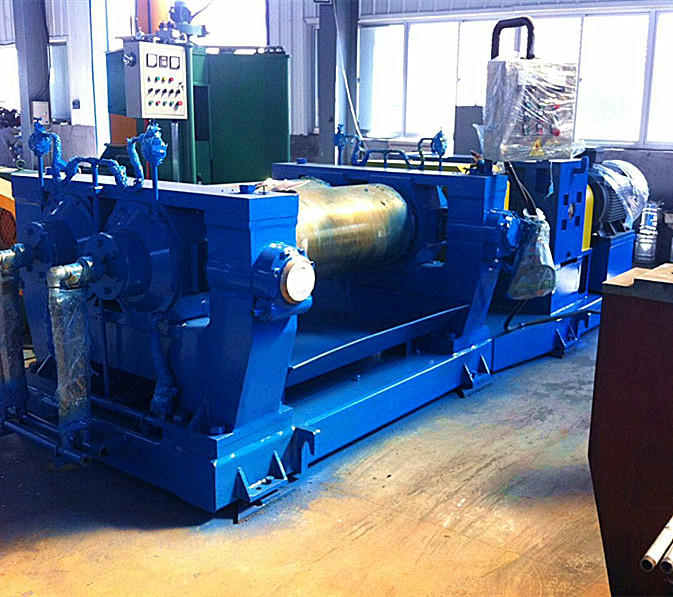

New Double Roller Rubber Mixing Machine

Supplier: Qingdao Shun Cheong Rubber Machinery Manufacturing Co., Ltd.
Region: Shandong, China
Contact: Mr Jake Chen
Price: $5000.00 /set
Min. Order: 1 set

Click here to contact

Product details

Certification:	ISO9001:2008/CE/SGS	brand:	Securities Regulatory Commission
Voltage:	380V	Core components:	PLC, pressure vessel, gear
Main selling points:	competitive price	Core component warranty:	1 year
State of health:	new	Applicable industries:	rubber
Dimensions (LWH):	7500mm3500mm1800mm	Control type:	CNC
After warranty service:	Video Technical Support	Package preview:
Weight (kg):	3500 kg	payment terms:	L/C, T/T
Types of:	Open mill	cooling method:	Recycled water
Video shipment inspection:	if	Marketing Type:	hot product
Customized service:	Support customization	Reel Diameter(mm):	710mm
Coil Length(mm):	2200mm	Mechanical test report:	if
year:	customized	Motor power (kW):	280
Front roller surface speed (M/Min):	30	Front roller speed (rpm):	30 - 31 rpm
Warranty:	1 year	place of origin; place of origin:	Shandong China
port:	Qingdao, China	Roll working diameter (mm):	710
Power (kW):	280	Packaging Details:	wooden box
General rubber machinery type:	material processing machine	Showroom location:	not any
Roll ratio (front/rear):	1:1.09	Supply capacity:	15 sets per month
Friction ratio:	1:1.09

Product Description

Specification

thing	value
Reel Diameter(mm)	710mm
Front roller speed(rpm)	30rpm - 31rpm
Coil Length(mm)	2200mm
Roll ratio (front/rear)	1:1.09
Video shipment inspection	if
Mechanical inspection report	if
marketing type	hot product
Core component warranty	1 year
core components	PLC, pressure vessel, gear
cooling method	Recycled water
State of health	new
place of origin; place of origin	China
	Shandong
brand	Securities Regulatory Commission
Voltage	380V
Dimensions (LWH)	7500mm3500mm1800mm
certified	ISO9001:2015/CE/SGS
year	customized
Warranty	1 year
	On-site maintenance and repair services, video technical support
main selling point	competitive price
Power (kW)	280
Weight (kg)	3500KG
After Warranty Service	Video Technical Support
local service point	not any
Applicable industry	rubber
Showroom location	not any
After-sales service	Video Technical Support
Types of	Open mill
General rubber machinery type	material processing machine
Roll working diameter(mm)	710
Front roller surface speed (M/Min)	30
control type	CNC
Motor power (KW)	280
friction ratio	1:1.09
Lubrication type	Automatic thin oil lubrication
Customized service	Support customization

Detailed description

1. Roller: chilled alloy cast iron roll with a surface hardness of 68~72HS. Rolls are mirror polished and polished, properly ground, and hollowed out for cooling or heating.

2. Roll Gap Adjustment Device: Nip adjustment at both roll ends is done manually using two separate screws attached to the main body of the brass housing.

3. Roll Cooling: Universal swivel joint with inner nozzle with hose and header. The plumbing is complete up to the end of the water supply line.

4. Journal Bearing Box: Heavy duty cast steel box with anti-friction roller bearings.

5. Lubrication: Fully automatic grease lubrication pump for anti-friction roller bearings mounted in dust-proof housings.

6. Bracket Frame and Apron: Heavy duty steel casting.

7. Gearbox: Hard tooth surface reducer, Guomao brand.

8. Bottom frame: Heavy-duty common bottom frame, steel channel and MS plate are precision-processed and manufactured, and the whole machine is equipped with a gearbox and a motor.

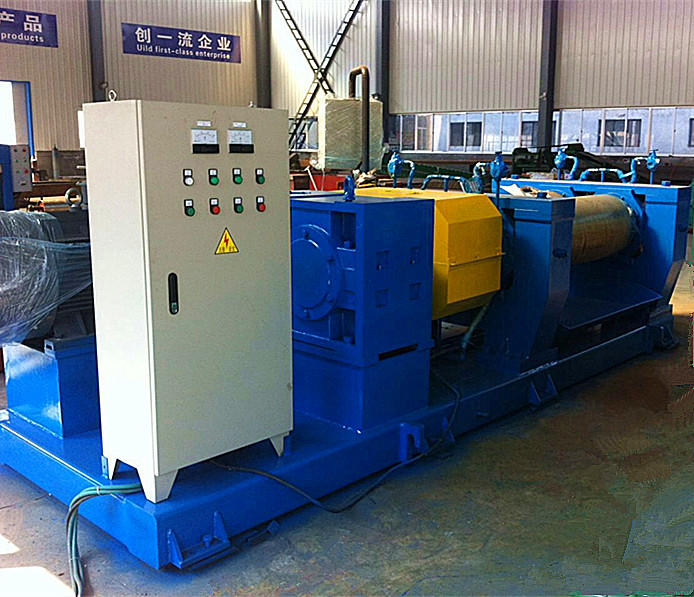

9. Electrical panel: Star-delta electrical operation panel with automatic reversing, voltmeter, ammeter, overload protection relay, three-phase indicator light and emergency stop switch.

Notable features

1. Excellent mixing performance.
2. Low operating cost and high productivity.
3. Compact structure, maximum floor utilization.
4. The latest technology update, in line with current world standards.
5. Reliable and experienced service support.
6. Easy to install and ready to run.
7. There is no need for continuous lubrication, so the cost of lubrication, wear and maintenance is greatly saved.
8. Simple and easy to maintain.

feature

1. Roller material: chilled alloy cast iron
2. Roller hardness: 68-75 HRC
3. Gear material hardness: 65-70 HRC
4. Cooling system: water cooling
5. Control mode: manual or automatic optional
6. Compact structure, low noise
7. Provide different types of reducers
